Toyota Solara

2003-07 → 2008-12 · chassis ACV30,MCV31 · catalogue 286420 · United States

Supported model Data version 2008-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Luggage Compartment Door & Lock

22 part groups · 2 illustrations

Illustrations

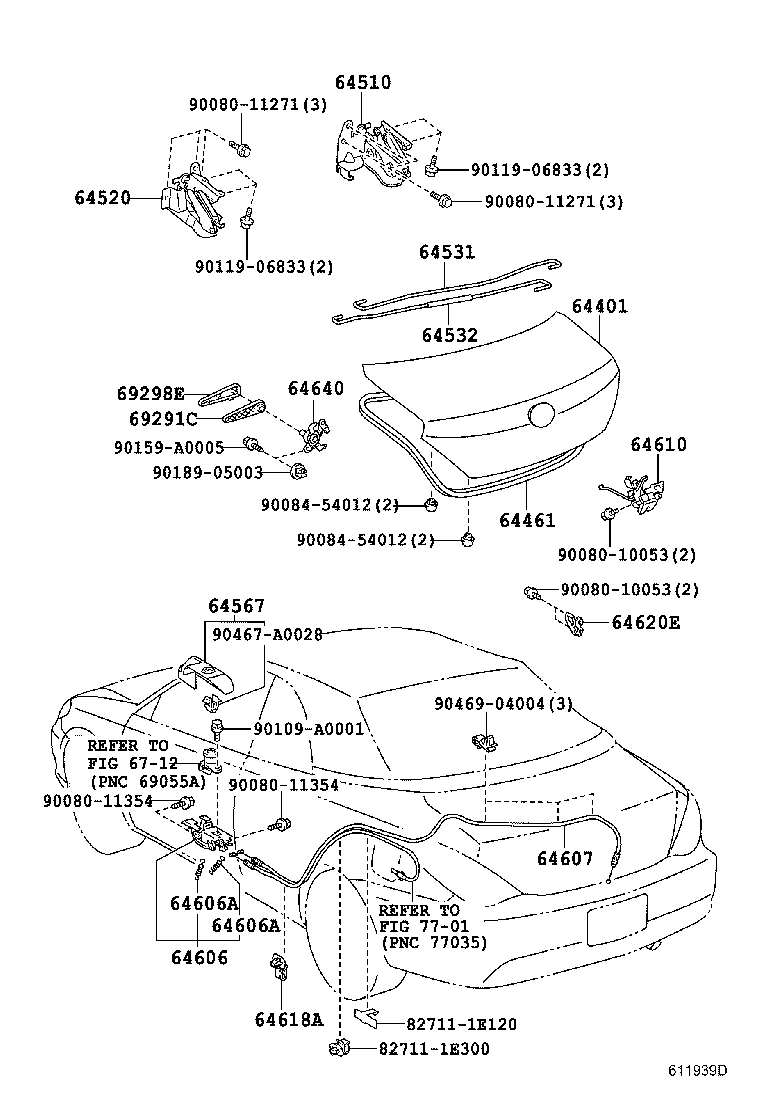

Figure 611836E 611836E 2003-07 → — Figure 611939D 611939D 2004-02 → —

Part groups

PNCDescription
64401 Panel Sub-assy, Luggage Compartment Door
64461 Weatherstrip, Luggage Compartment Door
64503 Arm Sub-assy, Luggage Compartment Door Hinge, RH
64504 Arm Sub-assy, Luggage Compartment Door Hinge, LH
64510 Hinge Assy, Luggage Compartment Door, RH
64511 Support, Luggage Compartment Door Hinge, RH
64512 Support, Luggage Compartment Door Hinge, LH
64520 Hinge Assy, Luggage Compartment Door, LH
64531 Bar, Luggage Door Hinge Torsion, RH
64532 Bar, Luggage Door Hinge Torsion, LH
64559 Pin, Luggage Door Hinge
64567 Bezel, Luggage Door Lock Open
64606 Lever Sub-assy, Luggage Door Lock Open
64606A Spring, Tension(FOR LUGGAGE DOOR LOCK OPEN LEVER)
64607 Cable Sub-assy, Luggage Door Lock Control
64610 Lock Assy, Luggage Compartment Door
64618A Clamp, Luggage Lock Control Cable
64620E Striker Assy, Luggage Compartment Door
64640 Opener Assy, Luggage Door Lock
67481D Seal, Luggage Torsion Bar
69291C Handle, Luggage Compartment Door, Inside
69298E Cover, Luggage Component Door Inside Handle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
