Toyota Solara
2003-07 → 2008-12 · chassis ACV30,MCV31 · catalogue 286420 · United States
Supported model
Data version 2008-11

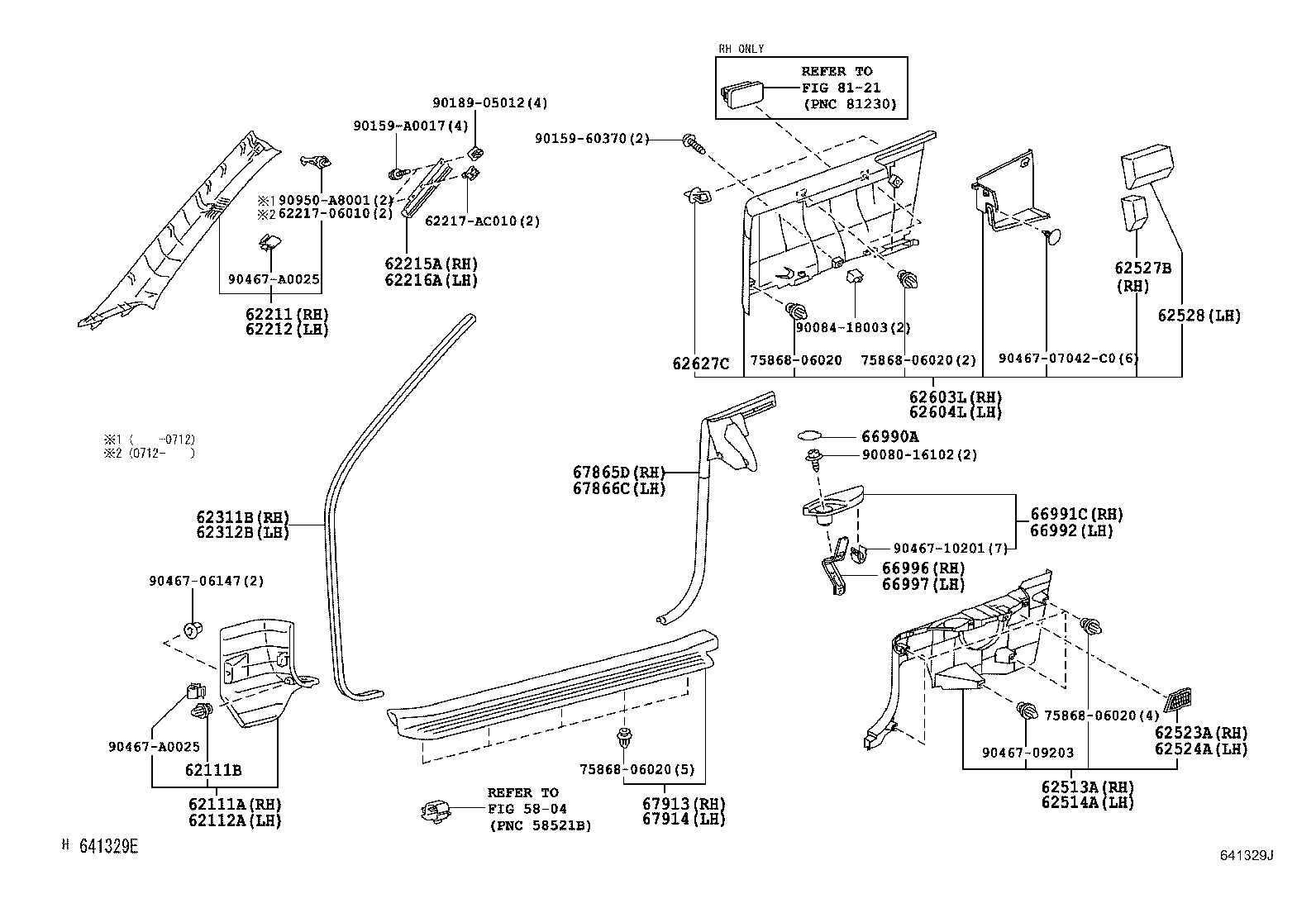

Inside Trim Board & Door Opening Trim Moulding
46 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62111A | Trim Sub-assy, Cowl Side, RH |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62112A | Trim Sub-assy, Cowl Side, LH |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62215A | Insert, Front Pillar Garnish, RH |
| 62216A | Insert, Front Pillar Garnish, LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62315E | Weatherstrip, Front Door Opening Trim, Rear RH |
| 62316C | Weatherstrip, Front Door Opening Trim, Rear LH |
| 62381B | Weatherstrip, Roof Side Rail, RH |
| 62382B | Weatherstrip, Roof Side Rail, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62417F | Pad, Center Pillar Garnish, RH |
| 62418A | Pad, Center Pillar Garnish, LH |
| 62470A | Garnish Assy, Roof Side, Inner RH |
| 62480A | Garnish Assy, Roof Side, Inner LH |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62513A | Panel, Quarter Trim, Lower RH |
| 62514A | Panel, Quarter Trim, Lower LH |
| 62520P | Panel Assy, Quarter Trim, Front LH |
| 62523A | Cover, Quarter Trim, Lower RH |
| 62524A | Cover, Quarter Trim, Lower LH |
| 62527B | Pad, Quarter Trim |
| 62528 | Pad, Quarter Trim, Lower LH |
| 62603L | Panel Sub-assy, Quarter Trim, Upper RH |
| 62604L | Panel Sub-assy, Quarter Trim, Upper LH |
| 62627C | Cover, Side Trim, NO.1 |
| 62630Q | Clip (FOR QUARTER TRIM) |
| 62635A | Panel, Quarter Trim, Upper RH |
| 62636A | Panel, Quarter Trim, Upper LH |
| 66990A | Holder Assy, Cup |
| 66991C | Holder, Cup, NO.1 |
| 66992 | Holder, Cup, NO.2 |
| 66996 | Bracket, Cup Holder, NO.1 |
| 66997 | Bracket, Cup Holder, NO.2 |
| 67865D | Weatherstrip, Center Pillar Upper End, RH |
| 67866C | Weatherstrip, Center Pillar Upper End, LH |
| 67869C | Clip, Roof Side Rail Weatherstrip |
| 67869H | Clip, Roof Side Rail Weatherstrip |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
