Toyota Solara

2003-07 → 2008-12 · chassis ACV30,MCV31 · catalogue 286420 · United States

Supported model Data version 2008-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

30 part groups · 2 illustrations

Illustrations

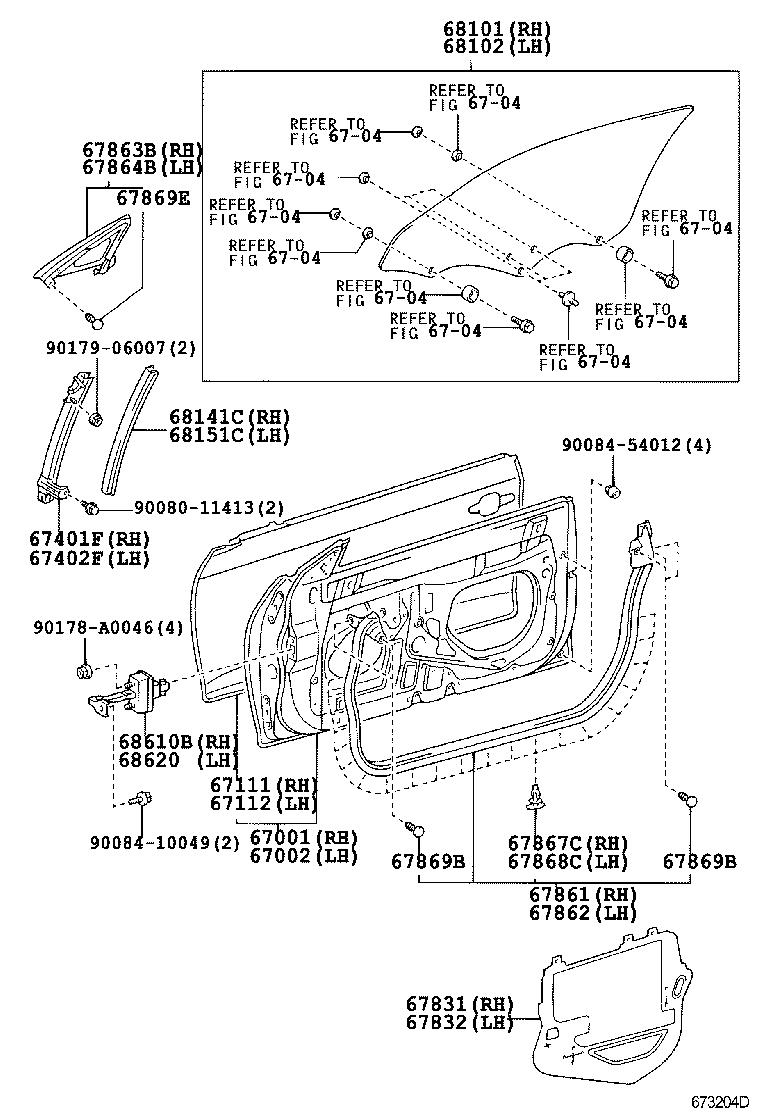

Figure 673211D 673211D 2003-07 → — Figure 673204D 673204D 2003-07 → —

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67002 Panel Sub-assy, Front Door, LH
67111 Panel, Front Door, Outer RH
67112 Panel, Front Door, Outer LH
67401F Frame Sub-assy, Front Door, Front Lower RH
67402F Frame Sub-assy, Front Door, Front Lower LH
67491A Garnish, Front Door Lower Frame Bracket, RH
67492A Garnish, Front Door Lower Frame Bracket, LH
67601 Board Sub-assy, Front Door Trim, RH
67601B Clip(FOR FRONT DOOR TRIM BOARD)
67601G Plug, Hole(FOR FRONT DOOR TRIM BOARD)
67602 Board Sub-assy, Front Door Trim, LH
67831 Cover, Front Door Service Hole, RH
67832 Cover, Front Door Service Hole, LH
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH
67863B Weatherstrip, Front Door, NO.2 RH
67864B Weatherstrip, Front Door, NO.2 LH
67867C Retainer, Front Door Weatherstrip, RH
67868C Retainer, Front Door Weatherstrip, LH
67869B Clip, Front Door Weatherstrip
67869E Clip, Front Door Weatherstrip
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141C Run, Front Door Glass, RH
68151C Run, Front Door Glass, LH
68171B Weatherstrip, Front Door Glass, Inner RH
68172A Weatherstrip, Front Door Glass, Inner LH
68610B Check Assy, Front Door, RH
68620 Check Assy, Front Door, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
