Toyota Solara
2003-07 → 2008-12 · chassis ACV30,MCV31 · catalogue 286420 · United States
Supported model
Data version 2008-11

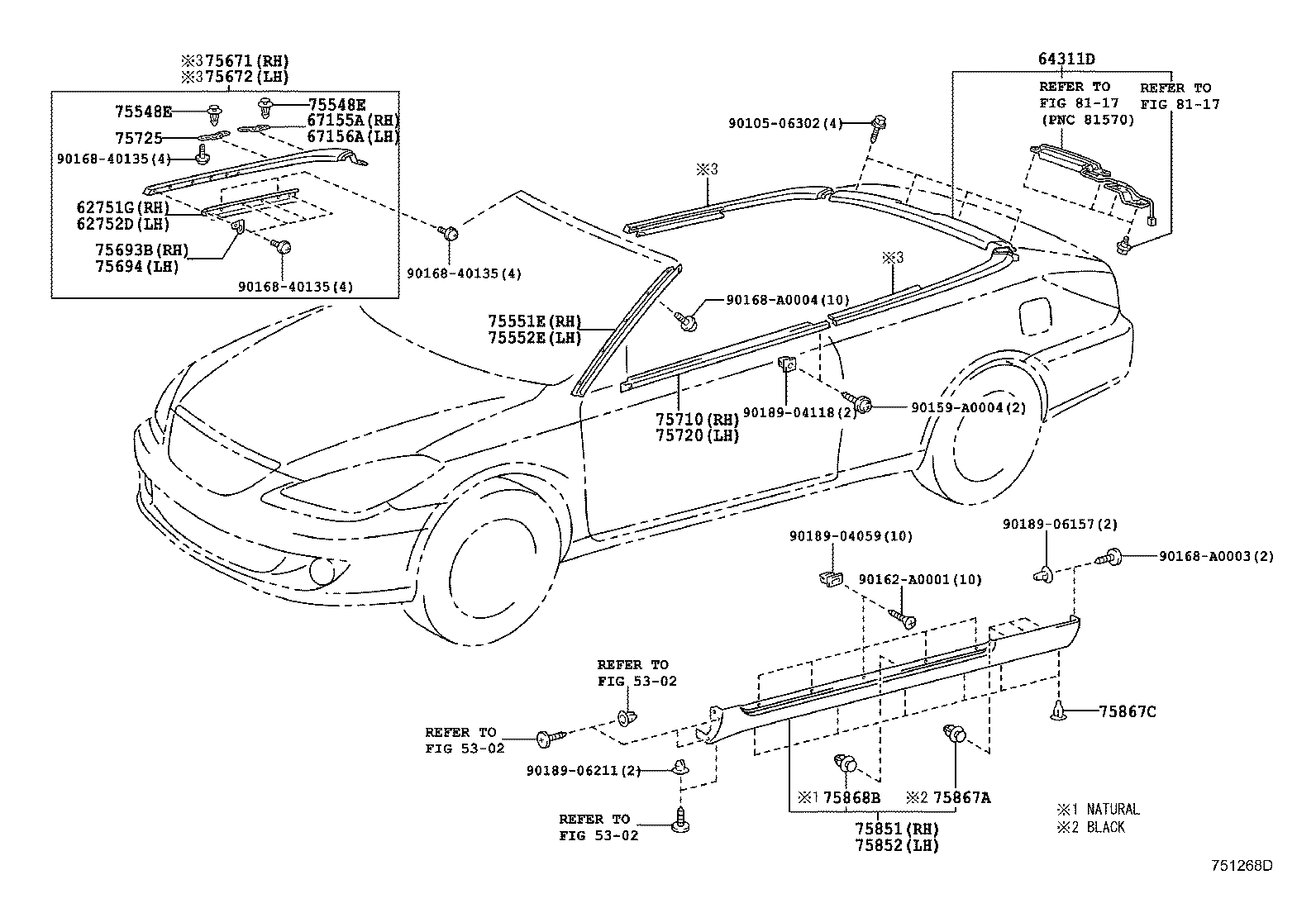

Side Moulding
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62751G | Weatherstrip, Quarter Window Glass, Outer RH |
| 62752D | Weatherstrip, Quarter Window Glass, Outer LH |
| 64311D | Moulding, Back Belt |
| 67155A | Bracket, Rear Door Corner, RH |
| 67156A | Bracket, Rear Door Corner, LH |
| 75548E | Fastener, Windshield Outside Moulding |
| 75551E | Moulding, Roof Drip Side Finish, RH |
| 75552E | Moulding, Roof Drip Side Finish, LH |
| 75555D | Moulding, Roof Drip Side Finish, Center RH |
| 75556C | Moulding, Roof Drip Side Finish, Center LH |
| 75561 | Clip, Roof Drip Side Finish Moulding, NO.1 |
| 75671 | Moulding, Quarter Belt, RH |
| 75672 | Moulding, Quarter Belt, LH |
| 75693B | Retainer, Quarter Belt Rear Moulding, NO.1 |
| 75694 | Retainer, Quarter Belt Rear Moulding, NO.2 |
| 75710 | Moulding Assy, Front Door Belt, RH |
| 75720 | Moulding Assy, Front Door Belt, LH |
| 75725 | Bracket, Rear Door Belt Moulding |
| 75851 | Moulding, Rocker Panel, RH |
| 75852 | Moulding, Rocker Panel, LH |
| 75867A | Clip, Rocker Panel Moulding |
| 75867C | Clip, Rocker Panel Moulding |
| 75868B | Clip, Rocker Panel Moulding, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
