Toyota Solara

2003-07 → 2008-12 · chassis ACV30,MCV31 · catalogue 286420 · United States

Supported model Data version 2008-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

13 part groups · 2 illustrations

Illustrations

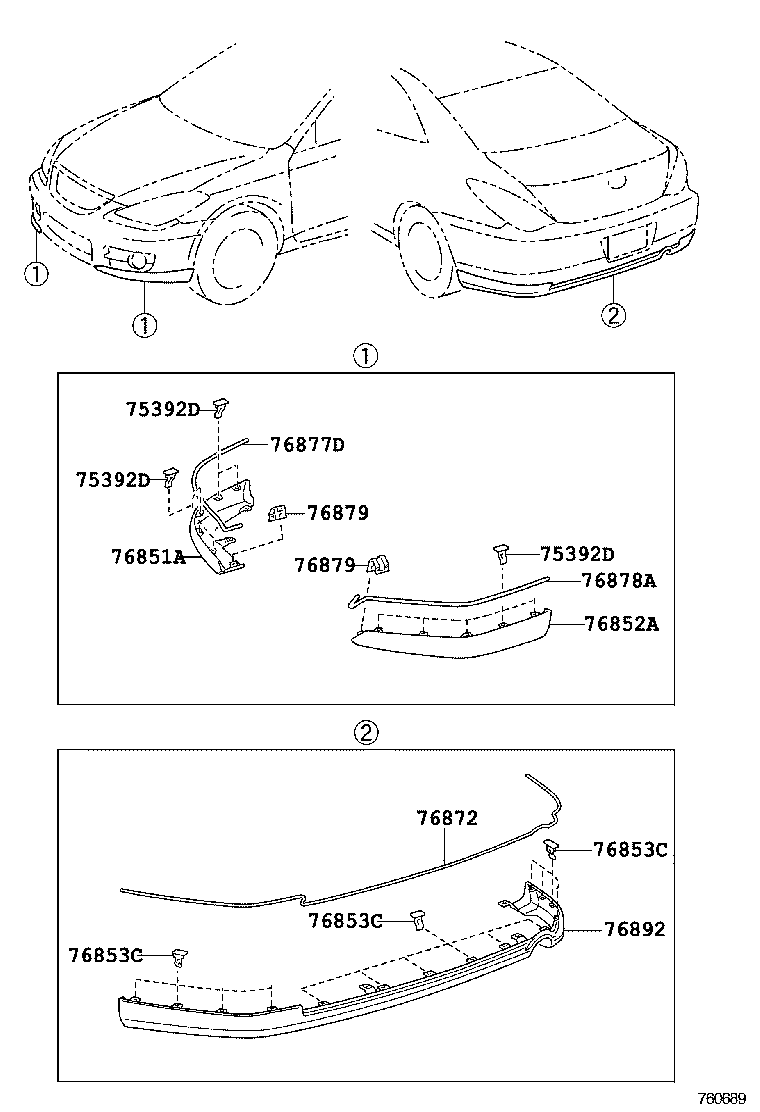

Figure 760688 760688 2003-07 → — Figure 760689 760689 2006-05 → —

Part groups

PNCDescription
75392D Retainer, Outside Moulding
76085 Spoiler Sub-assy, Rear
76848 Protector, Rear Spoiler, NO.12 RH
76849 Protector, Rear Spoiler, NO.12 LH
76851A Cover, Front Spoiler, RH
76852A Cover, Front Spoiler, LH
76853C Retainer, Front Spoiler, NO.1
76872 Protector, Rear Spoiler, NO.1
76877D Protector, Front Spoiler Side, RH
76878A Protector, Front Spoiler Side, LH
76879 Clip, Rear Spoiler, NO.1
76889 Clip, Rear Spoiler, NO.2
76892 Spoiler, Rear NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
