Toyota Solara

2003-07 → 2008-12 · chassis ACV30,MCV31 · catalogue 286420 · United States

Supported model Data version 2008-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

7 part groups · 2 illustrations

Illustrations

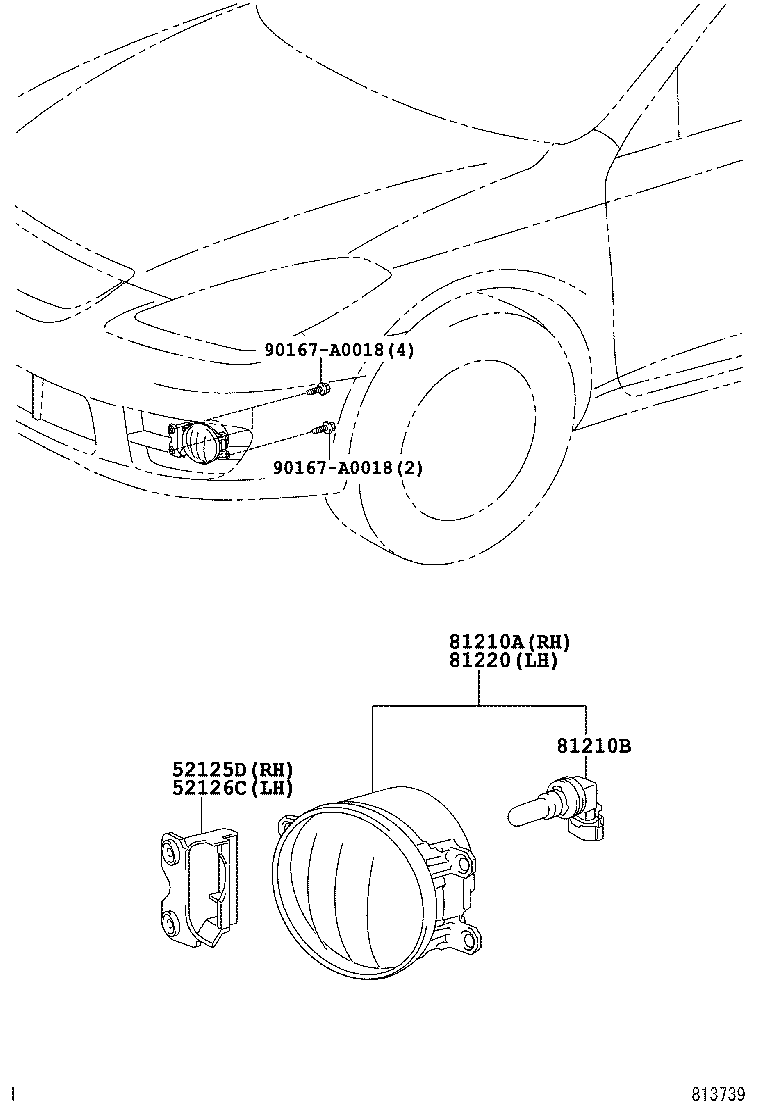

Figure 812621C 812621C 2003-07 → 2006-05 Figure 813739 813739 2006-05 → —

Part groups

PNCDescription
52125D Bracket, Fog Lamp Mounting, RH
52126C Bracket, Fog Lamp Mounting, LH
81210A Lamp Assy, Fog, RH
81210B Bulb, Fog Lamp
81211C Lamp Unit, Fog Lamp, RH
81220 Lamp Assy, Fog, LH
81221C Lamp Unit, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
