Toyota Solara

2003-07 → 2008-12 · chassis ACV30,MCV31 · catalogue 286420 · United States

Supported model Data version 2008-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

7 part groups · 2 illustrations

Illustrations

Figure 861947D

861947D 2003-07 → —

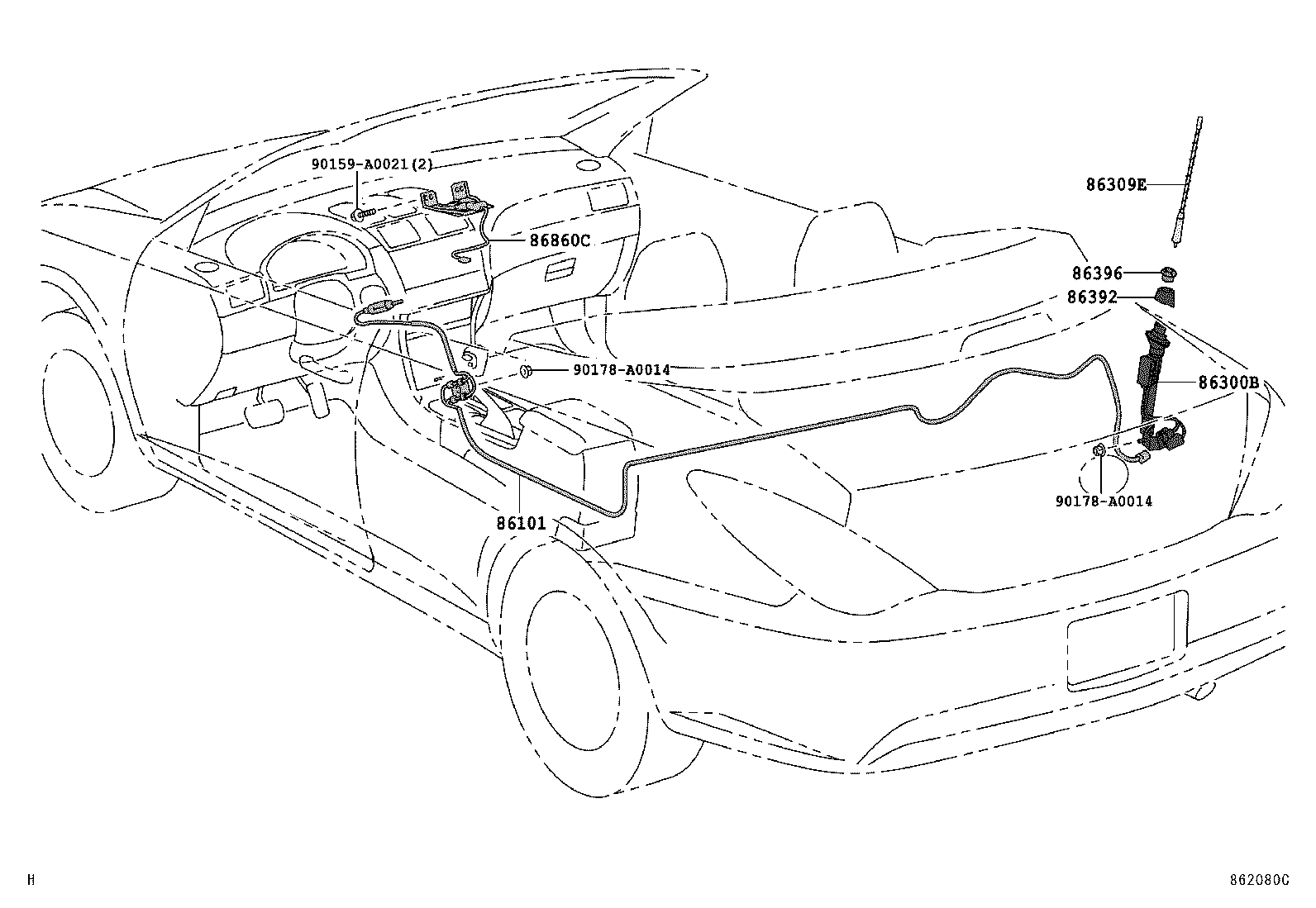

Figure 862080C

862080C 2004-02 → —

Part groups

PNC	Description
86101	Cord Sub-assy, Antenna
86300	Antenna Assy, W/Holder
86300B	Antenna Assy, Amplifier, NO.1
86309E	Pole Sub-assy, Roof Antenna
86392	Ornament, Antenna
86396	Nut, Antenna
86860C	Antenna Assy, Navigation

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
