Toyota Solara
2003-07 → 2008-12 · chassis ACV30,MCV31 · catalogue 286420 · United States
Supported model
Data version 2008-11

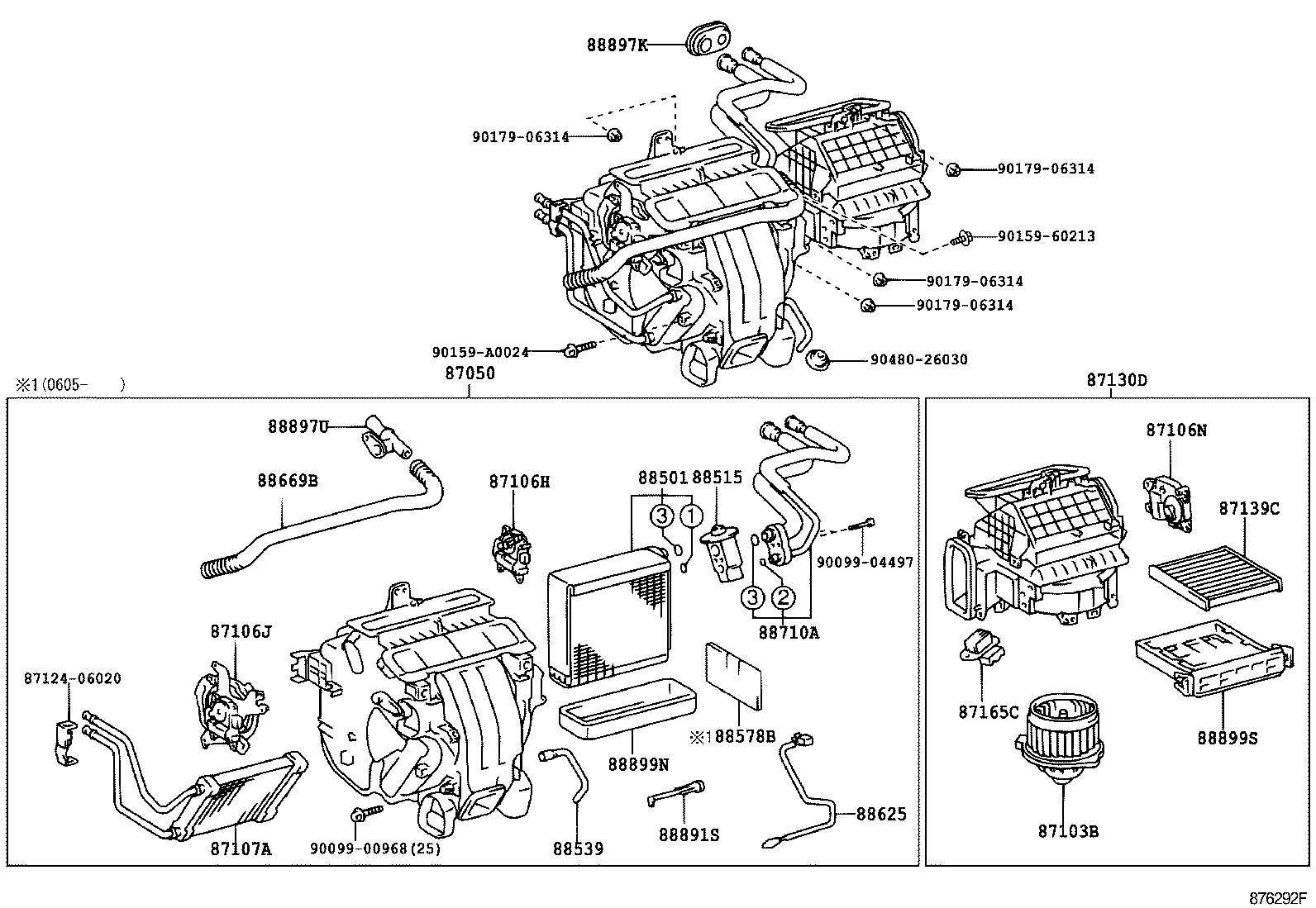

Heating & Air Conditioning - Cooler Unit
24 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 87050 | Radiator Assy, Air Conditioner |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87106H | Servo Sub-assy, Damper(FOR AIRMIX) |
| 87106J | Servo Sub-assy, Damper(FOR MODE) |
| 87106N | Servo Sub-assy, Damper(FOR RECIRCULATION) |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87130D | Blower Assy |
| 87138C | Resistor, Blower |
| 87139C | Filter, Clean Air |
| 87165C | Control, Blower Motor |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88515 | Valve, Cooler Expansion |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88578B | Packing, Cooling Unit, NO.1 |
| 88625 | Thermistor, Cooler, NO.1 |
| 88650N | Amplifier Assy, Air Conditioner |
| 88669B | Hose, Cooler Air |
| 88710A | Tube Assy, Air Conditioner |
| 88891S | Cover, Cooler, NO.1 |
| 88891Z | Bracket, Cooler Thermistor |
| 88897K | Grommet, (FOR COOLER PIPE) |
| 88897U | Pipe, Aspirator |
| 88899N | Plate, Cover |
| 88899S | Frame, Front Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
