Toyota Venza
2008-11 → 2016-12 · chassis AGV1#,GGV1# · catalogue 286430 · United States
Supported model
Data version 2016-12

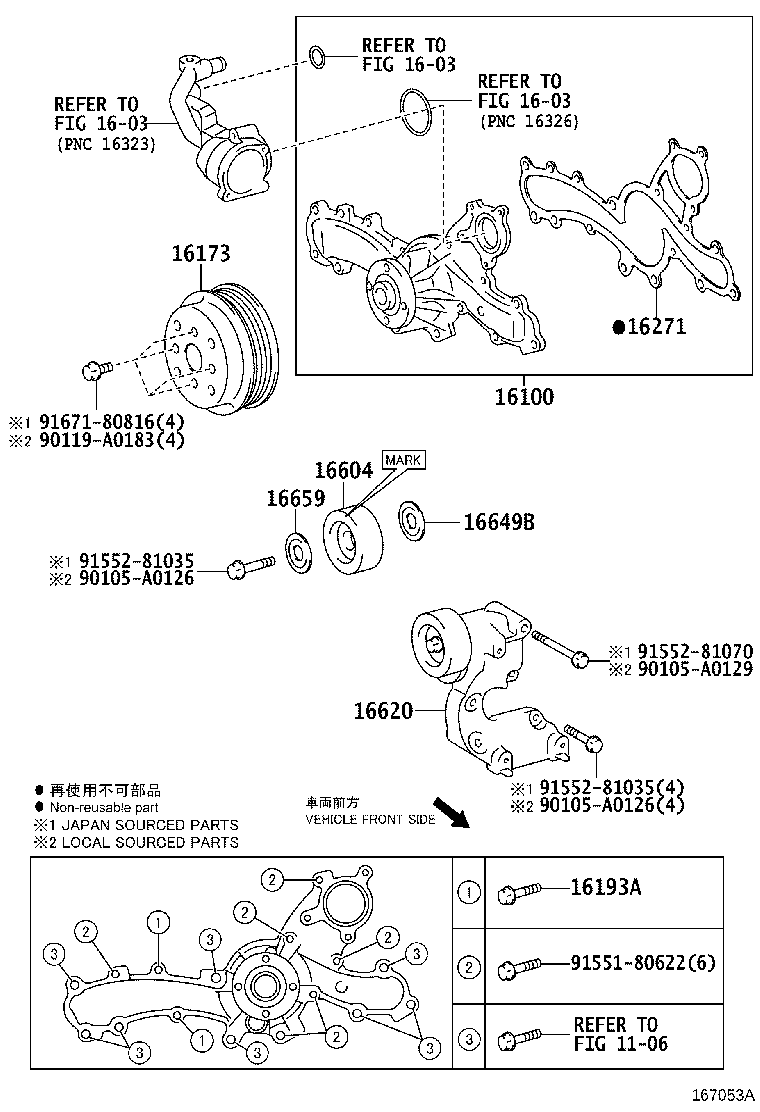

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16100 — Pump Assy, Engine Water | ||||
| 16100-09441 note |
Pump Assy, Engine Water
2008-11 → 2012-05
ended
|
2GRFE GGV1# | — | |
| 16100-09515 note |
Pump Assy, Engine Water
2011-09 → 2012-05
ended
|
1ARFE AGV1# | — | |
| 16100-09515 note |
Pump Assy, Engine Water
2011-09 → 2012-05
ended
|
1ARFE AGV1# | — | |
| 16100-39455 note |
Pump Assy, Engine Water
2008-11 → 2009-03
ended
|
2GRFE GGV1# | — | |
| 16100-39456 note |
Pump Assy, Engine Water
2009-03 → 2012-05
ended
|
2GRFE GGV1# | — | |
| 16100-39515 note |
Pump Assy, Engine Water
2009-01 → 2012-05
ended
|
1ARFE AGV1# | — | |
| 16100-39515 note |
Pump Assy, Engine Water
2011-09 → 2012-05
ended
|
1ARFE AGV1# | — | |
| 16100-09441 note |
Pump Assy, Engine Water
2012-05 → 2016-08
ended
|
2GRFE GGV1# | — | |
| 16100-09442 note |
Pump Assy, Engine Water
2016-08 → —
|
2GRFE GGV1# | — | |
| 16100-09515 |
Pump Assy, Engine Water
2012-05 → —
|
1ARFE AGV1# | — | |
| 16100-09515 note |
Pump Assy, Engine Water
2012-05 → —
|
1ARFE AGV1# | — | |
| 16100-39456 note |
Pump Assy, Engine Water
2012-05 → 2012-10
ended
|
2GRFE GGV1# | — | |
| 16100-39515 note |
Pump Assy, Engine Water
2012-05 → —
|
1ARFE AGV1# | — | |
| 16173 — Pulley, Water Pump | ||||
| 16173-31010 |
Pulley, Water Pump
2008-11 → 2012-05
ended
|
2GRFE GGV1# | — | |
| 16173-31010 |
Pulley, Water Pump
2012-05 → —
|
2GRFE GGV1# | — | |
| 16193A — Bolt(FOR WATER PUMP COVER) | ||||
| 16193-31080 |
Bolt(FOR WATER PUMP COVER)
2008-11 → 2012-05
ended
|
2GRFE GGV1# | — | |
| 16193-0P040 note |
Bolt(FOR WATER PUMP COVER)
2016-08 → 2016-12
ended
|
2GRFE GGV1# | — | |
| 16193-31080 |
Bolt(FOR WATER PUMP COVER)
2012-05 → 2012-10
ended
|
2GRFE GGV1# | — | |
| 16193-31080 note |
Bolt(FOR WATER PUMP COVER)
2012-05 → 2016-12
ended
|
2GRFE GGV1# | — | |
| 16271 — Gasket, Water Pump | ||||
| 16271-0P010 note |
Gasket, Water Pump
2008-11 → 2012-05
ended
|
2GRFE GGV1# | — | |
| 16271-31030 note |
Gasket, Water Pump
2008-11 → 2012-05
ended
|
2GRFE GGV1# | — | |
| 16271-36010 |
Gasket, Water Pump
2009-01 → 2009-10
ended
|
1ARFE AGV1# | — | |
| 16271-36010 note |
Gasket, Water Pump
2009-10 → 2012-05
ended
|
1ARFE AGV1# | — | |
| 16271-36010 note |
Gasket, Water Pump
2011-09 → 2012-05
ended
|
1ARFE AGV1# | — | |
| 16271-0P010 note |
Gasket, Water Pump
2012-05 → —
|
2GRFE GGV1# | — | |
| 16271-31030 note |
Gasket, Water Pump
2013-12 → —
|
2GRFE GGV1# | — | |
| 16271-31030 note |
Gasket, Water Pump
2012-05 → 2012-10
ended
|
2GRFE GGV1# | — | |
| 16271-36010 |
Gasket, Water Pump
2012-05 → —
|
1ARFE AGV1# | — | |
| 16604 — Pulley Sub-assy, Idler, NO.2 | ||||
| 16604-31020 |
Pulley Sub-assy, Idler, NO.2
2008-11 → 2012-05
ended
|
2GRFE GGV1# | — | |
| 16604-31020 note |
Pulley Sub-assy, Idler, NO.2
2012-05 → 2012-06
ended
|
2GRFE GGV1# | — | |
| 16604-31020 note |
Pulley Sub-assy, Idler, NO.2
2012-06 → 2012-10
ended
|
2GRFE GGV1# | — | |
| 16604-31020 note |
Pulley Sub-assy, Idler, NO.2
2012-05 → —
|
2GRFE GGV1# | — | |
| 16604-31030 note |
Pulley Sub-assy, Idler, NO.2
2012-06 → 2012-10
ended
|
2GRFE GGV1# | — | |
| 16620 — Tensioner Assy, V-ribbed Belt | ||||
| 16620-0V020 note |
Tensioner Assy, V-ribbed Belt
2011-09 → 2012-05
ended
|
1ARFE AGV1# | — | |
| 16620-31040 |
Tensioner Assy, V-ribbed Belt
2008-11 → 2012-05
ended
|
2GRFE GGV1# | — | |
| 16620-36010 note |
Tensioner Assy, V-ribbed Belt
2009-01 → 2012-05
ended
|
1ARFE AGV1# | — | |
| 16620-36010 note |
Tensioner Assy, V-ribbed Belt
2011-09 → 2012-05
ended
|
1ARFE AGV1# | — | |
| 16620-0V020 note |
Tensioner Assy, V-ribbed Belt
2012-05 → 2013-05
ended
|
1ARFE AGV1# | — | |
| 16620-0V021 note |
Tensioner Assy, V-ribbed Belt
2013-05 → 2014-05
ended
|
1ARFE AGV1# | — | |
| 16620-0V022 note |
Tensioner Assy, V-ribbed Belt
2014-05 → —
|
1ARFE AGV1# | — | |
| 16620-31040 |
Tensioner Assy, V-ribbed Belt
2012-05 → —
|
2GRFE GGV1# | — | |
| 16620-36010 note |
Tensioner Assy, V-ribbed Belt
2012-05 → 2014-02
ended
|
1ARFE AGV1# | — | |
| 16620-36011 note |
Tensioner Assy, V-ribbed Belt
2014-02 → 2015-09
ended
|
1ARFE AGV1# | — | |
| 16620-36012 note |
Tensioner Assy, V-ribbed Belt
2015-10 → —
|
1ARFE AGV1# | — | |
| 16649B — Plate, Idler Pulley Cover | ||||
| 16649-31020 |
Plate, Idler Pulley Cover
2008-11 → 2012-05
ended
|
2GRFE GGV1# | — | |
| 16649-31020 |
Plate, Idler Pulley Cover
2012-05 → —
|
2GRFE GGV1# | — | |
| 16659 — Plate, Idler Pulley Cover, NO.2 | ||||
| 16659-31011 note |
Plate, Idler Pulley Cover, NO.2
2008-11 → 2012-05
ended
|
2GRFE GGV1# | — | |
| 16659-AD010 note |
Plate, Idler Pulley Cover, NO.2
2008-11 → 2012-05
ended
|
2GRFE GGV1# | — | |
| 16659-31011 note |
Plate, Idler Pulley Cover, NO.2
2012-05 → 2012-10
ended
|
2GRFE GGV1# | — | |
| 16659-AD010 note |
Plate, Idler Pulley Cover, NO.2
2012-05 → —
|
2GRFE GGV1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
