Toyota Venza

2008-11 → 2016-12 · chassis AGV1#,GGV1# · catalogue 286430 · United States

Supported model Data version 2016-12

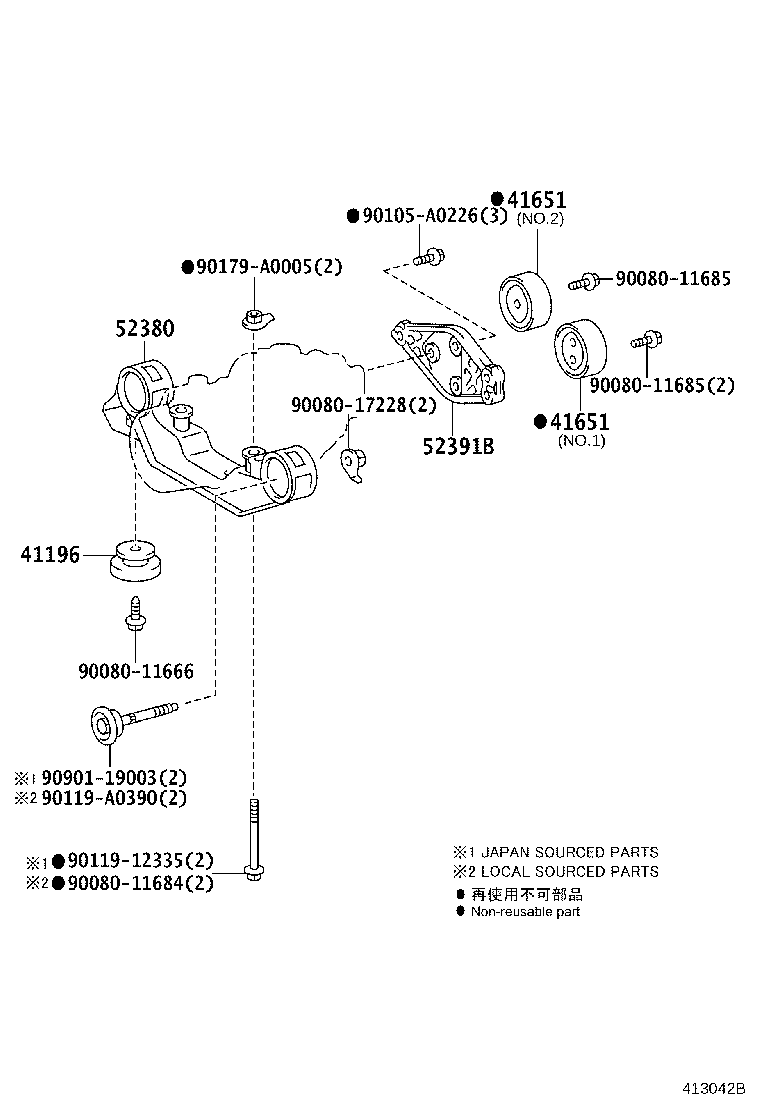

Exploded illustration 413042B 41651 — CUSHION, REAR DIFFERENTIAL MOUNT, NO.1 (4 parts) 41651 — CUSHION, REAR DIFFERENTIAL MOUNT, NO.1 (4 parts) 9090119003 — not listed in this catalogue 90119A0390 — not listed in this catalogue 9008011666 — not listed in this catalogue 41196 — DAMPER, REAR DIFFERENTIAL DYNAMIC (2 parts) 52391B — SUPPORT, DIFFERENTIAL (2 parts) 9008017228 — not listed in this catalogue 90179A0005 — not listed in this catalogue 52380 — SUPPORT, REAR DIFFERENTIAL, NO.1 (2 parts) 90105A0226 — not listed in this catalogue 9008011685 — not listed in this catalogue 9008011685 — not listed in this catalogue 9011912335 — not listed in this catalogue 9008011684 — not listed in this catalogue
413042B · 5 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
10 parts on this figure
Part number Description Fitment Price
41196 — Damper, Rear Differential Dynamic
41196-01010 Damper, Rear Differential Dynamic
2008-11 → 2012-05 ended
AGV15,GGV15 —
41196-01010 Damper, Rear Differential Dynamic
2012-05 → —
AGV15,GGV15 —
41651 — Cushion, Rear Differential Mount, NO.1
41651-01020 note Cushion, Rear Differential Mount, NO.1
2008-11 → 2012-05 ended
AGV15,GGV15 —
41651-33030 note Cushion, Rear Differential Mount, NO.1
2008-11 → 2012-05 ended
AGV15,GGV15 —
41651-01020 note Cushion, Rear Differential Mount, NO.1
2012-05 → —
AGV15,GGV15 —
41651-33030 note Cushion, Rear Differential Mount, NO.1
2012-05 → —
AGV15,GGV15 —
52380 — Support, Rear Differential, NO.1
52380-73010 Support, Rear Differential, NO.1
2008-11 → 2012-05 ended
AGV15,GGV15 —
52380-73010 Support, Rear Differential, NO.1
2012-05 → —
AGV15,GGV15 —
52391B — Support, Differential
52391-33020 Support, Differential
2008-11 → 2012-05 ended
AGV15,GGV15 —
52391-33020 Support, Differential
2012-05 → —
AGV15,GGV15 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
