Toyota Venza

2008-11 → 2016-12 · chassis AGV1#,GGV1# · catalogue 286430 · United States

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

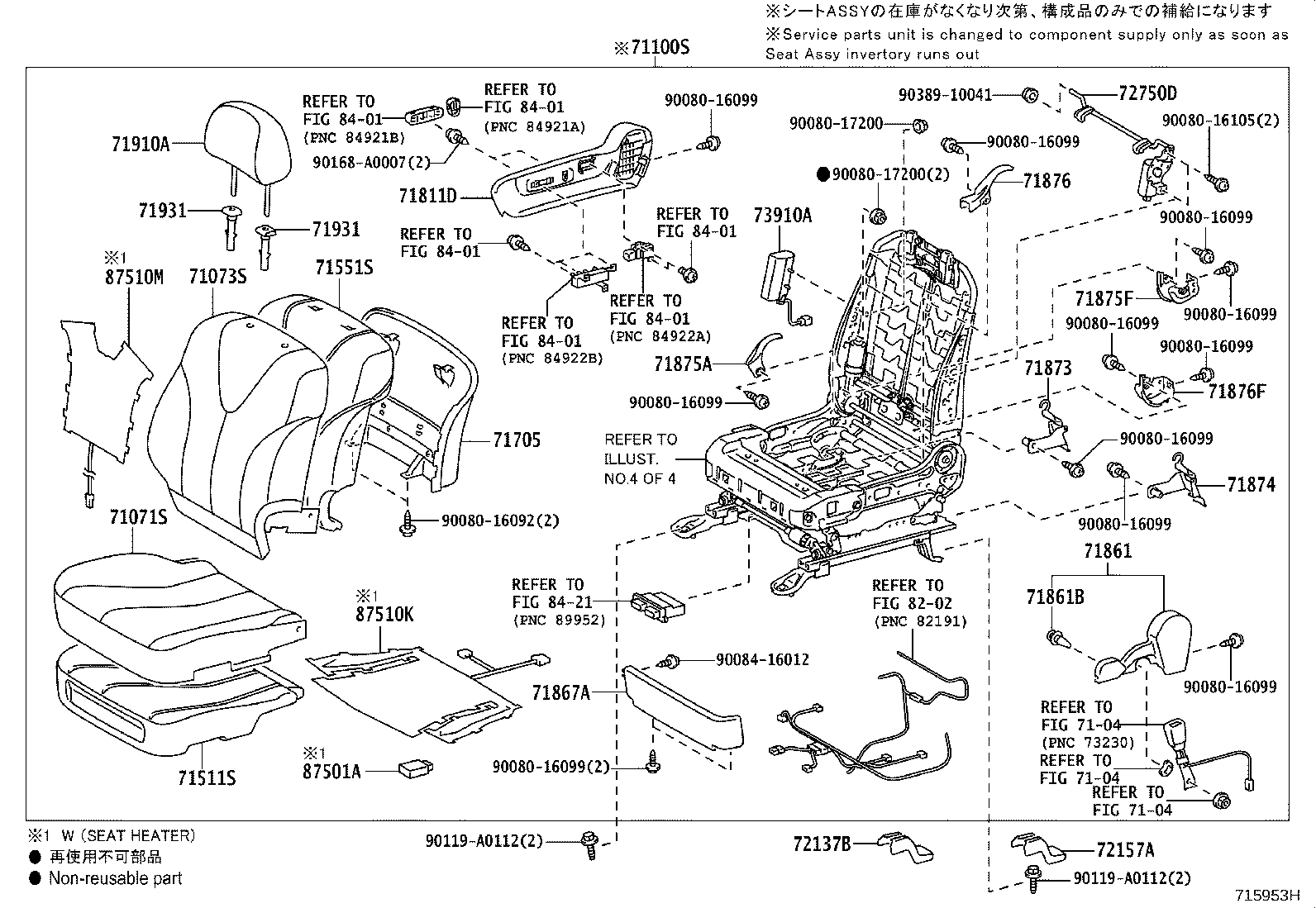

Exploded illustration 715953H 71511S — PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (6 parts) 71073S — COVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (29 parts) 71910A — HEADREST ASSY, FRONT SEAT (33 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (10 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (10 parts) 71705 — BOARD SUB-ASSY, FRONT SEATBACK, RH (15 parts) 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (15 parts) 71875F — COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) (6 parts) 71876F — COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) (6 parts) 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (15 parts) 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (15 parts) 71861B — CLIP(FOR FRONT SEAT SHIELD, RH) (6 parts) 90119A0112 — not listed in this catalogue 9008416012 — not listed in this catalogue 90119A0112 — not listed in this catalogue 9008016092 — not listed in this catalogue 9008016099 — not listed in this catalogue 9008016099 — not listed in this catalogue 9008016099 — not listed in this catalogue 9008016099 — not listed in this catalogue 9008016099 — not listed in this catalogue 9008016099 — not listed in this catalogue 9008017200 — not listed in this catalogue 9008017200 — not listed in this catalogue 9008016099 — not listed in this catalogue 9008016099 — not listed in this catalogue 71811D — SHIELD, FRONT SEAT CUSHION, RH (15 parts) 73910A — AIRBAG ASSY, FRONT SEAT, RH (2 parts) 71551S — PAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (2 parts) 71100S — SEAT ASSY, FRONT RH (20 parts) 71071S — COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (29 parts) 72137B — COVER, SEAT TRACK, RH (4 parts) 71867A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH (10 parts) 72157A — COVER, SEAT TRACK BRACKET, INNER RH (4 parts) 71873 — SHIELD, FRONT SEAT CUSHION, LOWER RH (6 parts) 71874 — SHIELD, FRONT SEAT CUSHION, LOWER LH (6 parts) 90168A0007 — not listed in this catalogue 9008016099 — not listed in this catalogue 9008016099 — not listed in this catalogue 9008016099 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8421 — not listed in this catalogue 8202 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 8401 — not listed in this catalogue 9008016105 — not listed in this catalogue 9038910041 — not listed in this catalogue 72750D — ADJUSTER ASSY, LUMBAR SUPPORT, RH (6 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue 87510M — HEATER ASSY, FRONT SEATBACK, RH (3 parts) 87510K — HEATER ASSY, FRONT SEAT CUSHION, RH (4 parts) 87501A — CONTROL SUB-ASSY, SEAT HEATER, RH (3 parts)
715953H · 26 callouts, 31 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
270 parts on this figure
Part number Description Fitment Price
71071S — Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71071-0T010-A1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71071-0T010-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71071-0T020-A0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71071-0T020-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71071-0T021-A0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2010-10 → 2012-05 ended
AGV1#,GGV1# —
71071-0T021-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2010-10 → 2012-05 ended
AGV1#,GGV1# —
71071-0T030-A0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71071-0T030-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71071-0T031-A0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2010-10 → 2012-05 ended
AGV1#,GGV1# —
71071-0T031-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2010-10 → 2012-05 ended
AGV1#,GGV1# —
71071-0T040-A0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71071-0T040-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71071-0T050-A0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71071-0T050-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71071-0T011-A3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71071-0T011-B3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71071-0T011-C1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71071-0T022-A2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71071-0T022-B2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71071-0T022-C1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71071-0T023-A3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71071-0T023-B3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71071-0T023-C1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71071-0T032-A2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71071-0T032-B2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71071-0T032-C1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71071-0T033-A3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71071-0T033-B3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71071-0T033-C1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71073S — Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71073-0T010-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71073-0T010-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71073-0T020-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71073-0T020-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2010-10 → 2012-05 ended
AGV1#,GGV1# —
71073-0T020-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2010-10 → 2012-05 ended
AGV1#,GGV1# —
71073-0T020-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71073-0T030-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71073-0T030-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2010-10 → 2012-05 ended
AGV1#,GGV1# —
71073-0T030-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71073-0T030-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2010-10 → 2012-05 ended
AGV1#,GGV1# —
71073-0T040-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71073-0T040-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71073-0T050-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71073-0T050-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71073-0T011-A1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71073-0T011-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71073-0T011-B2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71073-0T021-A1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71073-0T021-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71073-0T021-B2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71073-0T022-A2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71073-0T022-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71073-0T022-B3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71073-0T031-A1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71073-0T031-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71073-0T031-B2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71073-0T032-A2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71073-0T032-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71073-0T032-B3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71100S — Seat Assy, Front RH
71100-0T010-A3 note Seat Assy, Front RH
2008-11 → 2011-11 ended
AGV1#,GGV1# —
71100-0T010-B3 note Seat Assy, Front RH
2008-11 → 2011-11 ended
AGV1#,GGV1# —
71100-0T011-A0 note Seat Assy, Front RH
2011-12 → 2012-05 ended
AGV1#,GGV1# —
71100-0T011-B0 note Seat Assy, Front RH
2011-12 → 2012-05 ended
AGV1#,GGV1# —
71100-0T020-A0 note Seat Assy, Front RH
2010-10 → 2011-10 ended
AGV1#,GGV1# —
71100-0T020-A0 note Seat Assy, Front RH
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71100-0T020-B0 note Seat Assy, Front RH
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71100-0T020-B0 note Seat Assy, Front RH
2010-10 → 2011-10 ended
AGV1#,GGV1# —
71100-0T021-A0 note Seat Assy, Front RH
2011-10 → 2012-05 ended
AGV1#,GGV1# —
71100-0T021-B0 note Seat Assy, Front RH
2011-10 → 2012-05 ended
AGV1#,GGV1# —
71100-0T030-A0 note Seat Assy, Front RH
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71100-0T030-A0 note Seat Assy, Front RH
2010-10 → 2011-10 ended
AGV1#,GGV1# —
71100-0T030-B0 note Seat Assy, Front RH
2010-10 → 2011-10 ended
AGV1#,GGV1# —
71100-0T030-B0 note Seat Assy, Front RH
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71100-0T031-A0 note Seat Assy, Front RH
2011-10 → 2012-05 ended
AGV1#,GGV1# —
71100-0T031-B0 note Seat Assy, Front RH
2011-10 → 2012-05 ended
AGV1#,GGV1# —
71100-0T070-A0 note Seat Assy, Front RH
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71100-0T070-B0 note Seat Assy, Front RH
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71100-0T080-A0 note Seat Assy, Front RH
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71100-0T080-B0 note Seat Assy, Front RH
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71511S — Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71511-0T010 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71511-0T020 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71511-0T020 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71511-0T010 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71511-0T020 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71511-0T020 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71551S — Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71551-0T010 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71551-0T010 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71705 — Board Sub-assy, Front Seatback, RH
71705-06050-A0 note Board Sub-assy, Front Seatback, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71705-06050-A0 note Board Sub-assy, Front Seatback, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71705-06050-B2 note Board Sub-assy, Front Seatback, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71705-06050-B2 note Board Sub-assy, Front Seatback, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71705-06100-A0 note Board Sub-assy, Front Seatback, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71705-06100-B2 note Board Sub-assy, Front Seatback, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71705-06050-A2 note Board Sub-assy, Front Seatback, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71705-06050-A2 note Board Sub-assy, Front Seatback, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71705-06050-B4 note Board Sub-assy, Front Seatback, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71705-06050-B4 note Board Sub-assy, Front Seatback, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71705-06050-C2 note Board Sub-assy, Front Seatback, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71705-06050-C2 note Board Sub-assy, Front Seatback, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71705-06100-A2 note Board Sub-assy, Front Seatback, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71705-06100-B4 note Board Sub-assy, Front Seatback, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71705-06100-C2 note Board Sub-assy, Front Seatback, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71811D — Shield, Front Seat Cushion, RH
71811-0T010-A0 note Shield, Front Seat Cushion, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71811-0T010-B0 note Shield, Front Seat Cushion, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71811-0T020-A0 note Shield, Front Seat Cushion, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71811-0T020-A0 note Shield, Front Seat Cushion, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71811-0T020-B0 note Shield, Front Seat Cushion, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71811-0T020-B0 note Shield, Front Seat Cushion, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71811-0T010-A0 note Shield, Front Seat Cushion, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71811-0T010-B0 note Shield, Front Seat Cushion, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71811-0T010-C0 note Shield, Front Seat Cushion, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71811-0T020-A0 note Shield, Front Seat Cushion, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71811-0T020-A0 note Shield, Front Seat Cushion, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71811-0T020-B0 note Shield, Front Seat Cushion, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71811-0T020-B0 note Shield, Front Seat Cushion, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71811-0T020-C0 note Shield, Front Seat Cushion, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71811-0T020-C0 note Shield, Front Seat Cushion, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71861 — Shield, Front Seat Cushion, Inner RH
71861-06050-A0 note Shield, Front Seat Cushion, Inner RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71861-06050-A0 note Shield, Front Seat Cushion, Inner RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71861-06050-B2 note Shield, Front Seat Cushion, Inner RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71861-06050-B2 note Shield, Front Seat Cushion, Inner RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71861-AA070-A0 note Shield, Front Seat Cushion, Inner RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71861-AA070-B4 note Shield, Front Seat Cushion, Inner RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71861-06050-A0 note Shield, Front Seat Cushion, Inner RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71861-06050-A0 note Shield, Front Seat Cushion, Inner RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71861-06050-B2 note Shield, Front Seat Cushion, Inner RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71861-06050-B2 note Shield, Front Seat Cushion, Inner RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71861-06050-C0 note Shield, Front Seat Cushion, Inner RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71861-06050-C0 note Shield, Front Seat Cushion, Inner RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71861-AA070-A0 note Shield, Front Seat Cushion, Inner RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71861-AA070-B4 note Shield, Front Seat Cushion, Inner RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71861-AA070-C0 note Shield, Front Seat Cushion, Inner RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71861B — Clip(FOR FRONT SEAT SHIELD, RH)
67921-50050-B0 note Clip(FOR FRONT SEAT SHIELD, RH)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
67921-50050-B0 note Clip(FOR FRONT SEAT SHIELD, RH)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71769-33020 Clip(FOR FRONT SEAT SHIELD, RH)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
67921-50050-B0 note Clip(FOR FRONT SEAT SHIELD, RH)
2012-05 → 2016-12 ended
AGV1#,GGV1# —
67921-50050-B0 note Clip(FOR FRONT SEAT SHIELD, RH)
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71769-33020 Clip(FOR FRONT SEAT SHIELD, RH)
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71867A — Shield, Front Seat Cushion, Inner NO.1 RH
71867-06040-A0 note Shield, Front Seat Cushion, Inner NO.1 RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71867-06040-A0 note Shield, Front Seat Cushion, Inner NO.1 RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71867-06040-B2 note Shield, Front Seat Cushion, Inner NO.1 RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71867-06040-B2 note Shield, Front Seat Cushion, Inner NO.1 RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71867-06040-A0 note Shield, Front Seat Cushion, Inner NO.1 RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71867-06040-A0 note Shield, Front Seat Cushion, Inner NO.1 RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71867-06040-B2 note Shield, Front Seat Cushion, Inner NO.1 RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71867-06040-B2 note Shield, Front Seat Cushion, Inner NO.1 RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71867-06040-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71867-06040-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71873 — Shield, Front Seat Cushion, Lower RH
71873-06040 note Shield, Front Seat Cushion, Lower RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71873-06040 note Shield, Front Seat Cushion, Lower RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71873-0C060-C0 note Shield, Front Seat Cushion, Lower RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71873-06040 note Shield, Front Seat Cushion, Lower RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71873-06040 note Shield, Front Seat Cushion, Lower RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71873-0C060-C0 note Shield, Front Seat Cushion, Lower RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71874 — Shield, Front Seat Cushion, Lower LH
71874-06070 note Shield, Front Seat Cushion, Lower LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71874-06070 note Shield, Front Seat Cushion, Lower LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71874-0C030-C0 note Shield, Front Seat Cushion, Lower LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71874-06070 note Shield, Front Seat Cushion, Lower LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71874-06070 note Shield, Front Seat Cushion, Lower LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71874-0C030-C0 note Shield, Front Seat Cushion, Lower LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71875A — Cover, Reclining Adjuster Inside, RH
71875-0E010-A0 note Cover, Reclining Adjuster Inside, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71875-0E010-A0 note Cover, Reclining Adjuster Inside, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71875-0E010-B0 note Cover, Reclining Adjuster Inside, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71875-0E010-B0 note Cover, Reclining Adjuster Inside, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71875-AD020-A0 note Cover, Reclining Adjuster Inside, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71875-AD020-B1 note Cover, Reclining Adjuster Inside, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71875-0E010-A0 note Cover, Reclining Adjuster Inside, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71875-0E010-A0 note Cover, Reclining Adjuster Inside, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71875-0E010-B0 note Cover, Reclining Adjuster Inside, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71875-0E010-B0 note Cover, Reclining Adjuster Inside, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71875-0E010-C0 note Cover, Reclining Adjuster Inside, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71875-0E010-C0 note Cover, Reclining Adjuster Inside, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71875-AD020-A0 note Cover, Reclining Adjuster Inside, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71875-AD020-B1 note Cover, Reclining Adjuster Inside, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71875-AD020-C0 note Cover, Reclining Adjuster Inside, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71875F — Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71813-0E010 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71813-0E010 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71875-AA060 Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71813-0E010 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71813-0E010 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71875-AA060 Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71876 — Cover, Reclining Adjuster Inside, LH
71875-AA090-A0 note Cover, Reclining Adjuster Inside, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71875-AA090-A0 note Cover, Reclining Adjuster Inside, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71875-AA090-B2 note Cover, Reclining Adjuster Inside, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71875-AA090-B2 note Cover, Reclining Adjuster Inside, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71876-02130-A0 note Cover, Reclining Adjuster Inside, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71876-02130-B3 note Cover, Reclining Adjuster Inside, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71875-AA090-A0 note Cover, Reclining Adjuster Inside, LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71875-AA090-A0 note Cover, Reclining Adjuster Inside, LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71875-AA090-B2 note Cover, Reclining Adjuster Inside, LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71875-AA090-B2 note Cover, Reclining Adjuster Inside, LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71875-AA090-C0 note Cover, Reclining Adjuster Inside, LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71875-AA090-C0 note Cover, Reclining Adjuster Inside, LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71876-02130-A0 note Cover, Reclining Adjuster Inside, LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71876-02130-B3 note Cover, Reclining Adjuster Inside, LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71876-02130-C0 note Cover, Reclining Adjuster Inside, LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71876F — Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71814-0E010 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71814-0E010 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71876-AA060 Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71814-0E010 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71814-0E010 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71876-AA060 Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71910A — Headrest Assy, Front Seat
71910-0T010-A1 note Headrest Assy, Front Seat
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71910-0T010-B1 note Headrest Assy, Front Seat
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71910-0T020-A1 note Headrest Assy, Front Seat
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71910-0T020-A1 note Headrest Assy, Front Seat
2010-10 → 2011-10 ended
AGV1#,GGV1# —
71910-0T020-A1 note Headrest Assy, Front Seat
2010-10 → 2011-10 ended
AGV1#,GGV1# —
71910-0T020-A1 note Headrest Assy, Front Seat
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71910-0T020-B1 note Headrest Assy, Front Seat
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71910-0T020-B1 note Headrest Assy, Front Seat
2010-10 → 2011-10 ended
AGV1#,GGV1# —
71910-0T020-B1 note Headrest Assy, Front Seat
2010-10 → 2011-10 ended
AGV1#,GGV1# —
71910-0T020-B1 note Headrest Assy, Front Seat
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71910-0T021-A1 note Headrest Assy, Front Seat
2011-10 → 2012-05 ended
AGV1#,GGV1# —
71910-0T021-A1 note Headrest Assy, Front Seat
2011-10 → 2012-05 ended
AGV1#,GGV1# —
71910-0T021-B1 note Headrest Assy, Front Seat
2011-10 → 2012-05 ended
AGV1#,GGV1# —
71910-0T021-B1 note Headrest Assy, Front Seat
2011-10 → 2012-05 ended
AGV1#,GGV1# —
71910-0T040-A1 note Headrest Assy, Front Seat
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71910-0T040-A1 note Headrest Assy, Front Seat
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71910-0T040-B1 note Headrest Assy, Front Seat
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71910-0T040-B1 note Headrest Assy, Front Seat
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71910-0T011-A1 note Headrest Assy, Front Seat
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71910-0T011-B1 note Headrest Assy, Front Seat
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71910-0T011-C0 note Headrest Assy, Front Seat
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71910-0T030-A0 note Headrest Assy, Front Seat
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71910-0T030-A0 note Headrest Assy, Front Seat
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71910-0T030-B0 note Headrest Assy, Front Seat
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71910-0T030-B0 note Headrest Assy, Front Seat
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71910-0T030-C0 note Headrest Assy, Front Seat
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71910-0T030-C0 note Headrest Assy, Front Seat
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71910-0T031-A1 note Headrest Assy, Front Seat
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71910-0T031-A1 note Headrest Assy, Front Seat
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71910-0T031-B1 note Headrest Assy, Front Seat
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71910-0T031-B1 note Headrest Assy, Front Seat
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71910-0T031-C0 note Headrest Assy, Front Seat
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71910-0T031-C0 note Headrest Assy, Front Seat
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71931 — Support, Front Seat Headrest
71930-44020-A0 note Support, Front Seat Headrest
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71930-44020-B8 note Support, Front Seat Headrest
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71931-47010-A0 note Support, Front Seat Headrest
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71931-47010-P3 note Support, Front Seat Headrest
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71930-44020-A0 note Support, Front Seat Headrest
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71930-44020-B8 note Support, Front Seat Headrest
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71930-44020-C0 note Support, Front Seat Headrest
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71931-47010-A0 note Support, Front Seat Headrest
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71931-47010-C0 note Support, Front Seat Headrest
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71931-47010-P3 note Support, Front Seat Headrest
2012-05 → 2016-12 ended
AGV1#,GGV1# —
72137B — Cover, Seat Track, RH
72137-0T010-C0 note Cover, Seat Track, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
72137-0T020-C0 note Cover, Seat Track, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
72137-0T010-C0 note Cover, Seat Track, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
72137-0T020-C0 note Cover, Seat Track, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
72157A — Cover, Seat Track Bracket, Inner RH
72157-0T010-C0 note Cover, Seat Track Bracket, Inner RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
72157-0T020-C0 note Cover, Seat Track Bracket, Inner RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
72157-0T010-C0 note Cover, Seat Track Bracket, Inner RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
72157-0T020-C0 note Cover, Seat Track Bracket, Inner RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
72750D — Adjuster Assy, Lumbar Support, RH
72750-0E010 note Adjuster Assy, Lumbar Support, RH
2010-10 → 2012-05 ended
AGV1#,GGV1# —
72750-0E010 note Adjuster Assy, Lumbar Support, RH
2010-10 → 2012-05 ended
AGV1#,GGV1# —
72750-0E010 note Adjuster Assy, Lumbar Support, RH
2008-11 → 2009-09 ended
AGV1#,GGV1# —
72750-0E010 note Adjuster Assy, Lumbar Support, RH
2008-11 → 2009-09 ended
AGV1#,GGV1# —
72750-0E010 note Adjuster Assy, Lumbar Support, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
72750-0E010 note Adjuster Assy, Lumbar Support, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
73910A — Airbag Assy, Front Seat, RH
73910-0T010 Airbag Assy, Front Seat, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
73910-0T010 Airbag Assy, Front Seat, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
87501A — Control Sub-assy, Seat Heater, RH
87501-0T010 note Control Sub-assy, Seat Heater, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
87501-0T010 note Control Sub-assy, Seat Heater, RH
2012-05 → 2014-08 ended
AGV1#,GGV1# —
87501-0T011 note Control Sub-assy, Seat Heater, RH
2014-08 → 2016-12 ended
AGV1#,GGV1# —
87510K — Heater Assy, Front Seat Cushion, RH
87510-0T010 note Heater Assy, Front Seat Cushion, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
87510-0T010 note Heater Assy, Front Seat Cushion, RH
2012-05 → 2012-06 ended
AGV1#,GGV1# —
87510-0T011 note Heater Assy, Front Seat Cushion, RH
2012-06 → 2014-08 ended
AGV1#,GGV1# —
87510-0T012 note Heater Assy, Front Seat Cushion, RH
2014-08 → 2016-12 ended
AGV1#,GGV1# —
87510M — Heater Assy, Front Seatback, RH
87530-0T010 note Heater Assy, Front Seatback, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
87530-0T010 note Heater Assy, Front Seatback, RH
2012-05 → 2014-07 ended
AGV1#,GGV1# —
87530-0T011 note Heater Assy, Front Seatback, RH
2014-08 → 2016-12 ended
AGV1#,GGV1# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
