Toyota Venza

2008-11 → 2016-12 · chassis AGV1#,GGV1# · catalogue 286430 · United States

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

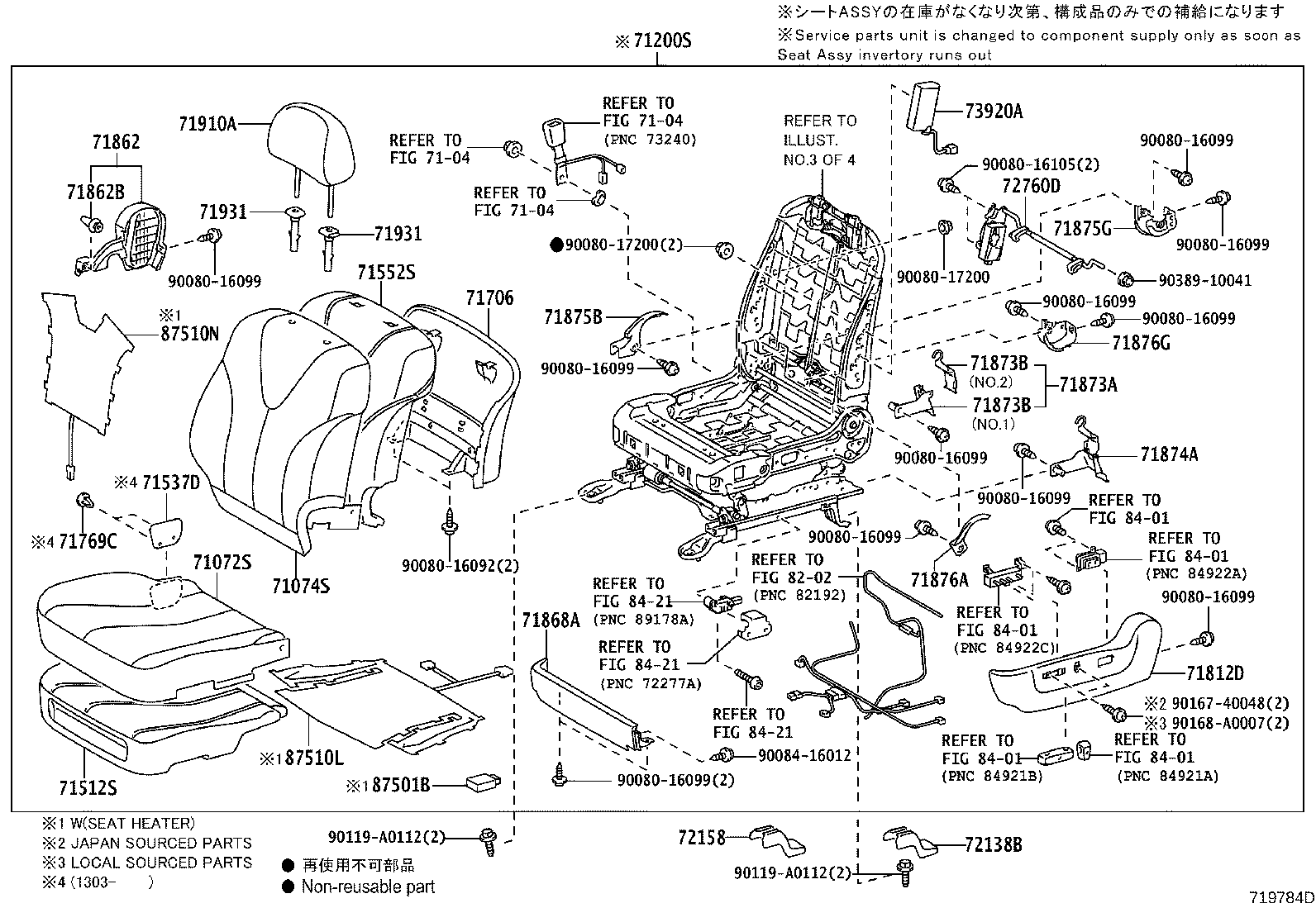

Exploded illustration 719784D 71512S — PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) (5 parts) 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (31 parts) 87510N — HEATER ASSY, FRONT SEATBACK, LH (3 parts) 87510L — HEATER ASSY, FRONT SEAT CUSHION, LH (4 parts) 71910A — HEADREST ASSY, FRONT SEAT (33 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (10 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (10 parts) 71706 — BOARD SUB-ASSY, FRONT SEATBACK, LH (11 parts) 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (11 parts) 71875G — COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) (5 parts) 71876G — COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) (5 parts) 71875B — COVER, RECLINING ADJUSTER INSIDE, RH (11 parts) 71876A — COVER, RECLINING ADJUSTER INSIDE, LH (11 parts) 90119A0112 — not listed in this catalogue 90119A0112 — not listed in this catalogue 9008016092 — not listed in this catalogue 71812D — SHIELD, FRONT SEAT CUSHION, LH (11 parts) 73920A — AIRBAG ASSY, FRONT SEAT, LH (2 parts) 71552S — PAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (2 parts) 71200S — SEAT ASSY, FRONT LH (20 parts) 71072S — COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (40 parts) 72138B — COVER, SEAT TRACK, LH (4 parts) 72158 — COVER, SEAT TRACK BRACKET, INNER LH (4 parts) 71868A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH (9 parts) 72760D — ADJUSTER ASSY, LUMBAR SUPPORT, LH (4 parts) 9038910041 — not listed in this catalogue 9008016099 — not listed in this catalogue 9008016099 — not listed in this catalogue 9008016099 — not listed in this catalogue 9008016099 — not listed in this catalogue 9008016099 — not listed in this catalogue 9008016099 — not listed in this catalogue 9008016099 — not listed in this catalogue 9008016099 — not listed in this catalogue 9008017200 — not listed in this catalogue 9008017200 — not listed in this catalogue 9008016099 — not listed in this catalogue 9008416012 — not listed in this catalogue 71862B — CLIP(FOR FRONT SEAT SHIELD, LH) (5 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8421 — not listed in this catalogue 8202 — not listed in this catalogue 8421 — not listed in this catalogue 8421 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 71873B — SHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1 (8 parts) 71873B — SHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1 (8 parts) 71874A — SHIELD, FRONT SEAT CUSHION, LOWER LH (5 parts) 9008016099 — not listed in this catalogue 71873A — SHIELD, FRONT SEAT CUSHION, LOWER (5 parts) 9008016099 — not listed in this catalogue 9016740048 — not listed in this catalogue 90168A0007 — not listed in this catalogue 9008016105 — not listed in this catalogue 71769C — CLIP, FRONT SEAT CUSHION COVER (3 parts) 71537D — PROTECTOR, FRONT SEAT CUSHION EDGE, LH (1 parts) 7104 — not listed in this catalogue 87501B — CONTROL SUB-ASSY, SEAT HEATER, LH (3 parts)
719784D · 30 callouts, 33 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
266 parts on this figure
Part number Description Fitment Price
71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71072-0T010-A1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71072-0T010-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71072-0T020-A0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71072-0T020-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71072-0T021-A0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2010-10 → 2012-05 ended
AGV1#,GGV1# —
71072-0T021-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2010-10 → 2012-05 ended
AGV1#,GGV1# —
71072-0T030-A1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71072-0T030-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71072-0T040-A0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71072-0T040-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71072-0T041-A0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2010-10 → 2012-05 ended
AGV1#,GGV1# —
71072-0T041-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2010-10 → 2012-05 ended
AGV1#,GGV1# —
71072-0T050-A0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71072-0T050-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71072-0T060-A0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71072-0T060-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71072-0T011-A2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-05 → 2013-03 ended
AGV1#,GGV1# —
71072-0T011-B2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-05 → 2013-03 ended
AGV1#,GGV1# —
71072-0T011-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-05 → 2013-03 ended
AGV1#,GGV1# —
71072-0T012-A2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-03 → 2016-12 ended
AGV1#,GGV1# —
71072-0T012-B2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-03 → 2016-12 ended
AGV1#,GGV1# —
71072-0T012-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-03 → 2016-12 ended
AGV1#,GGV1# —
71072-0T022-A1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-05 → 2013-03 ended
AGV1#,GGV1# —
71072-0T022-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-05 → 2013-03 ended
AGV1#,GGV1# —
71072-0T022-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-05 → 2013-03 ended
AGV1#,GGV1# —
71072-0T023-A1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-03 → 2014-08 ended
AGV1#,GGV1# —
71072-0T023-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-03 → 2014-08 ended
AGV1#,GGV1# —
71072-0T023-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-03 → 2014-08 ended
AGV1#,GGV1# —
71072-0T024-A2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71072-0T024-B2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71072-0T024-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71072-0T042-A1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-05 → 2013-03 ended
AGV1#,GGV1# —
71072-0T042-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-05 → 2013-03 ended
AGV1#,GGV1# —
71072-0T042-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-05 → 2013-03 ended
AGV1#,GGV1# —
71072-0T043-A1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-03 → 2014-08 ended
AGV1#,GGV1# —
71072-0T043-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-03 → 2014-08 ended
AGV1#,GGV1# —
71072-0T043-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-03 → 2014-08 ended
AGV1#,GGV1# —
71072-0T044-A2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71072-0T044-B2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71072-0T044-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71074-0T010-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71074-0T010-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71074-0T020-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2010-10 → 2012-05 ended
AGV1#,GGV1# —
71074-0T020-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71074-0T020-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71074-0T020-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2010-10 → 2012-05 ended
AGV1#,GGV1# —
71074-0T030-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71074-0T030-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71074-0T040-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2010-10 → 2012-05 ended
AGV1#,GGV1# —
71074-0T040-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71074-0T040-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71074-0T040-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2010-10 → 2012-05 ended
AGV1#,GGV1# —
71074-0T050-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71074-0T050-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71074-0T060-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71074-0T060-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71074-0T011-A1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71074-0T011-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71074-0T011-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71074-0T021-A1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71074-0T021-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71074-0T021-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71074-0T022-A2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71074-0T022-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71074-0T022-B3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71074-0T041-A1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71074-0T041-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71074-0T041-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71074-0T042-A2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71074-0T042-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71074-0T042-B3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71200S — Seat Assy, Front LH
71200-0T010-A4 note Seat Assy, Front LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71200-0T010-B4 note Seat Assy, Front LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71200-0T020-A1 note Seat Assy, Front LH
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71200-0T020-A1 note Seat Assy, Front LH
2010-10 → 2011-10 ended
AGV1#,GGV1# —
71200-0T020-B1 note Seat Assy, Front LH
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71200-0T020-B1 note Seat Assy, Front LH
2010-10 → 2011-10 ended
AGV1#,GGV1# —
71200-0T021-A0 note Seat Assy, Front LH
2011-10 → 2012-05 ended
AGV1#,GGV1# —
71200-0T021-B0 note Seat Assy, Front LH
2011-10 → 2012-05 ended
AGV1#,GGV1# —
71200-0T030-A1 note Seat Assy, Front LH
2010-10 → 2011-10 ended
AGV1#,GGV1# —
71200-0T030-A1 note Seat Assy, Front LH
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71200-0T030-B1 note Seat Assy, Front LH
2010-10 → 2011-10 ended
AGV1#,GGV1# —
71200-0T030-B1 note Seat Assy, Front LH
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71200-0T031-A0 note Seat Assy, Front LH
2011-10 → 2012-05 ended
AGV1#,GGV1# —
71200-0T031-B0 note Seat Assy, Front LH
2011-10 → 2012-05 ended
AGV1#,GGV1# —
71200-0T040-A2 note Seat Assy, Front LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71200-0T040-B2 note Seat Assy, Front LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71200-0T080-A1 note Seat Assy, Front LH
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71200-0T080-B1 note Seat Assy, Front LH
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71200-0T090-A1 note Seat Assy, Front LH
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71200-0T090-B1 note Seat Assy, Front LH
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71512S — Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71512-0T010 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71512-0T010 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71512-0T010 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71512-0T020 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71512-0T010 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71537D — Protector, Front Seat Cushion Edge, LH
71537-0T010 Protector, Front Seat Cushion Edge, LH
2013-03 → 2016-12 ended
AGV1#,GGV1# —
71552S — Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71552-0T010 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71552-0T010 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71706 — Board Sub-assy, Front Seatback, LH
71706-06010-A0 note Board Sub-assy, Front Seatback, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71706-06010-A0 note Board Sub-assy, Front Seatback, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71706-06010-A0 note Board Sub-assy, Front Seatback, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71706-06010-B2 note Board Sub-assy, Front Seatback, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71706-06010-B2 note Board Sub-assy, Front Seatback, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71706-06010-B2 note Board Sub-assy, Front Seatback, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71706-06060-A0 note Board Sub-assy, Front Seatback, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71706-06060-B1 note Board Sub-assy, Front Seatback, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71706-06010-A2 note Board Sub-assy, Front Seatback, LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71706-06010-B4 note Board Sub-assy, Front Seatback, LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71706-06010-C2 note Board Sub-assy, Front Seatback, LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71769C — Clip, Front Seat Cushion Cover
71769-60010-A0 note Clip, Front Seat Cushion Cover
2013-03 → 2016-12 ended
AGV1#,GGV1# —
71769-60010-C0 note Clip, Front Seat Cushion Cover
2013-03 → 2016-12 ended
AGV1#,GGV1# —
71769-60010-P1 note Clip, Front Seat Cushion Cover
2013-03 → 2016-12 ended
AGV1#,GGV1# —
71812D — Shield, Front Seat Cushion, LH
71812-0T010-A0 note Shield, Front Seat Cushion, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71812-0T010-A0 note Shield, Front Seat Cushion, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71812-0T010-A0 note Shield, Front Seat Cushion, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71812-0T010-B0 note Shield, Front Seat Cushion, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71812-0T010-B0 note Shield, Front Seat Cushion, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71812-0T010-B0 note Shield, Front Seat Cushion, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71812-0T020-A0 note Shield, Front Seat Cushion, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71812-0T020-B0 note Shield, Front Seat Cushion, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71812-0T010-A0 note Shield, Front Seat Cushion, LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71812-0T010-B0 note Shield, Front Seat Cushion, LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71812-0T010-C0 note Shield, Front Seat Cushion, LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71862 — Shield, Front Seat Cushion, Inner LH
71862-06060-A0 note Shield, Front Seat Cushion, Inner LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71862-06060-A0 note Shield, Front Seat Cushion, Inner LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71862-06060-A0 note Shield, Front Seat Cushion, Inner LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71862-06060-B2 note Shield, Front Seat Cushion, Inner LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71862-06060-B2 note Shield, Front Seat Cushion, Inner LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71862-06060-B2 note Shield, Front Seat Cushion, Inner LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71862-AA090-A0 note Shield, Front Seat Cushion, Inner LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71862-AA090-B5 note Shield, Front Seat Cushion, Inner LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71862-06060-A0 note Shield, Front Seat Cushion, Inner LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71862-06060-B2 note Shield, Front Seat Cushion, Inner LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71862-06060-C0 note Shield, Front Seat Cushion, Inner LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71862B — Clip(FOR FRONT SEAT SHIELD, LH)
67921-50050-B0 note Clip(FOR FRONT SEAT SHIELD, LH)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
67921-50050-B0 note Clip(FOR FRONT SEAT SHIELD, LH)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
67921-50050-B0 note Clip(FOR FRONT SEAT SHIELD, LH)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71769-33020 Clip(FOR FRONT SEAT SHIELD, LH)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
67921-50050-B0 note Clip(FOR FRONT SEAT SHIELD, LH)
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71868A — Shield, Front Seat Cushion, Inner NO.1 LH
71868-06040-A0 note Shield, Front Seat Cushion, Inner NO.1 LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71868-06040-A0 note Shield, Front Seat Cushion, Inner NO.1 LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71868-06040-A0 note Shield, Front Seat Cushion, Inner NO.1 LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71868-06040-B2 note Shield, Front Seat Cushion, Inner NO.1 LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71868-06040-B2 note Shield, Front Seat Cushion, Inner NO.1 LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71868-06040-B2 note Shield, Front Seat Cushion, Inner NO.1 LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71868-06040-A0 note Shield, Front Seat Cushion, Inner NO.1 LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71868-06040-B2 note Shield, Front Seat Cushion, Inner NO.1 LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71868-06040-C0 note Shield, Front Seat Cushion, Inner NO.1 LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71873A — Shield, Front Seat Cushion, Lower
71806-0C020-C0 note Shield, Front Seat Cushion, Lower
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71806-0C020-C0 note Shield, Front Seat Cushion, Lower
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71806-0C020-C0 note Shield, Front Seat Cushion, Lower
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71873-0C060-C0 note Shield, Front Seat Cushion, Lower
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71806-0C020-C0 note Shield, Front Seat Cushion, Lower
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71873B — Shield, Front Seat Cushion, Lower RH, NO.1
71873-0C080-C0 note Shield, Front Seat Cushion, Lower RH, NO.1
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71873-0C080-C0 note Shield, Front Seat Cushion, Lower RH, NO.1
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71873-0C080-C0 note Shield, Front Seat Cushion, Lower RH, NO.1
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71873-0C090-C0 note Shield, Front Seat Cushion, Lower RH, NO.1
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71873-0C090-C0 note Shield, Front Seat Cushion, Lower RH, NO.1
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71873-0C090-C0 note Shield, Front Seat Cushion, Lower RH, NO.1
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71873-0C080-C0 note Shield, Front Seat Cushion, Lower RH, NO.1
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71873-0C090-C0 note Shield, Front Seat Cushion, Lower RH, NO.1
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71874A — Shield, Front Seat Cushion, Lower LH
71806-07020 note Shield, Front Seat Cushion, Lower LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71806-07020 note Shield, Front Seat Cushion, Lower LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71806-07020 note Shield, Front Seat Cushion, Lower LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71874-0C030-C0 note Shield, Front Seat Cushion, Lower LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71806-07020 Shield, Front Seat Cushion, Lower LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71875B — Cover, Reclining Adjuster Inside, RH
71875-02130-A0 note Cover, Reclining Adjuster Inside, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71875-02130-B3 note Cover, Reclining Adjuster Inside, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71876-AA090-A0 note Cover, Reclining Adjuster Inside, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71876-AA090-A0 note Cover, Reclining Adjuster Inside, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71876-AA090-A0 note Cover, Reclining Adjuster Inside, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71876-AA090-B4 note Cover, Reclining Adjuster Inside, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71876-AA090-B4 note Cover, Reclining Adjuster Inside, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71876-AA090-B4 note Cover, Reclining Adjuster Inside, RH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71876-AA090-A0 note Cover, Reclining Adjuster Inside, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71876-AA090-B4 note Cover, Reclining Adjuster Inside, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71876-AA090-C0 note Cover, Reclining Adjuster Inside, RH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71875G — Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71814-0E020 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71814-0E020 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71814-0E020 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71875-AA060 Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71814-0E020 Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71876A — Cover, Reclining Adjuster Inside, LH
71875-0E020-A0 note Cover, Reclining Adjuster Inside, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71875-0E020-A0 note Cover, Reclining Adjuster Inside, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71875-0E020-A0 note Cover, Reclining Adjuster Inside, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71875-0E020-B0 note Cover, Reclining Adjuster Inside, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71875-0E020-B0 note Cover, Reclining Adjuster Inside, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71875-0E020-B0 note Cover, Reclining Adjuster Inside, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71876-AD020-A0 note Cover, Reclining Adjuster Inside, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71876-AD020-B2 note Cover, Reclining Adjuster Inside, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71875-0E020-A0 note Cover, Reclining Adjuster Inside, LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71875-0E020-B0 note Cover, Reclining Adjuster Inside, LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71875-0E020-C0 note Cover, Reclining Adjuster Inside, LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71876G — Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71813-0E020 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71813-0E020 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71813-0E020 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71876-AA060 Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71813-0E020 Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71910A — Headrest Assy, Front Seat
71910-0T010-A1 note Headrest Assy, Front Seat
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71910-0T010-B1 note Headrest Assy, Front Seat
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71910-0T020-A1 note Headrest Assy, Front Seat
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71910-0T020-A1 note Headrest Assy, Front Seat
2010-10 → 2011-10 ended
AGV1#,GGV1# —
71910-0T020-A1 note Headrest Assy, Front Seat
2010-10 → 2011-10 ended
AGV1#,GGV1# —
71910-0T020-A1 note Headrest Assy, Front Seat
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71910-0T020-B1 note Headrest Assy, Front Seat
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71910-0T020-B1 note Headrest Assy, Front Seat
2010-10 → 2011-10 ended
AGV1#,GGV1# —
71910-0T020-B1 note Headrest Assy, Front Seat
2010-10 → 2011-10 ended
AGV1#,GGV1# —
71910-0T020-B1 note Headrest Assy, Front Seat
2008-11 → 2009-09 ended
AGV1#,GGV1# —
71910-0T021-A1 note Headrest Assy, Front Seat
2011-10 → 2012-05 ended
AGV1#,GGV1# —
71910-0T021-A1 note Headrest Assy, Front Seat
2011-10 → 2012-05 ended
AGV1#,GGV1# —
71910-0T021-B1 note Headrest Assy, Front Seat
2011-10 → 2012-05 ended
AGV1#,GGV1# —
71910-0T021-B1 note Headrest Assy, Front Seat
2011-10 → 2012-05 ended
AGV1#,GGV1# —
71910-0T040-A1 note Headrest Assy, Front Seat
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71910-0T040-A1 note Headrest Assy, Front Seat
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71910-0T040-B1 note Headrest Assy, Front Seat
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71910-0T040-B1 note Headrest Assy, Front Seat
2009-09 → 2010-10 ended
AGV1#,GGV1# —
71910-0T011-A1 note Headrest Assy, Front Seat
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71910-0T011-B1 note Headrest Assy, Front Seat
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71910-0T011-C0 note Headrest Assy, Front Seat
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71910-0T030-A0 note Headrest Assy, Front Seat
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71910-0T030-A0 note Headrest Assy, Front Seat
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71910-0T030-B0 note Headrest Assy, Front Seat
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71910-0T030-B0 note Headrest Assy, Front Seat
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71910-0T030-C0 note Headrest Assy, Front Seat
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71910-0T030-C0 note Headrest Assy, Front Seat
2012-05 → 2014-08 ended
AGV1#,GGV1# —
71910-0T031-A1 note Headrest Assy, Front Seat
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71910-0T031-A1 note Headrest Assy, Front Seat
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71910-0T031-B1 note Headrest Assy, Front Seat
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71910-0T031-B1 note Headrest Assy, Front Seat
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71910-0T031-C0 note Headrest Assy, Front Seat
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71910-0T031-C0 note Headrest Assy, Front Seat
2014-08 → 2016-12 ended
AGV1#,GGV1# —
71931 — Support, Front Seat Headrest
71930-44020-A0 note Support, Front Seat Headrest
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71930-44020-B8 note Support, Front Seat Headrest
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71931-47010-A0 note Support, Front Seat Headrest
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71931-47010-P3 note Support, Front Seat Headrest
2008-11 → 2012-05 ended
AGV1#,GGV1# —
71930-44020-A0 note Support, Front Seat Headrest
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71930-44020-B8 note Support, Front Seat Headrest
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71930-44020-C0 note Support, Front Seat Headrest
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71931-47010-A0 note Support, Front Seat Headrest
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71931-47010-C0 note Support, Front Seat Headrest
2012-05 → 2016-12 ended
AGV1#,GGV1# —
71931-47010-P3 note Support, Front Seat Headrest
2012-05 → 2016-12 ended
AGV1#,GGV1# —
72138B — Cover, Seat Track, LH
72138-0T010-C0 note Cover, Seat Track, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
72138-0T020-C0 note Cover, Seat Track, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
72138-0T020-C0 note Cover, Seat Track, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
72138-0T020-C0 note Cover, Seat Track, LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
72158 — Cover, Seat Track Bracket, Inner LH
72158-0T010-C0 note Cover, Seat Track Bracket, Inner LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
72158-0T010-C0 note Cover, Seat Track Bracket, Inner LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
72158-0T020-C0 note Cover, Seat Track Bracket, Inner LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
72158-0T010-C0 note Cover, Seat Track Bracket, Inner LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
72760D — Adjuster Assy, Lumbar Support, LH
72760-0E010 note Adjuster Assy, Lumbar Support, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
72760-0E010 note Adjuster Assy, Lumbar Support, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
72760-0E010 note Adjuster Assy, Lumbar Support, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
72760-0E010 Adjuster Assy, Lumbar Support, LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
73920A — Airbag Assy, Front Seat, LH
73920-0T010 Airbag Assy, Front Seat, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
73920-0T010 Airbag Assy, Front Seat, LH
2012-05 → 2016-12 ended
AGV1#,GGV1# —
87501B — Control Sub-assy, Seat Heater, LH
87501-0T010 note Control Sub-assy, Seat Heater, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
87501-0T010 note Control Sub-assy, Seat Heater, LH
2012-05 → 2014-08 ended
AGV1#,GGV1# —
87501-0T011 note Control Sub-assy, Seat Heater, LH
2014-08 → 2016-12 ended
AGV1#,GGV1# —
87510L — Heater Assy, Front Seat Cushion, LH
87510-0T010 note Heater Assy, Front Seat Cushion, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
87510-0T010 note Heater Assy, Front Seat Cushion, LH
2012-05 → 2012-06 ended
AGV1#,GGV1# —
87510-0T011 note Heater Assy, Front Seat Cushion, LH
2012-06 → 2014-08 ended
AGV1#,GGV1# —
87510-0T012 note Heater Assy, Front Seat Cushion, LH
2014-08 → 2016-12 ended
AGV1#,GGV1# —
87510N — Heater Assy, Front Seatback, LH
87530-0T010 note Heater Assy, Front Seatback, LH
2008-11 → 2012-05 ended
AGV1#,GGV1# —
87530-0T010 note Heater Assy, Front Seatback, LH
2012-05 → 2014-07 ended
AGV1#,GGV1# —
87530-0T011 note Heater Assy, Front Seatback, LH
2014-08 → 2016-12 ended
AGV1#,GGV1# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
