Toyota Venza

2008-11 → 2016-12 · chassis AGV1#,GGV1# · catalogue 286430 · United States

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

16 part groups · 2 illustrations

Illustrations

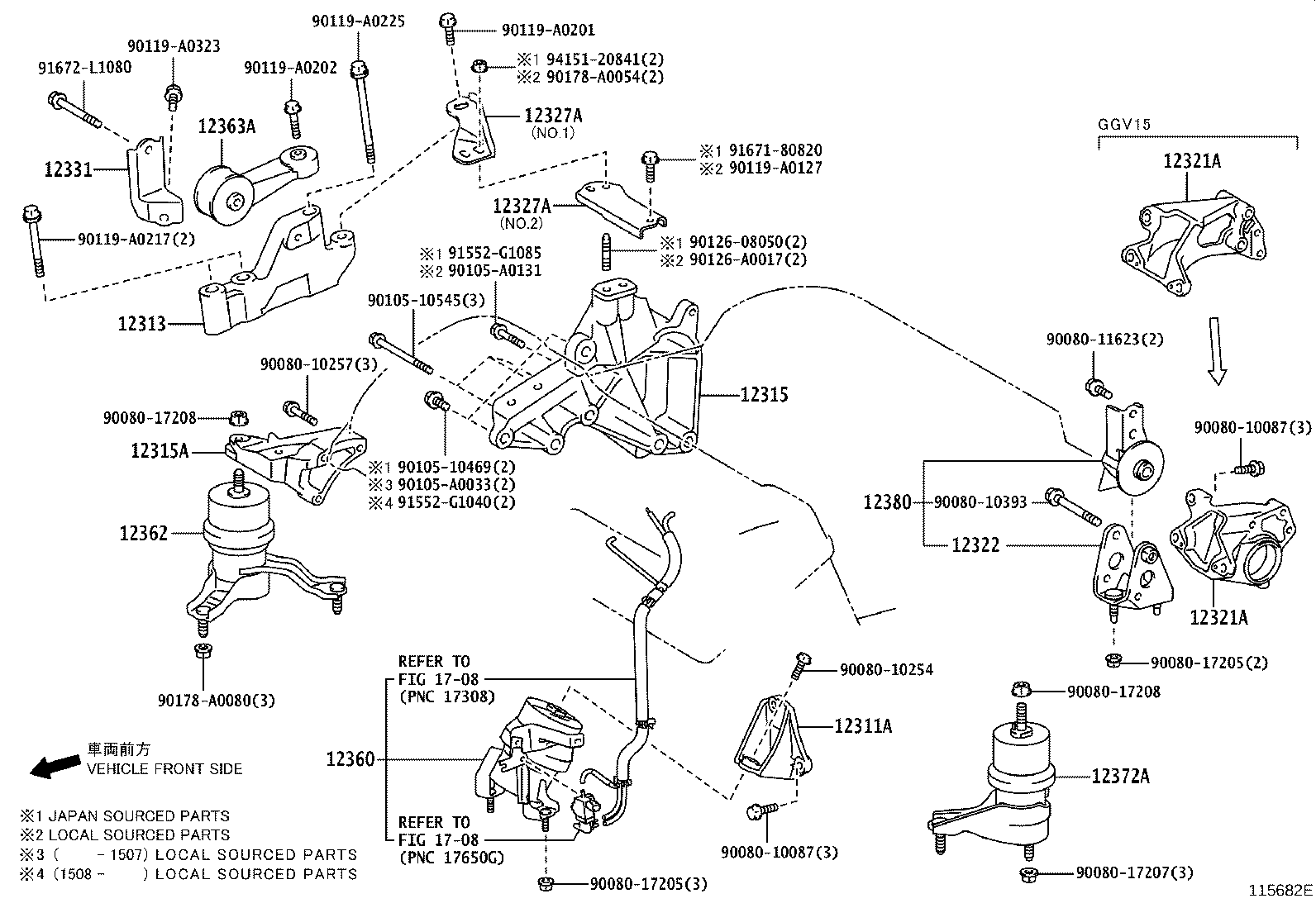

Figure 115870H 115870H 2009-01 → — Figure 115682E 115682E 2008-11 → —

Part groups

PNCDescription
12309 Rod Sub-assy, Engine Moving Control
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12313 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
12315 Bracket, Engine Mounting, Front NO.1 LH
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12322 Bracket, Engine Mounting, Rear NO.2
12327A Stay, Engine Mounting, NO.2 RH
12331 Stay, Engine Mounting, NO.3 RH
12341 Spacer, Engine Mounting
12360 Insulator Assy, Engine Mounting, Front
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12362 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12363A Rod, Engine Moving Control
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12380 Insulator Assy, Engine Mounting, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
