Toyota Venza

2008-11 → 2016-12 · chassis AGV1#,GGV1# · catalogue 286430 · United States

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

17 part groups · 2 illustrations

Illustrations

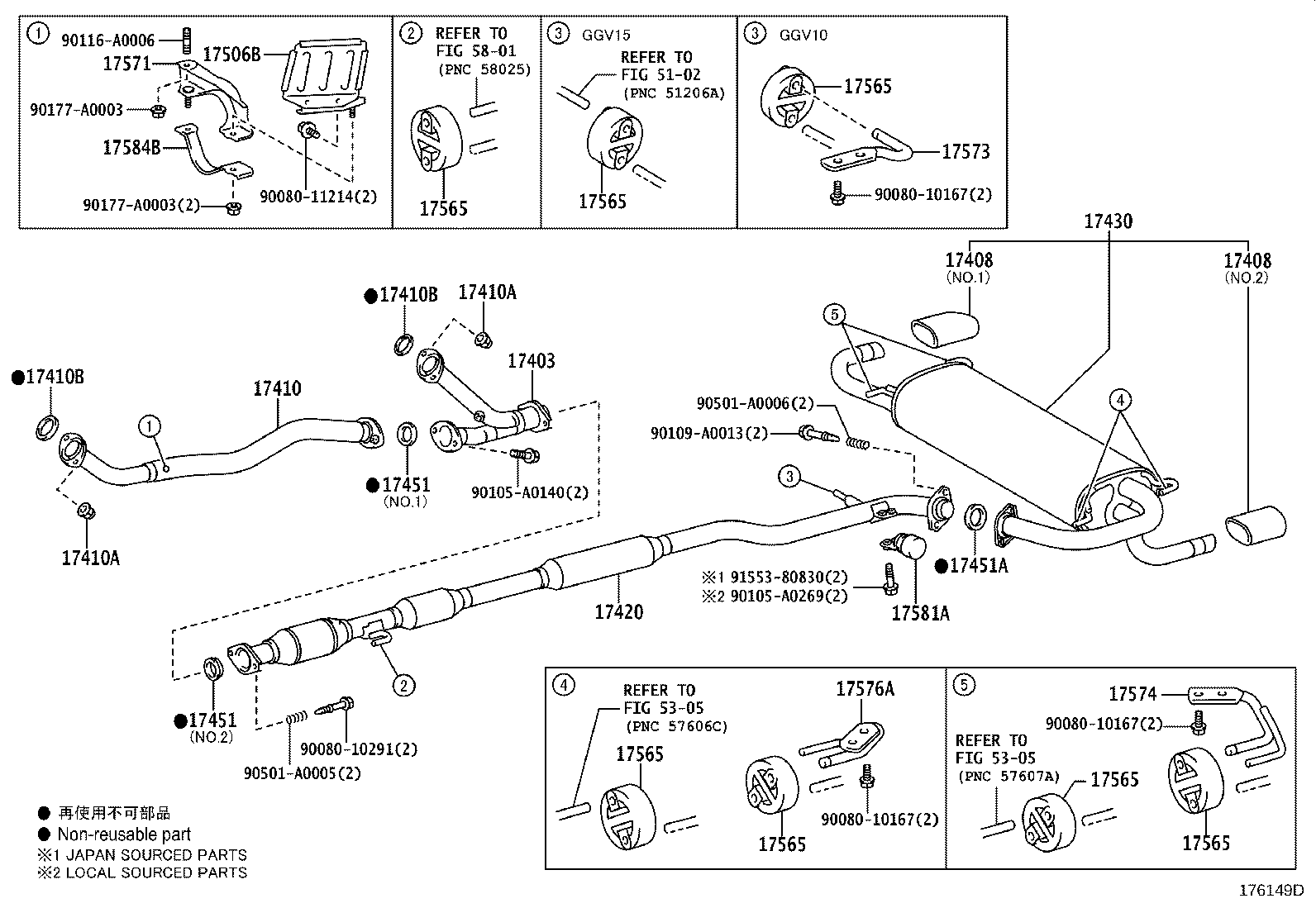

Figure 17C686A 17C686A 2009-01 → — Figure 176149D 176149D 2008-11 → —

Part groups

PNCDescription
17403 Pipe Sub-assy, Exhaust, Front NO.3
17408 Baffle Sub Assy, Exhaust Tailpipe
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17506B Bracket Sub-assy, Exhaust Pipe Support
17565 Support, Exhaust Pipe, NO.5
17571 Bracket, Exhaust Pipe Support, NO.1
17573 Bracket, Exhaust Pipe NO.1 Support, Lower
17574 Bracket, Exhaust Pipe Support, NO.4
17576A Bracket, Exhaust Pipe Support, NO.6
17581A Damper, Exhaust Pipe
17584B Bracket, Exhaust Pipe NO.1 Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
