Toyota Venza

2008-11 → 2016-12 · chassis AGV1#,GGV1# · catalogue 286430 · United States

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Case & Extension Housing

25 part groups · 3 illustrations

Illustrations

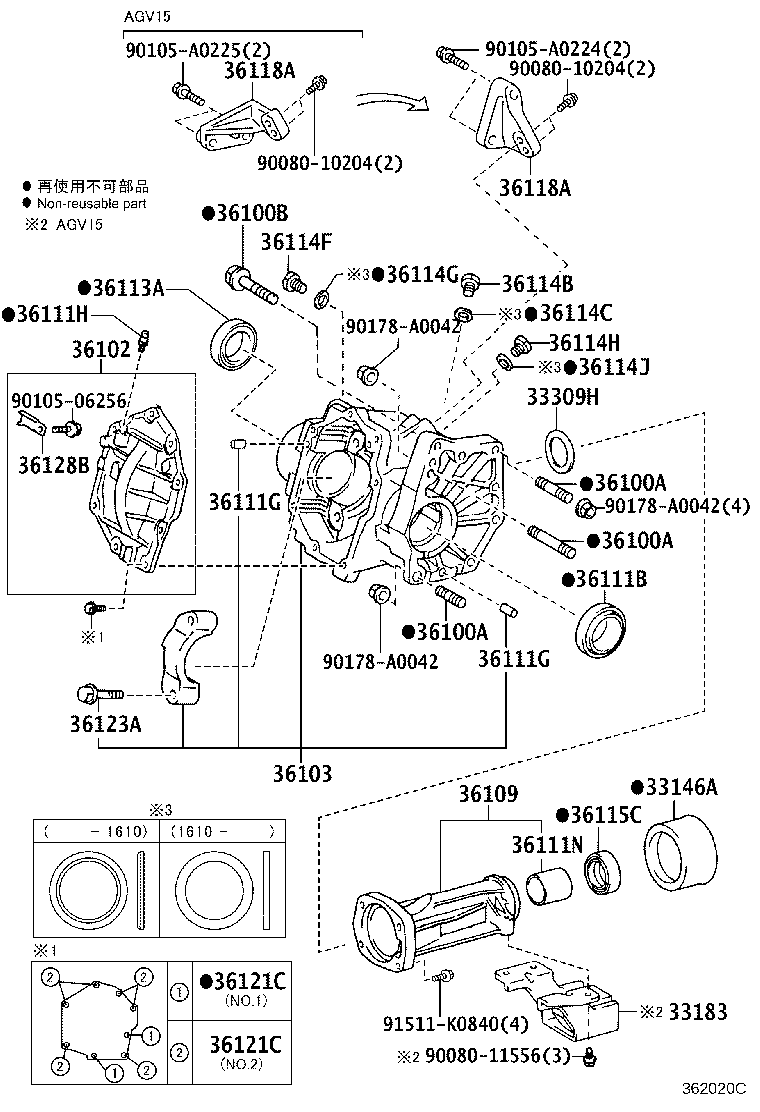

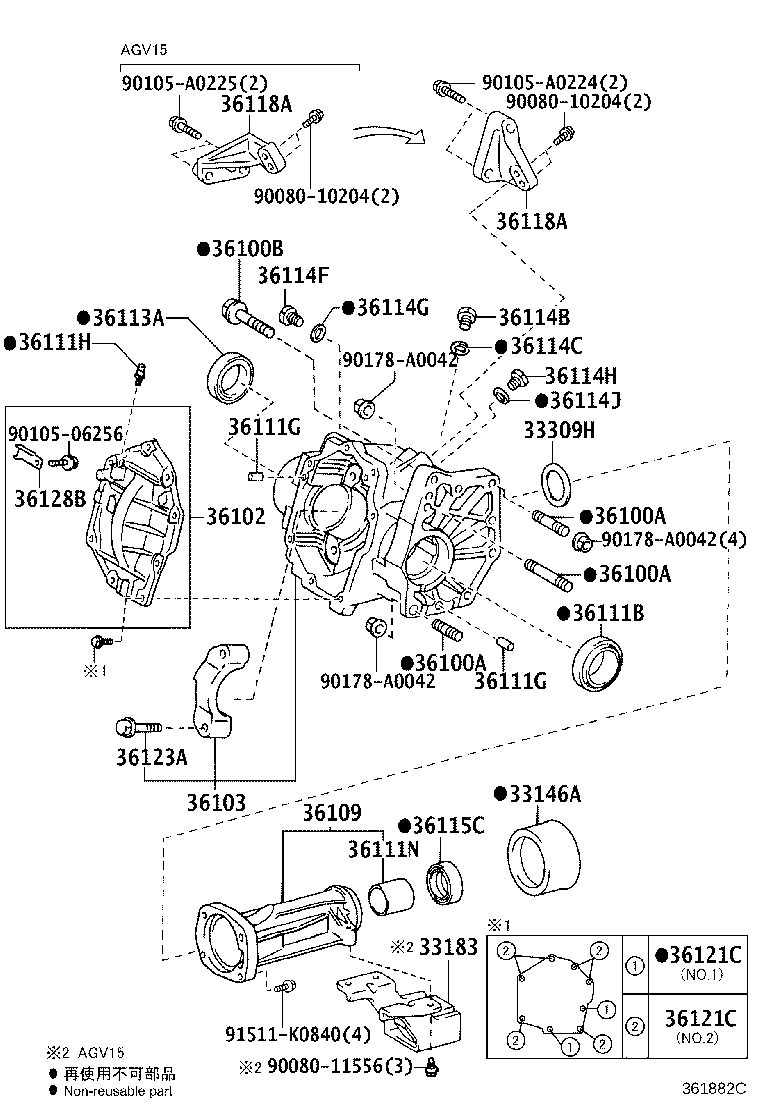

Figure 361490C 361490C 2008-11 → 2014-08 Figure 361882C 361882C 2014-08 → 2015-04 Figure 362020C 362020C 2015-04 → —

Part groups

PNCDescription
33146A Deflector, Transfer Extension Housing Dust
33183 Damper, Transfer Dynamic
33309H Washer, Transfer Output Shaft
36100A Bolt, Stud (FOR TRANSFER & TRANSAXLE SETTING)
36100B Bolt (FOR TRANSFER & TRANSAXLE SETTING)
36102 Cover Sub-assy, Transfer Case
36103 Case Sub-assy, Transfer
36109 Housing Sub-assy, Transfer Extension
36111B Seal, Oil (FOR TRANSFER CASE)
36111G Pin, Straight (FOR TRANSFER CASE)
36111H Plug, Breather (FOR TRANSFER CASE)
36111N Bush (FOR TRANSFER CASE)
36113A Seal, Oil (FOR TRANSFER CASE RH)
36114B Plug, NO.1 (FOR TRANSFER CASE)
36114C Gasket, NO.1 (FOR TRANSFER CASE)
36114F Plug (FOR TRANSFER DRAIN)
36114G Gasket (FOR TRANSFER DRAIN PLUG)
36114H Plug, NO.2 (FOR TRANSFER CASE)
36114J Gasket, NO.2 (FOR TRANSFER CASE)
36115C Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING)
36118A Plate, Transfer Stiffener, RH
36121 Cover, Transfer Case, NO.1
36121C Bolt, Washer Based Head Hexagon (FOR TRANSFER CASE COVER)
36123A Bolt, Differential Bearing Cap
36128B Deflector, Breather Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
