Toyota Venza
2008-11 → 2016-12 · chassis AGV1#,GGV1# · catalogue 286430 · United States
Supported model
Data version 2016-12

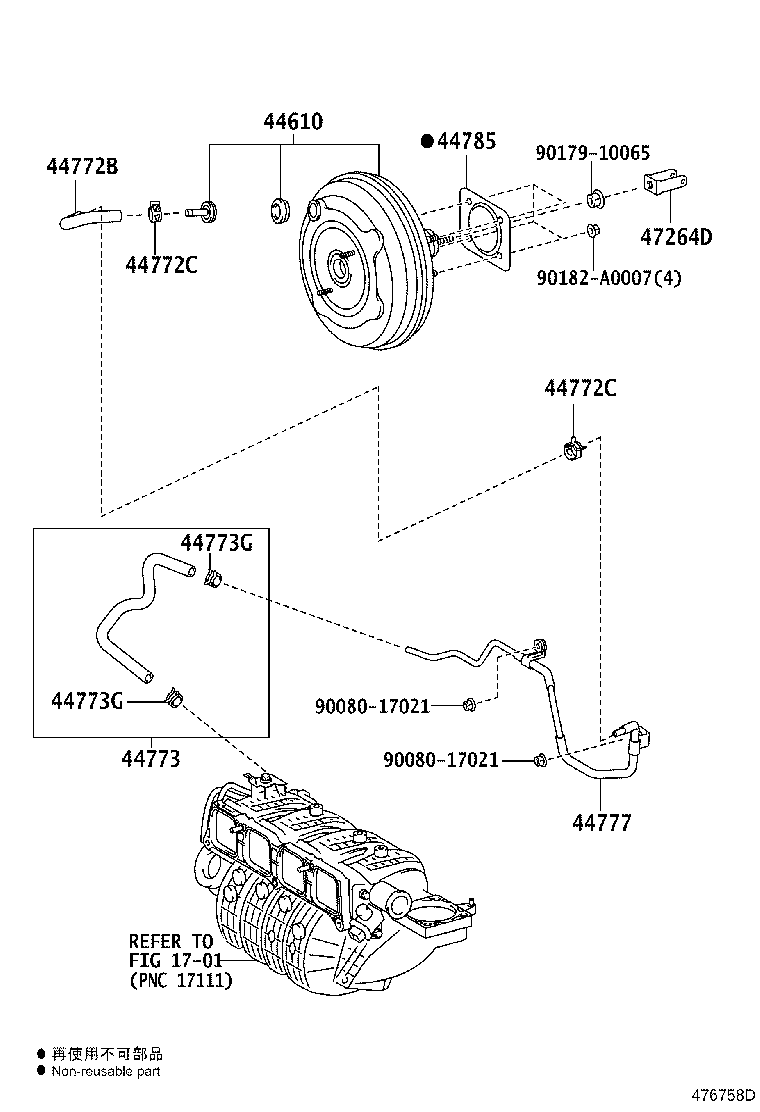

Brake Booster & Vacuum Tube
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44750 | Hose Assy, Vacuum |
| 44772B | Hose, Check Valve TO Brake Booster |
| 44772C | Clip(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) |
| 44773 | Hose, Vacuum, NO.2 |
| 44773G | Clip(FOR UNION TO CHECK VALVE HOSE) |
| 44777 | Connector, Vacuum Hose, NO.1 |
| 44783 | Clamp, Vacuum Hose |
| 44785 | Gasket, Brake Booster |
| 47264D | Clevis, Brake Master Cylinder Push Rod |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
