Toyota Venza
2008-11 → 2016-12 · chassis AGV1#,GGV1# · catalogue 286430 · United States
Supported model
Data version 2016-12

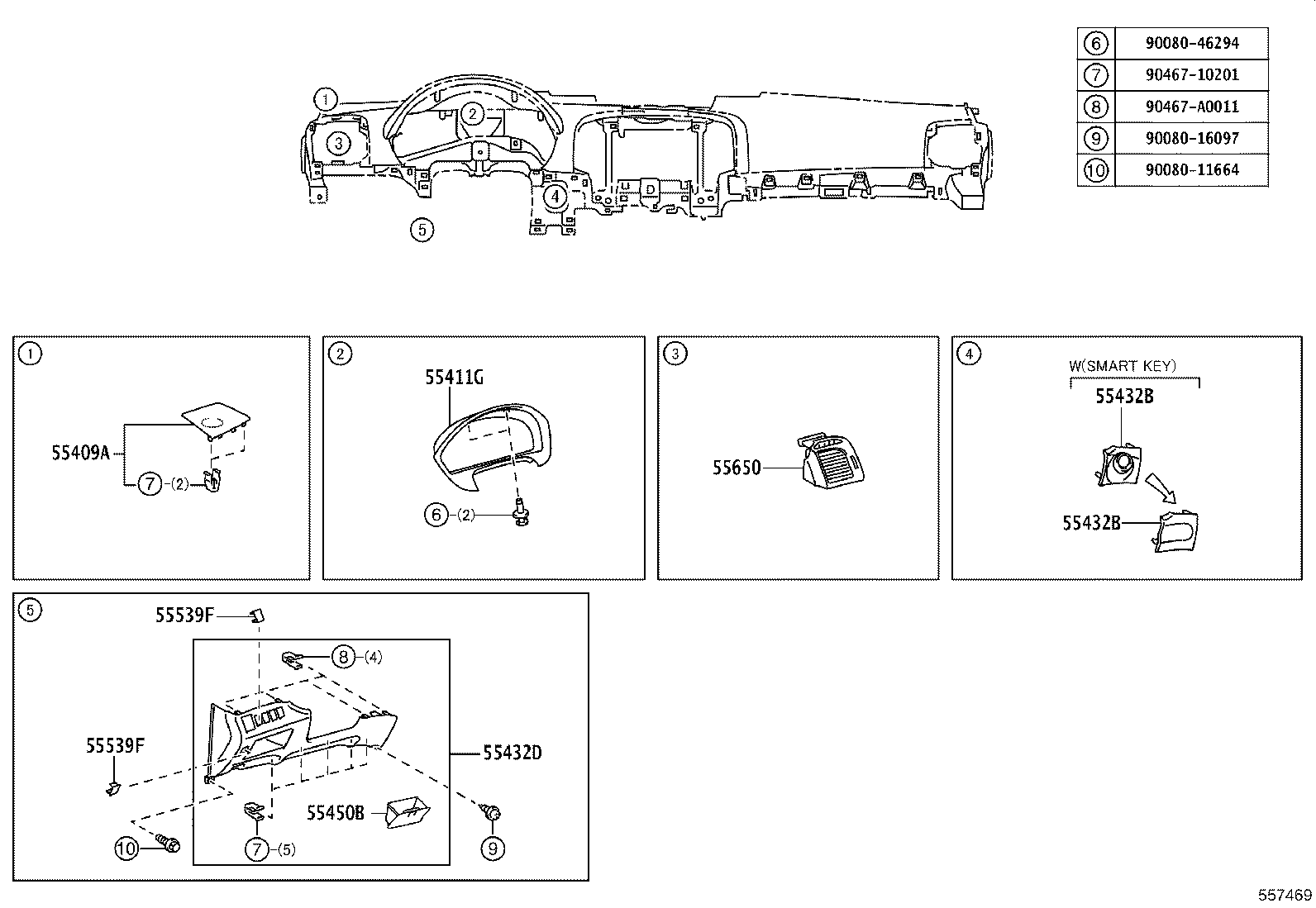

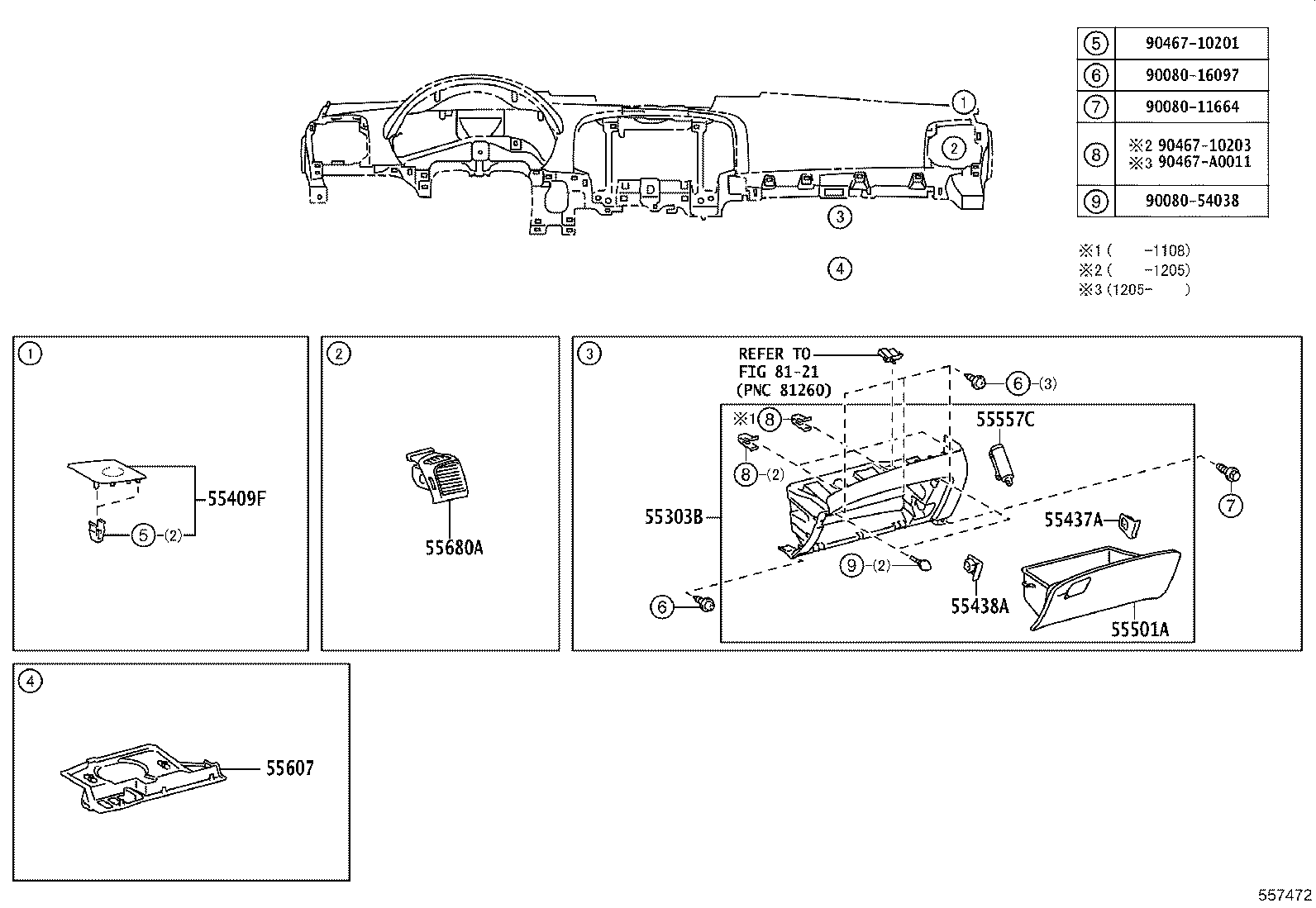

Instrument Panel & Glove Compartment
34 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55328A | Stay, Instrument Panel, NO.3 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55333 | Reinforcement, Instrument Panel, NO.3 |
| 55345A | Clip, Instrument Panel, NO.1 |
| 55346A | Clip, Instrument Panel, NO.2 |
| 55381B | Bracket, Finish Panel Mounting, NO.1 |
| 55382 | Bracket, Finish Panel Mounting, NO.2 |
| 55394B | Bolt, Instrument Panel |
| 55394C | Bolt, Instrument Panel |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55409A | Panel Sub-assy, Instrument Panel Speaker |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55432D | Panel, Instrument Panel Finish, Lower NO.1 |
| 55437A | Retainer, Instrument Panel Finish Panel, NO.1 |
| 55438A | Retainer, Instrument Panel Finish Panel, NO.2 |
| 55450B | Box Assy, Coin |
| 55501A | Door Sub-assy, Glove Compartment |
| 55539F | Cover, Spare Switch Hole |
| 55557C | Damper, Glove Compartment Door |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55680A | Register Assy, Instrument Panel, NO.4 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 73900 | Airbag Assy, Instrument Panel, Lower NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 82140 | Wire Assy, Instrument Panel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
