Toyota Venza

2008-11 → 2016-12 · chassis AGV1#,GGV1# · catalogue 286430 · United States

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

15 part groups · 2 illustrations

Illustrations

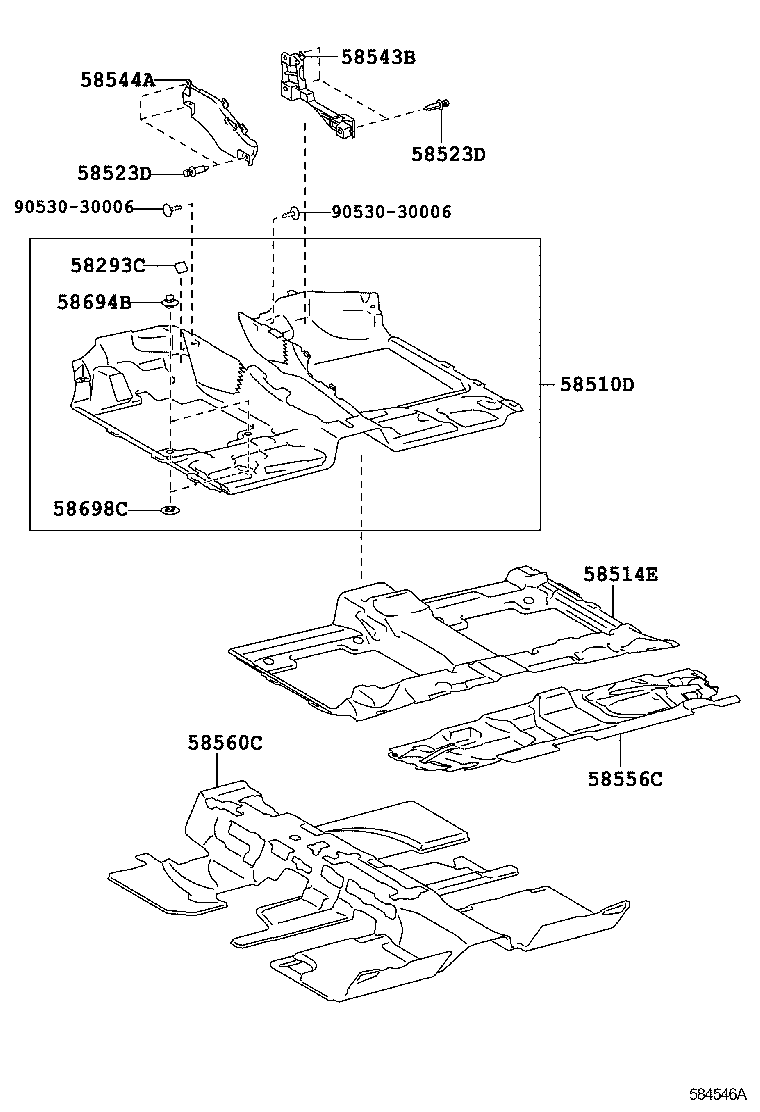

Figure 583471 583471 2008-11 → 2012-05 Figure 584546A 584546A 2012-05 → —

Part groups

PNCDescription
58293C Pad, Front Floor
58510D Carpet Assy, Floor, Front
58514E Carpet, Floor, Rear
58523D Clip(FOR FLOOR CARPET SET BRACKET)
58540C Mat Assy, Floor, Rear
58543B Bracket, Floor Carpet, RH
58544A Bracket, Floor Carpet, LH
58556C Silencer, Rear Floor
58560C Carpet Assy, NO.3 Seat Leg Space
58561C Silencer, Front Floor, NO.1
58562C Silencer, Front Floor, NO.2
58563Q Silencer, Front Floor, NO.3
58564A Silencer, Front Floor, NO.4
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
