Toyota Venza

2008-11 → 2016-12 · chassis AGV1#,GGV1# · catalogue 286430 · United States

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

13 part groups · 2 illustrations

Illustrations

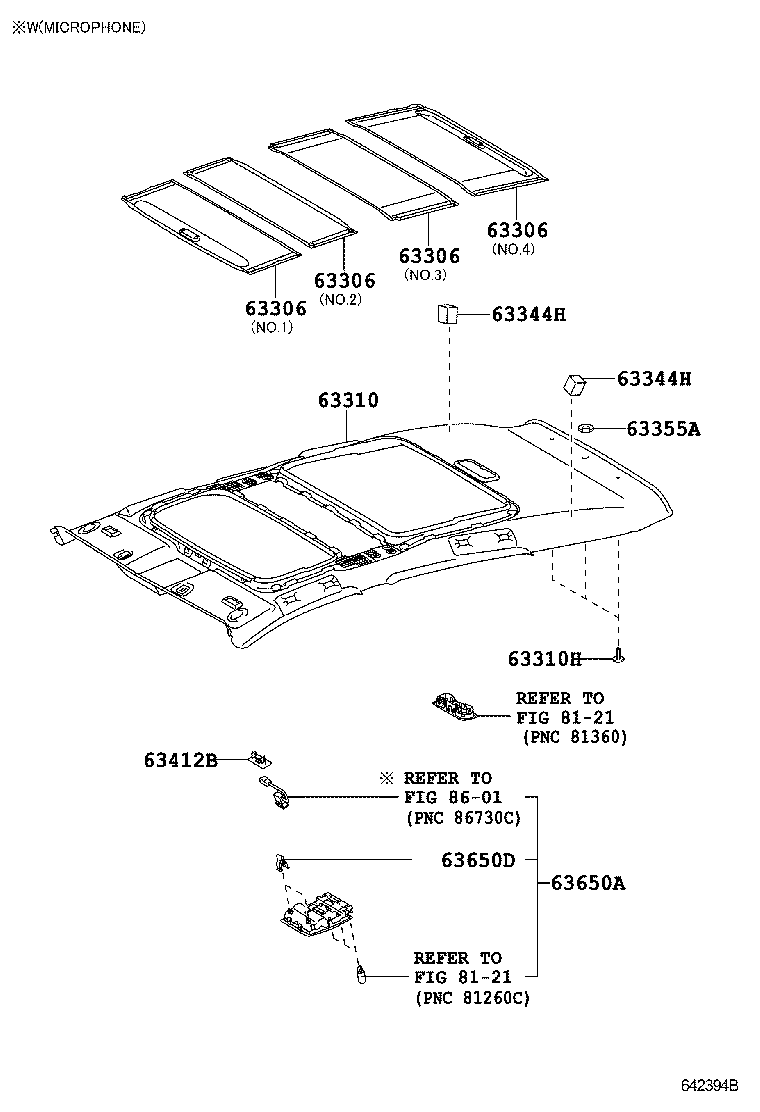

Figure 642393C 642393C 2008-11 → — Figure 642394B 642394B 2009-01 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63344H Pad, Roof Silencer, NO.4
63355A Pad, Roof Silencer, NO.14
63412B Retainer, Roof Console
63650A Box Assy, Roof Console
63650D Clip(FOR ROOF CONSOLE BOX)
66413B Spacer, Side Rail, Front RH
66423 Spacer, Side Rail, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
