Toyota Venza
2008-11 → 2016-12 · chassis AGV1#,GGV1# · catalogue 286430 · United States
Supported model
Data version 2016-12

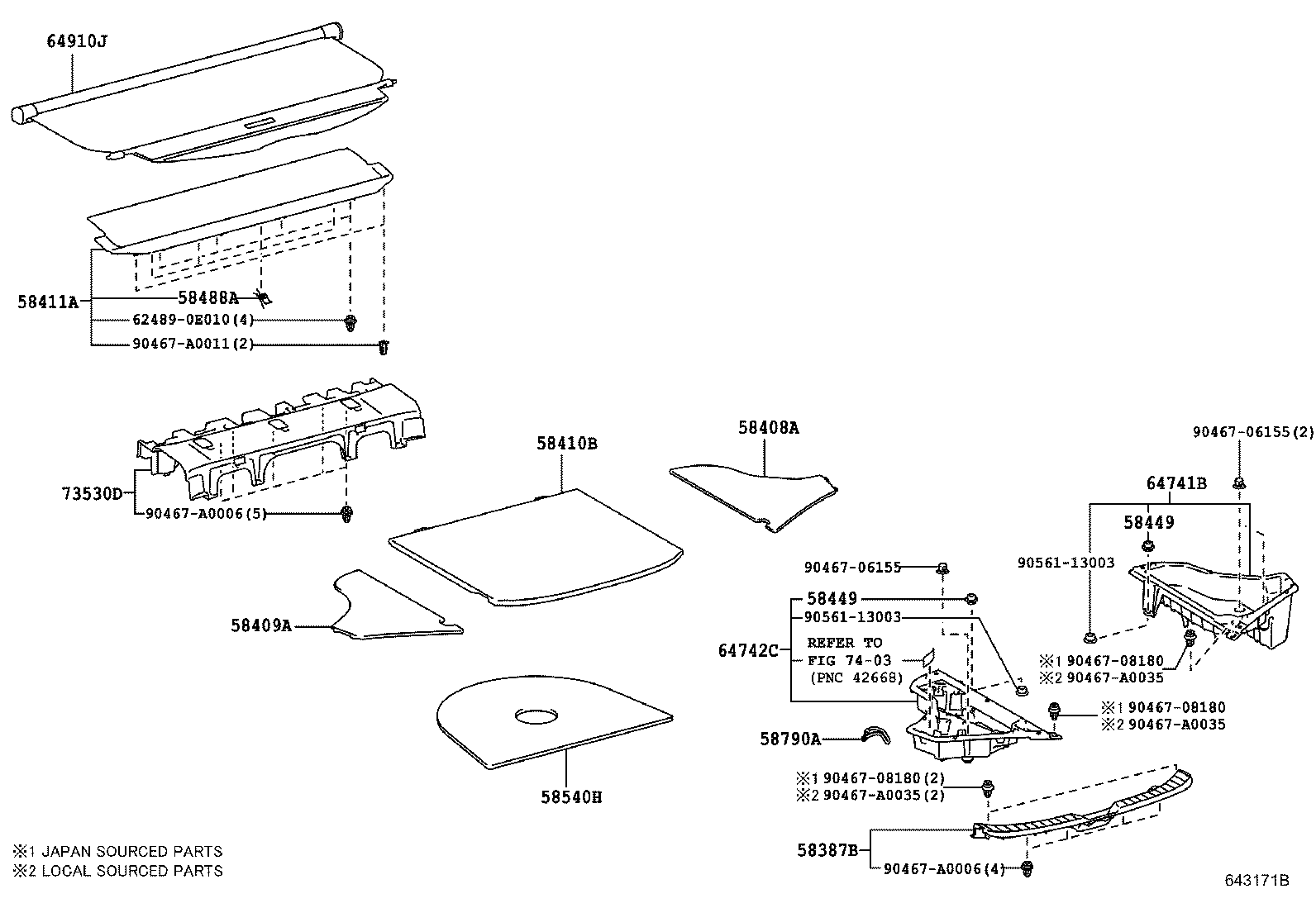

Deck Board & Deck Trim Cover
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387B | Plate, Rear Floor Finish |
| 58408A | Board Sub-assy, Deck, NO.2 |
| 58409A | Board Sub-assy, Deck, NO.3 |
| 58410B | Board Assy, Deck |
| 58411A | Board, Deck, NO.1 |
| 58449 | Clip, Deck Board |
| 58460D | Striker Assy, Luggage Hold Belt |
| 58488A | Spring, Deck Board, RH |
| 58540H | Mat Assy, Floor, Rear |
| 58790A | Carrier Assy, Jack |
| 62627D | Cover, Side Trim, RH |
| 64714C | Cover, Deck Side Trim, RH |
| 64715C | Cover, Deck Side Trim, LH |
| 64725F | Hook, Luggage Compartment Trim, NO.1 |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64741B | Box, Deck Side Trim, RH |
| 64742C | Box, Deck Side Trim, LH |
| 64745H | Holder, Deck Side Trim Cup, RH |
| 64746F | Holder, Deck Side Trim Cup, LH |
| 64750F | Clip(FOR DECK SIDE TRIM PANEL) |
| 64910J | Cover Assy, Tonneau |
| 73530D | Panel Assy, Rear Seat Sub Floor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
