Toyota Venza
2008-11 → 2016-12 · chassis AGV1#,GGV1# · catalogue 286430 · United States
Supported model
Data version 2016-12

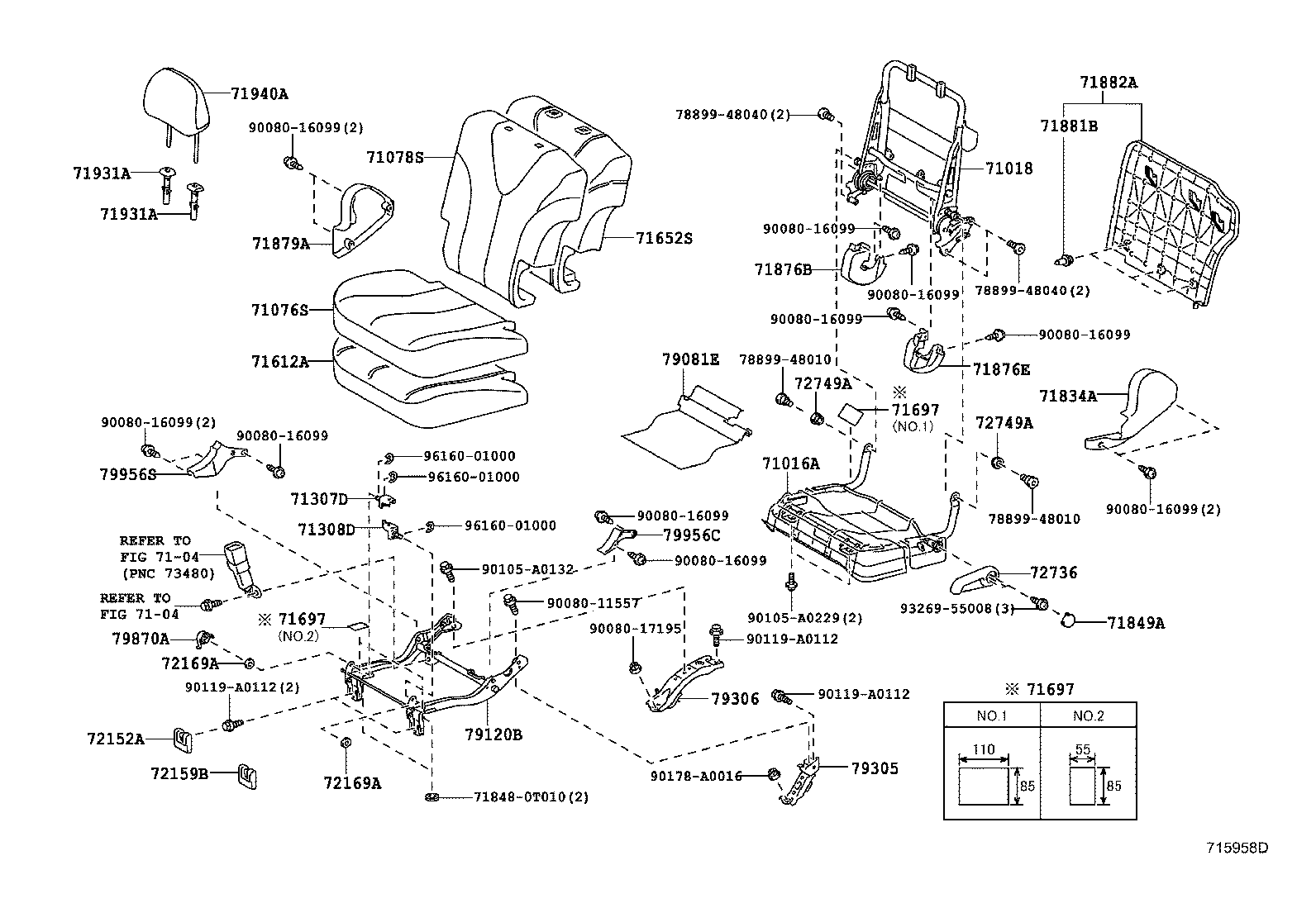

Rear Seat & Seat Track
64 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 71015A | Frame Sub-assy, Rear Seat Cushion, RH |
| 71016A | Frame Sub-assy, Rear Seat Cushion, LH |
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71075S | Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE) |
| 71076S | Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71307D | Bracket Sub-assy, Rear Seat Cushion Support, RH |
| 71308D | Bracket Sub-assy, Rear Seat Cushion Support, LH |
| 71343C | Hinge, Rear Seatback, Center |
| 71346C | Hinge, Rear Seatback, LH |
| 71395C | Cover, Center Seat Hinge, RH |
| 71611A | Pad, Rear Seat Cushion, RH |
| 71612A | Pad, Rear Seat Cushion, LH |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71697 | Protector, Rear Seatback Edge |
| 71833A | Cover, Rear Seat Reclining, NO.1 RH |
| 71834A | Cover, Rear Seat Reclining, NO.1 LH |
| 71848B | Cap, Seat Adjuster Cover, RH |
| 71849A | Cap, Seat Adjuster Cover, LH |
| 71875C | Cover, Reclining Adjuster Inside, RH |
| 71875E | Cover, Reclining Adjuster Inside, RH |
| 71876B | Cover, Reclining Adjuster Inside, LH |
| 71876E | Cover, Reclining Adjuster Inside, LH |
| 71878A | Cover, Rear Seat Reclining, Inner RH |
| 71879A | Cover, Rear Seat Reclining, Inner LH |
| 71881 | Board, Rear Seatback, RH |
| 71881B | Clip, Rear Seatback Board |
| 71882A | Board, Rear Seatback, LH |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71960B | Headrest Assy, Rear Seat, Center |
| 72057 | Lever Sub-assy, Rear Seat Lock Control, RH |
| 72058A | Lever Sub-assy, Rear Seat Lock Control, LH |
| 72152A | Cover, Rear Seat Track Bracket, Inner |
| 72159B | Cover, Rear Seat Track Bracket, Outer |
| 72169A | Spacer, RR Seat Track |
| 72597B | Bezel, Reclining Remote Control Lever, NO.1 |
| 72598C | Bezel, Reclining Remote Control, LH |

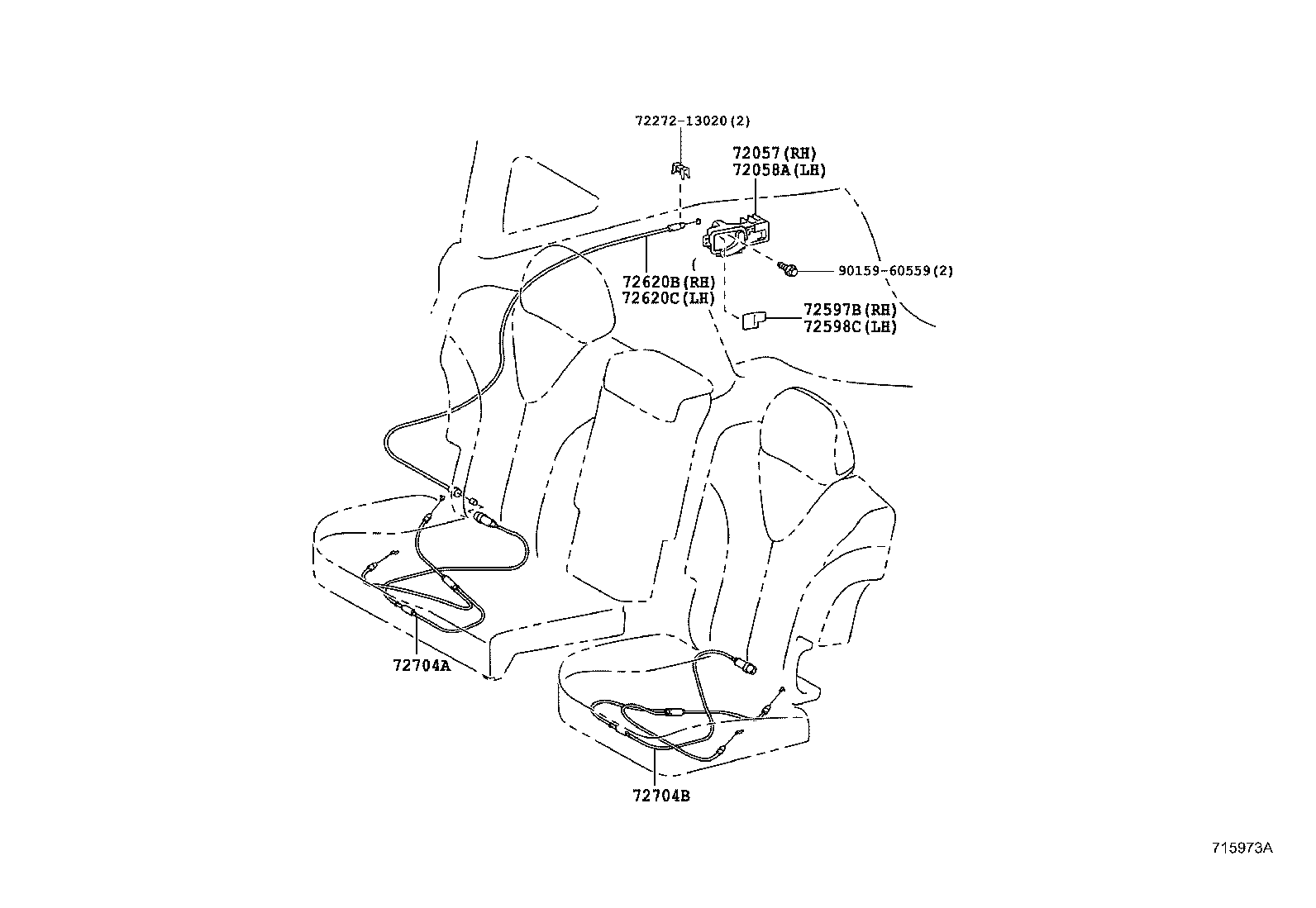

| 72620B | Cable Assy, Rear NO.1 Seat Lock |
| 72620C | Cable Assy, Rear NO.1 Seat Lock |
| 72704A | Cable, Rear Seat Reclining Control |
| 72704B | Cable, Rear Seat Reclining Control, NO.2 |
| 72735 | Lever, Rear Seat Reclining Release |
| 72736 | Lever, Rear Seat Reclining Release, LH |
| 72749A | Spacer, Rear Seat Reclining |
| 72806B | Holder Sub-assy, Rear Seat Center Armrest Cup |
| 72830 | Armrest Assy, Rear Seat, Center |
| 73373B | Cover, Rear NO.1 Seat Shoulder Belt |
| 79081C | Cover, Rear Seat, NO.1 |
| 79081D | Cover, Rear Seat, NO.2 |
| 79081E | Cover, Rear Seat, NO.3 |
| 79110A | Leg Assy, NO.1 Seat, RH |
| 79120B | Leg Assy, NO.1 Seat, LH |
| 79305 | Leg Sub-assy, NO.3 Seat |
| 79306 | Leg Sub Assy, NO.3 Seat, LH |
| 79860A | Spring Assy, Fold Seat Cushion, RH |
| 79870A | Spring Assy, Fold Seat Cushion, LH |
| 79956B | Cover, Rear Seat Leg Side, RH |
| 79956C | Cover, Rear Seat Leg Side, LH |
| 79956S | Cover, Rear Seat Leg Side |
| 79956T | Cover, Rear Seat Leg Side |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
