Toyota Venza

2008-11 → 2016-12 · chassis AGV1#,GGV1# · catalogue 286430 · United States

Supported model Data version 2016-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

3 part groups · 2 illustrations

Illustrations

Figure 760685A

760685A 2008-11 → 2012-05

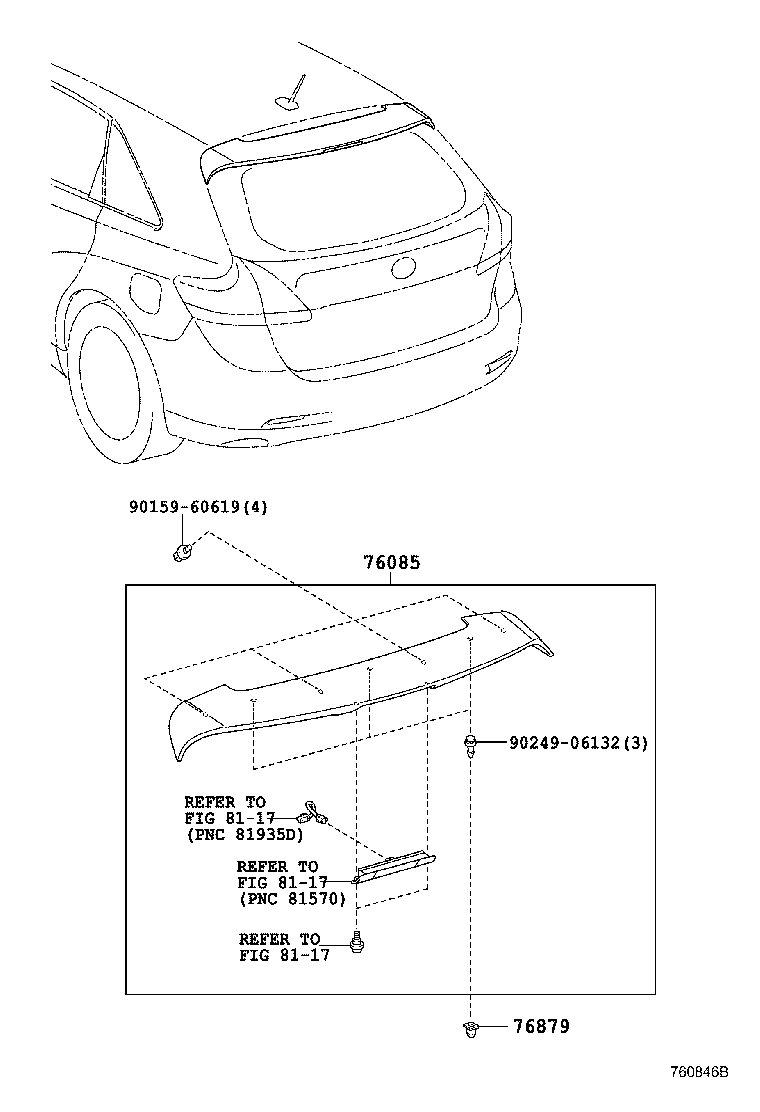

Figure 760846B

760846B 2012-05 → —

Part groups

PNC	Description
76085	Spoiler Sub-assy, Rear
76871B	Cover, Rear Spoiler
76879	Clip, Rear Spoiler, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
