Toyota Venza
2008-11 → 2016-12 · chassis AGV1#,GGV1# · catalogue 286430 · United States
Supported model
Data version 2016-12

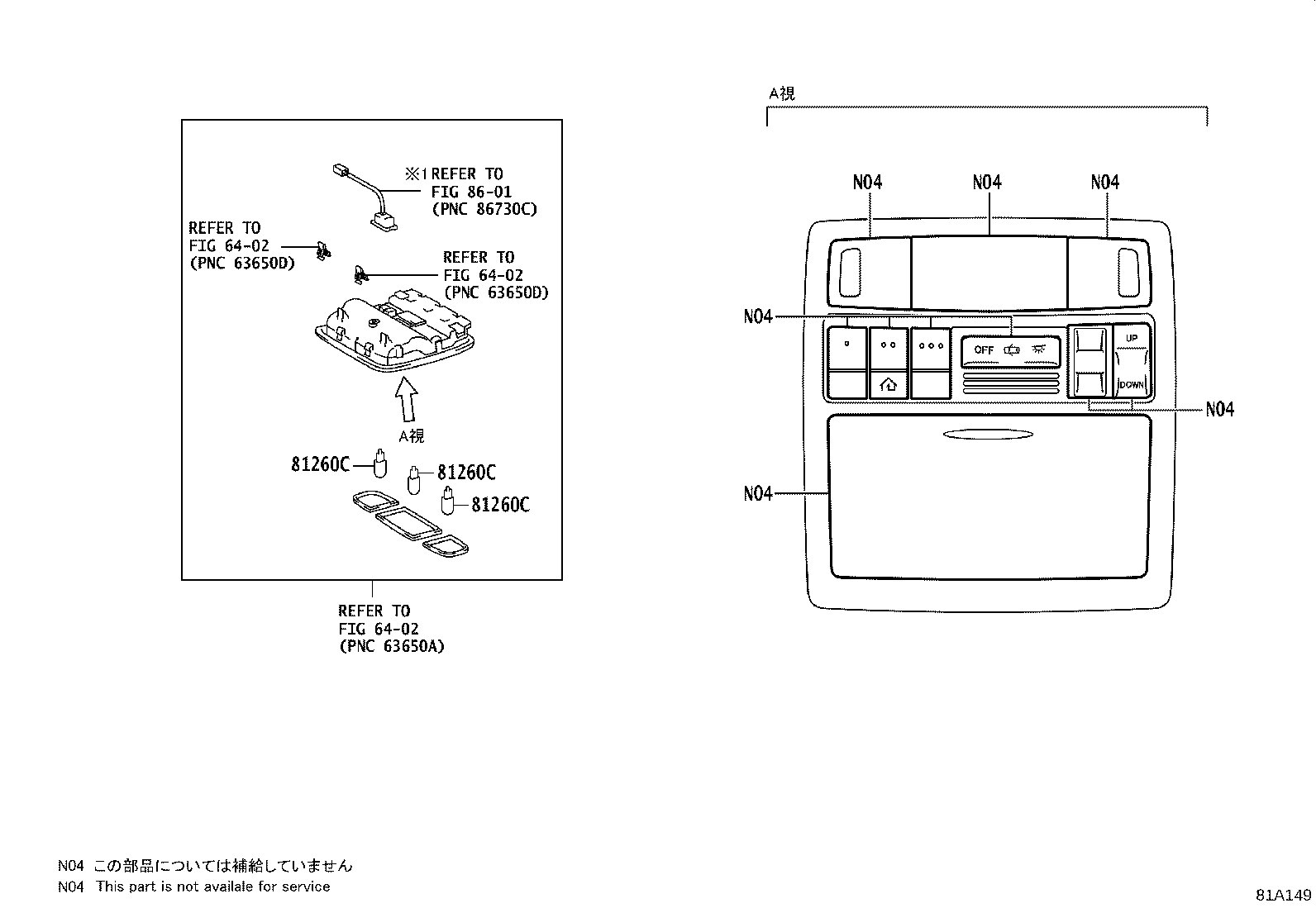

Interior Lamp
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81080K | Lamp Assy, Console Box Illumination |
| 81230 | Lamp Assy, Courtesy |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81250 | Lamp Assy, Room, NO.2 |
| 81250B | Bulb, Room Lamp, NO.2 |
| 81250C | Bulb, Spot Lamp |
| 81251 | Lens, Room Lamp, NO.2 |
| 81260 | Lamp Assy, Glove Box |
| 81260C | Bulb(FOR MAP LAMP) |
| 81260F | Bulb(FOR GLOVE BOX LAMP) |
| 81269 | Switch, Map Lamp |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81360 | Lamp Assy, Step OR Spot |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
