Toyota Venza

2008-11 → 2016-12 · chassis AGV1#,GGV1# · catalogue 286430 · United States

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

49 part groups · 14 illustrations

Illustrations

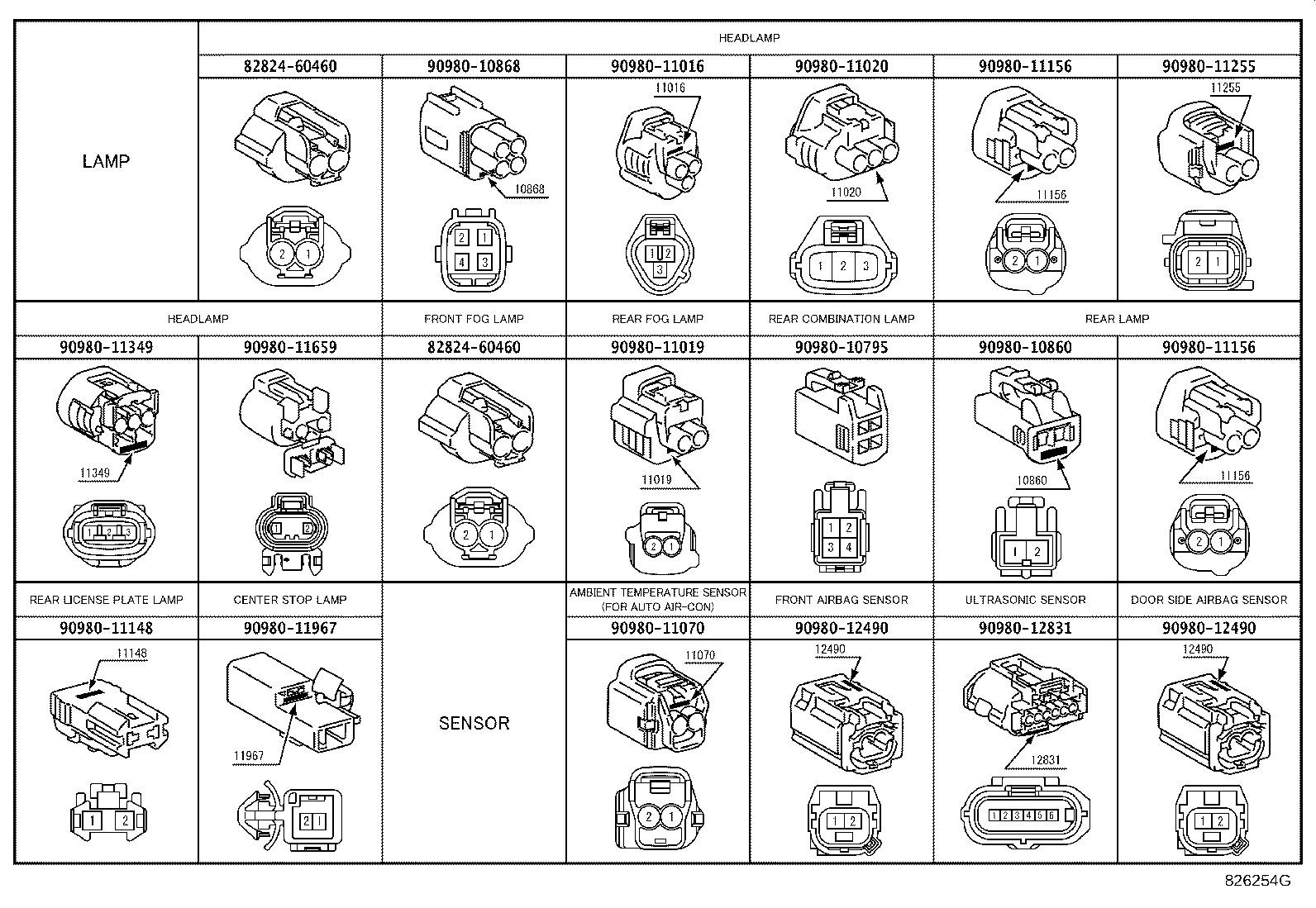

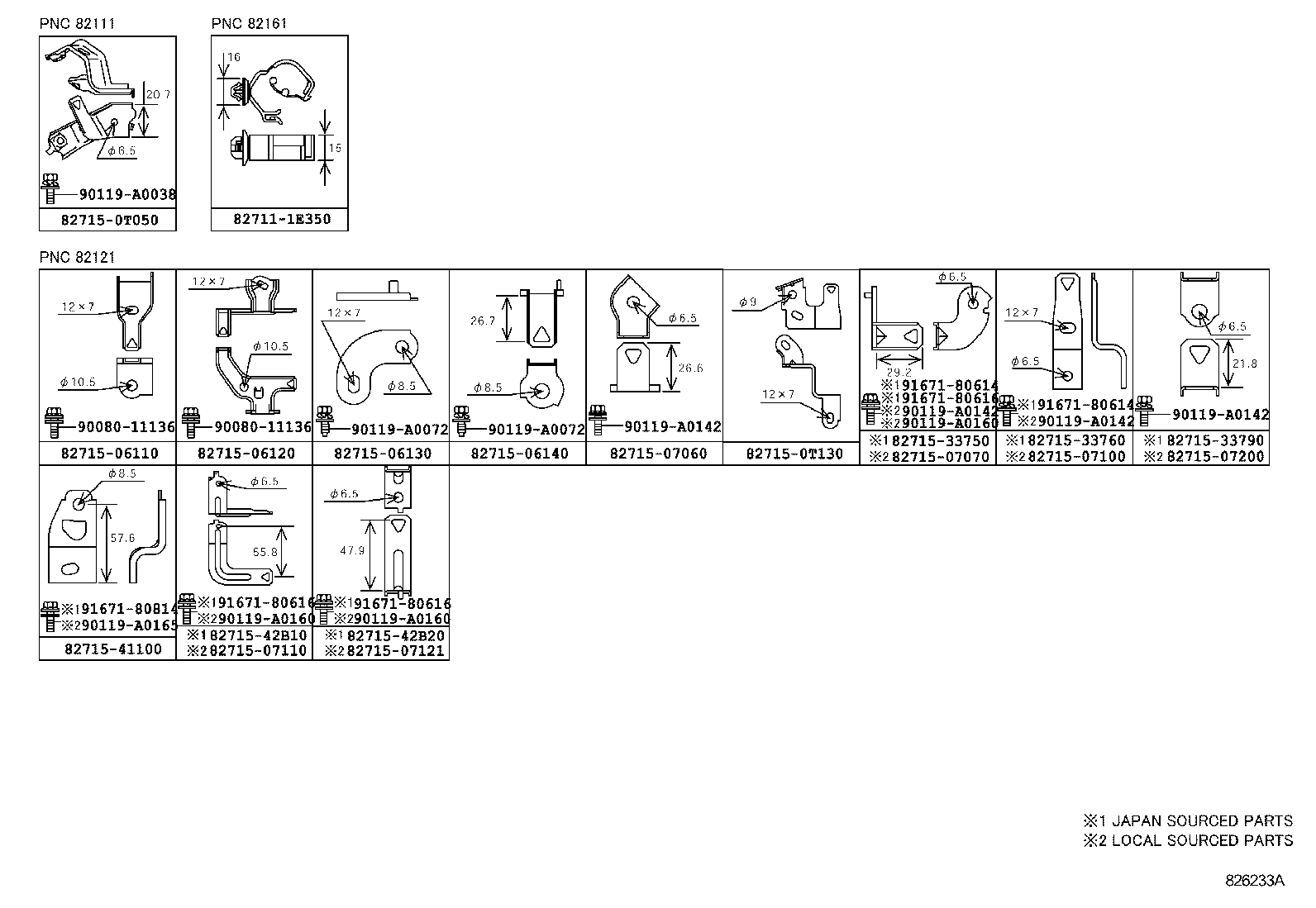

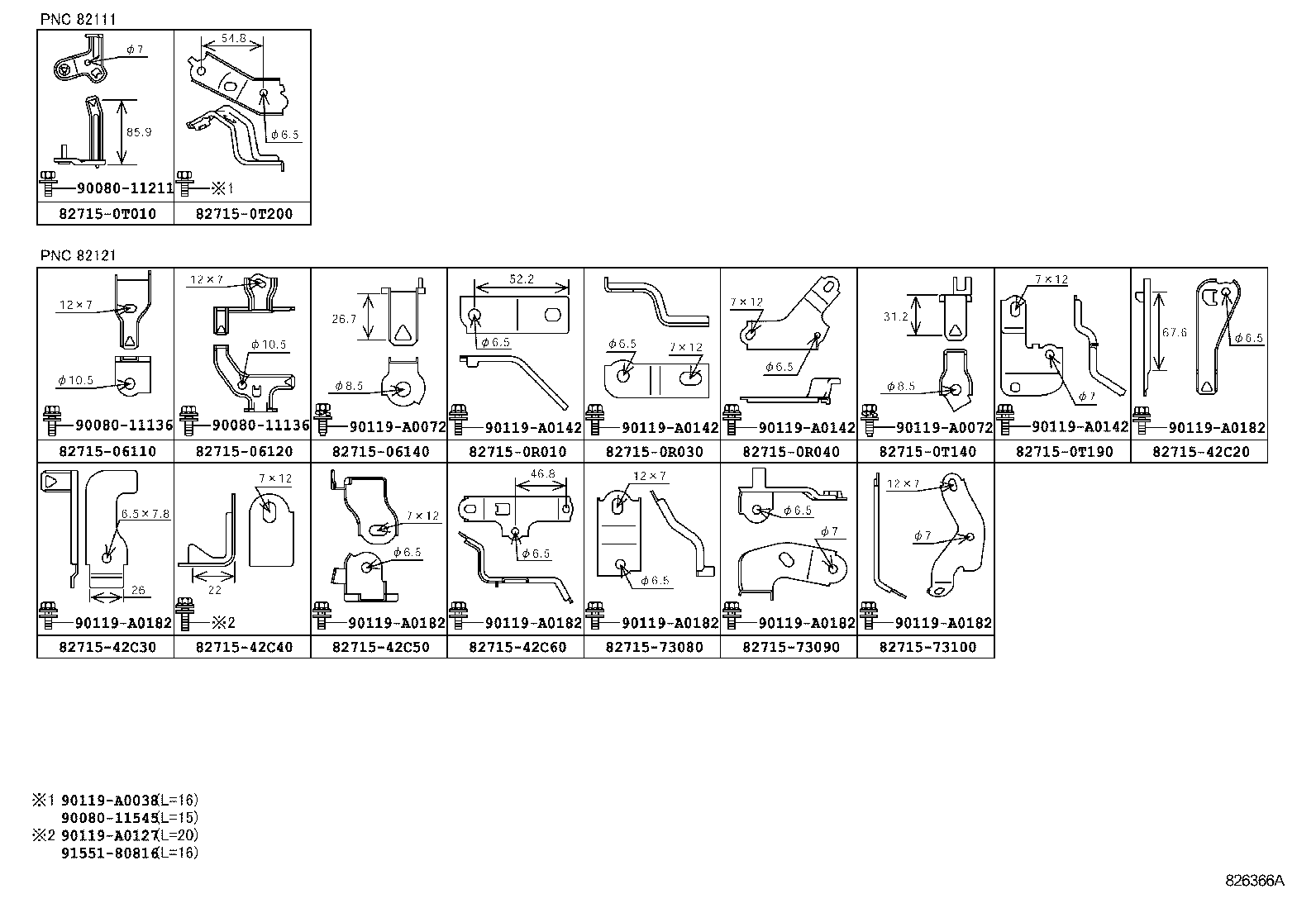

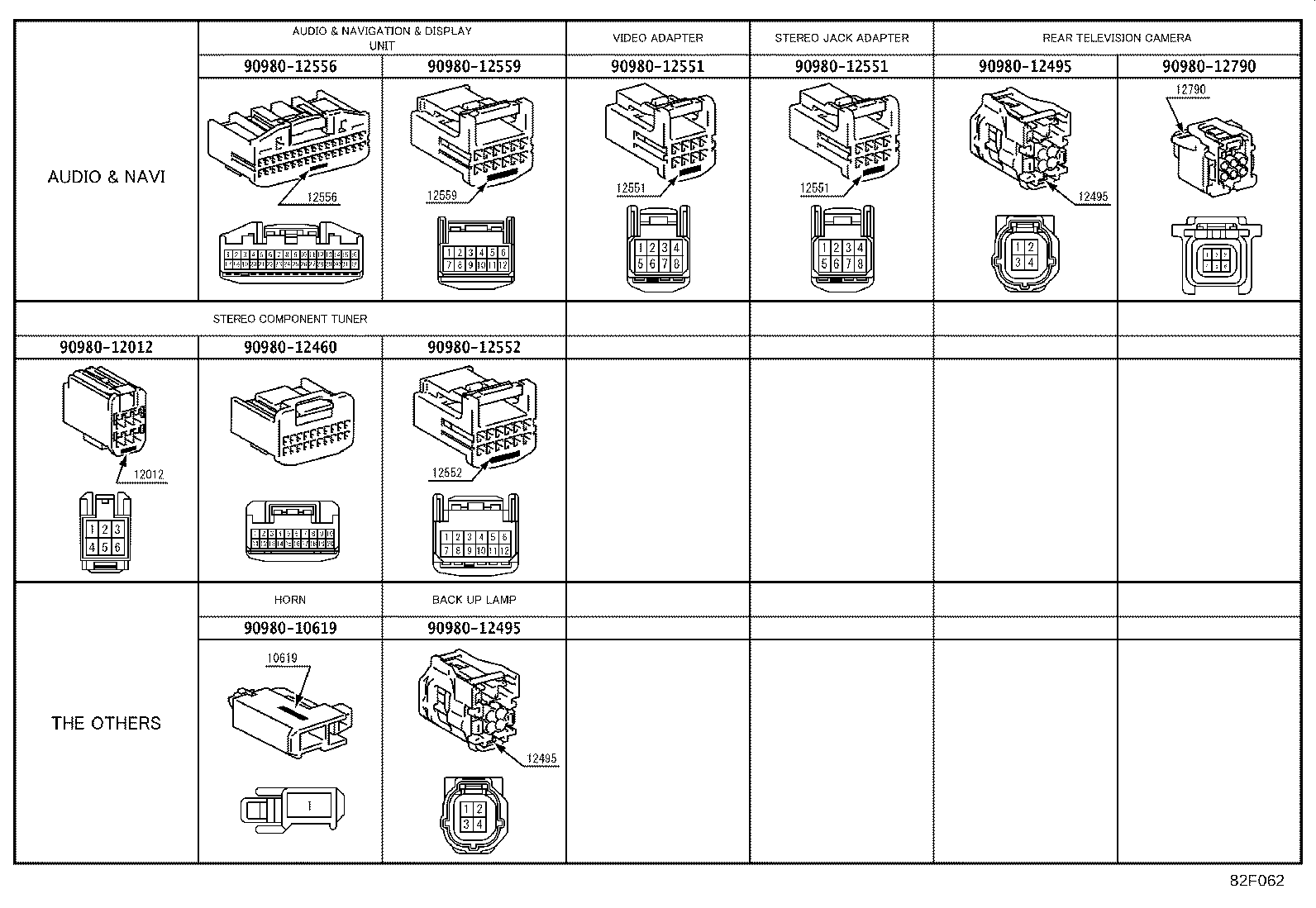

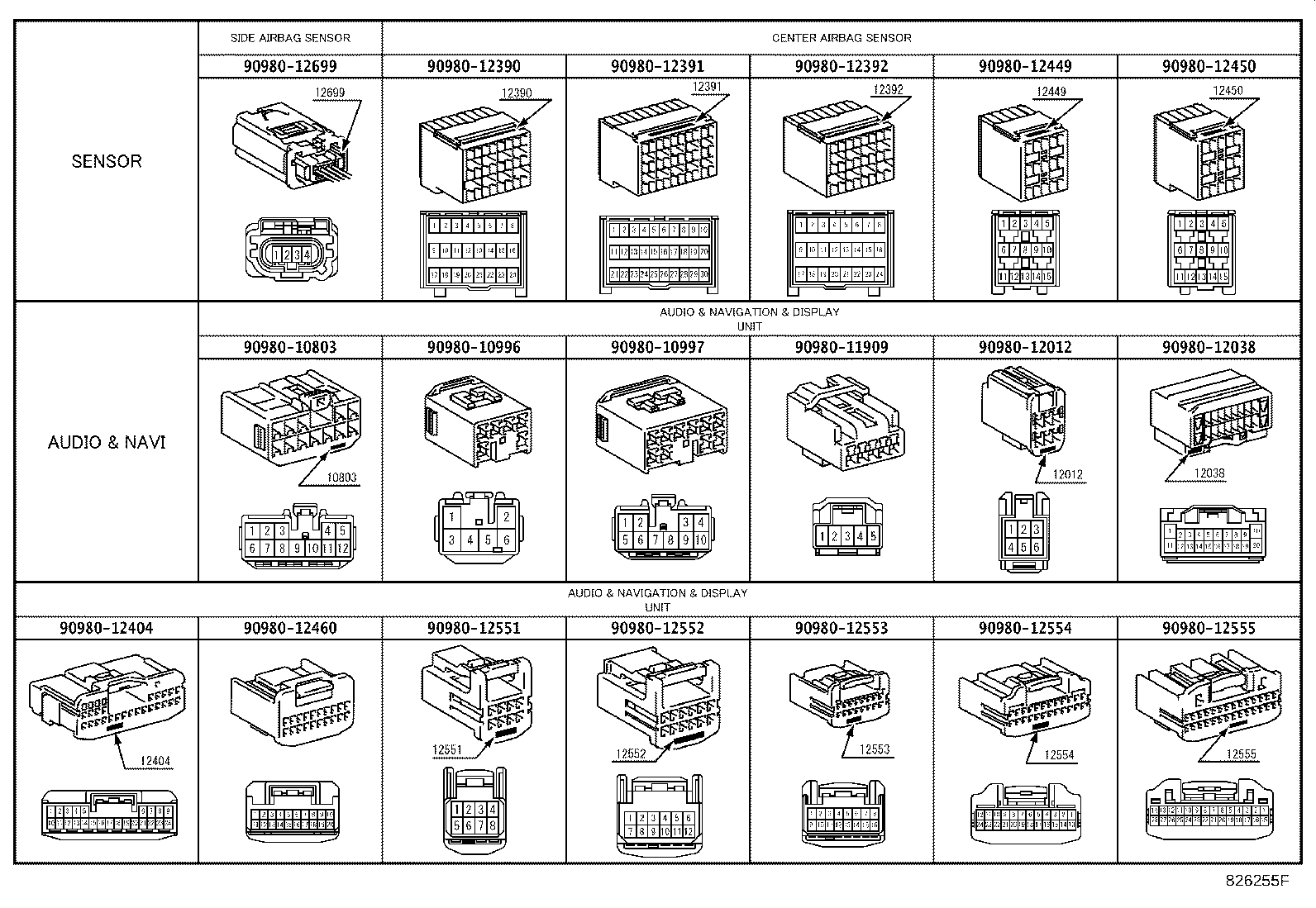

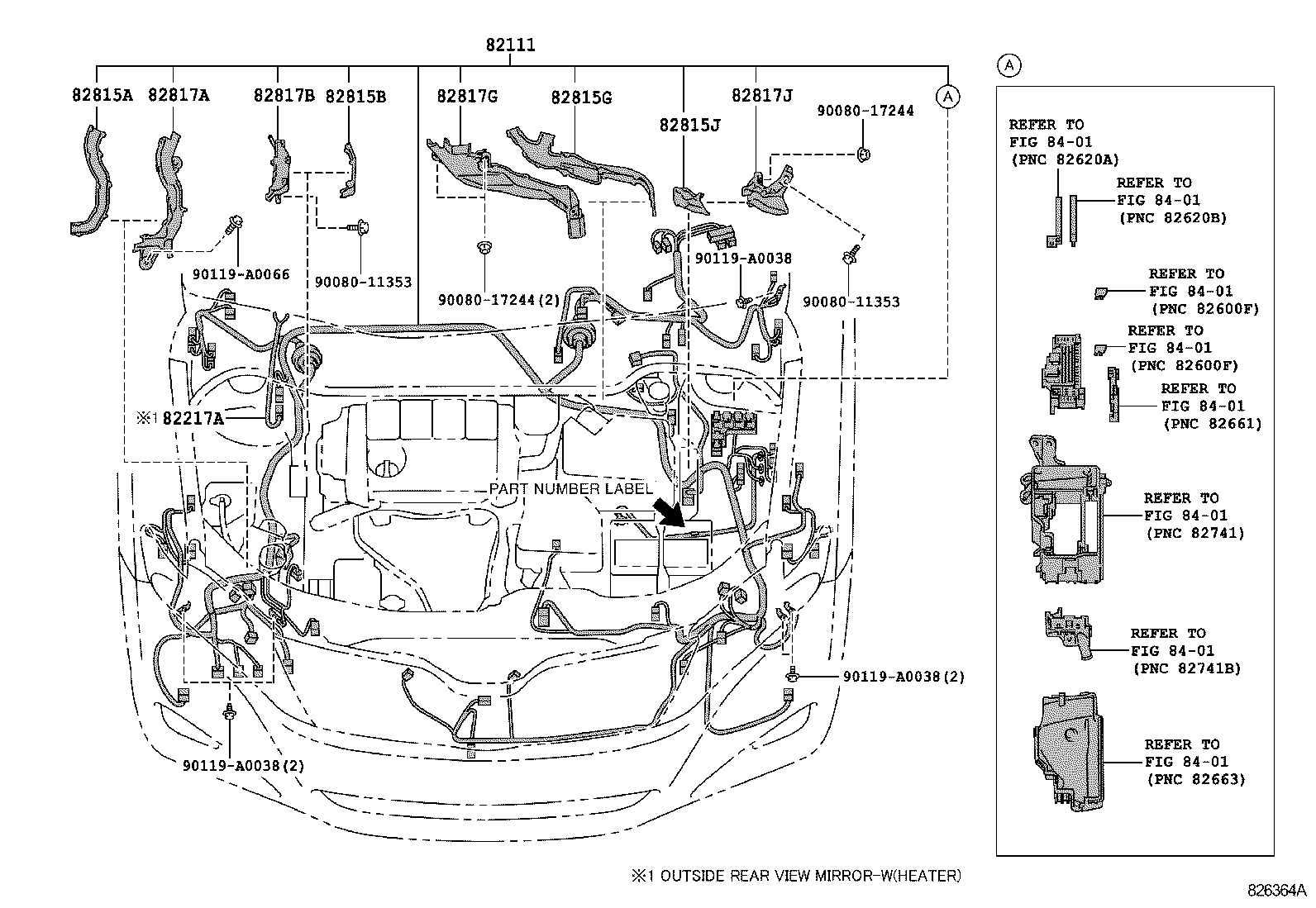

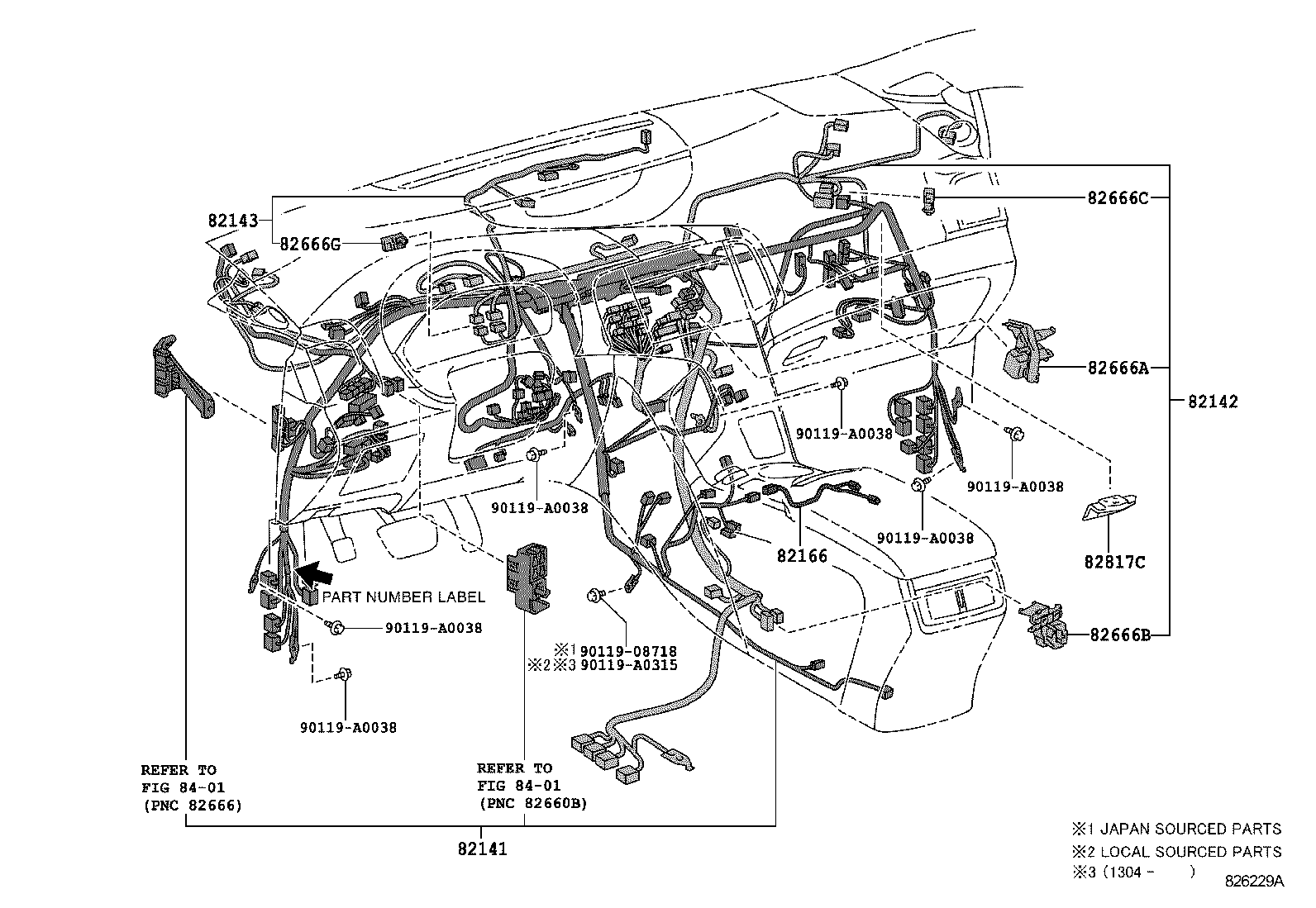

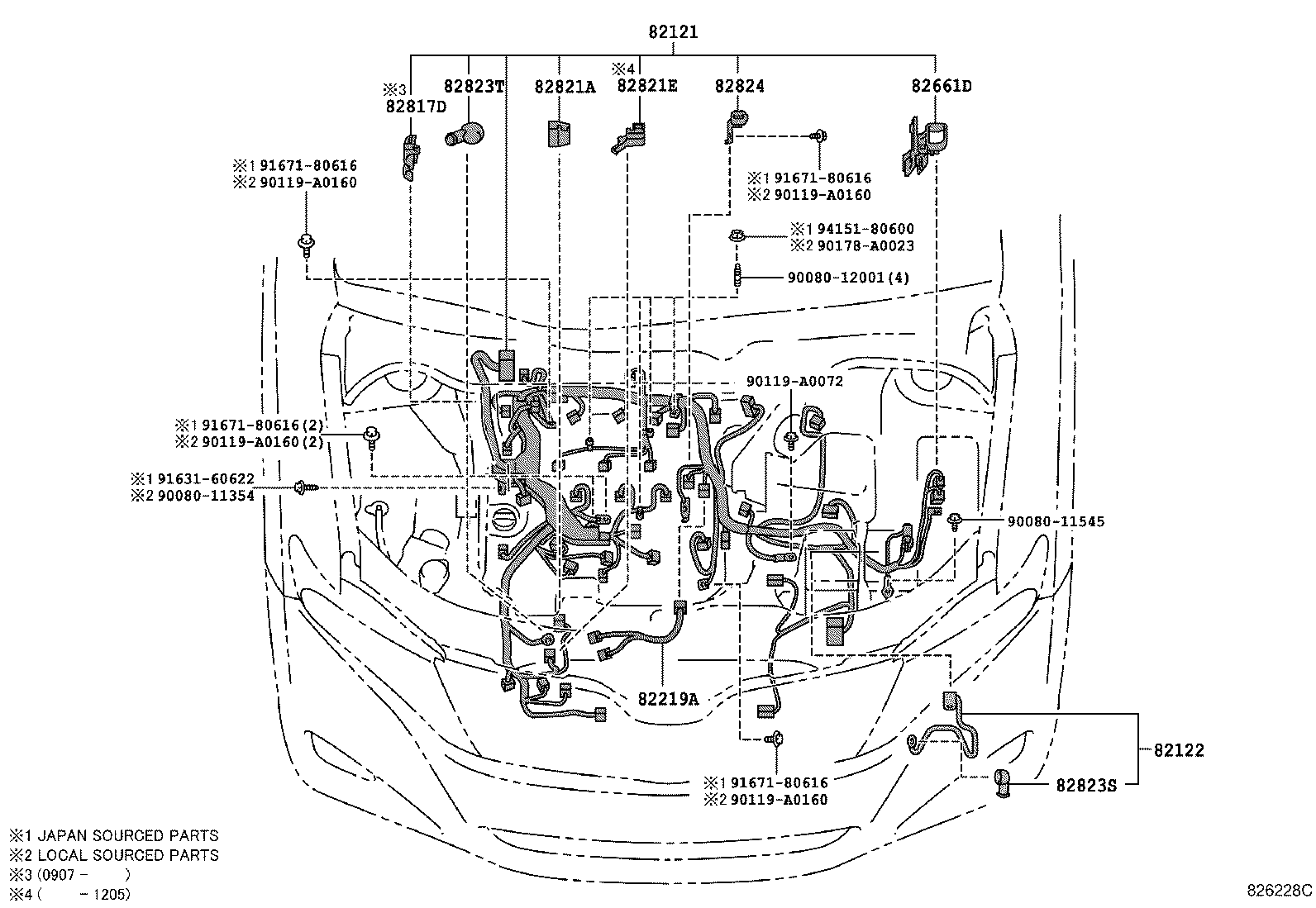

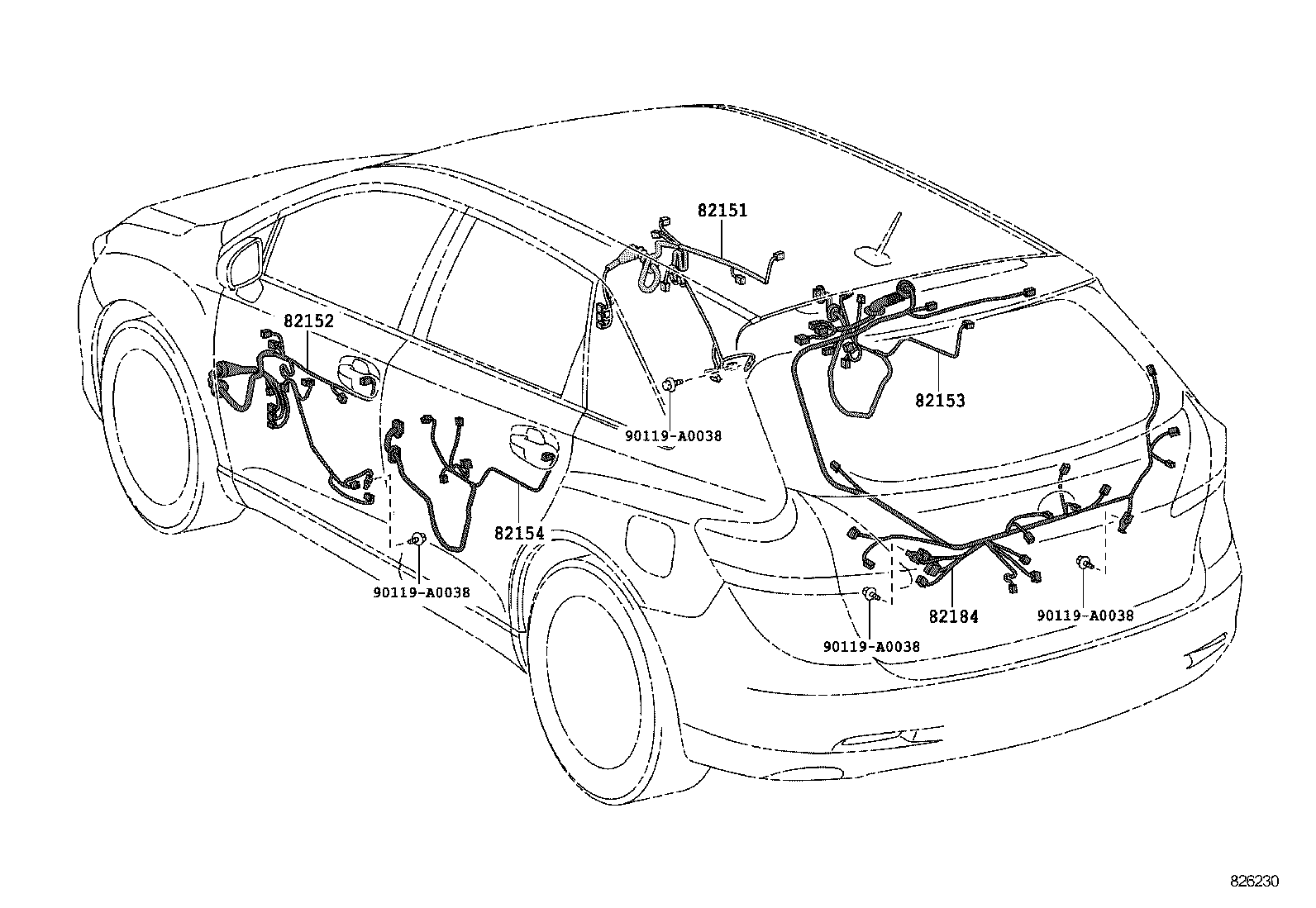

Figure 826227A 826227A 2008-11 → — Figure 826364A 826364A 2009-01 → — Figure 826228C 826228C 2008-11 → — Figure 826365B 826365B 2009-01 → — Figure 826229A 826229A 2008-11 → — Figure 826230 826230 2008-11 → — Figure 826231C 826231C 2008-11 → — Figure 826232 826232 2008-11 → — Figure 826233A 826233A 2008-11 → — Figure 826366A 826366A 2009-01 → — Figure 826234D 826234D 2008-11 → — Figure 826254G 826254G 2008-11 → — Figure 826255F 826255F 2008-11 → — Figure 82F062 82F062 2008-11 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1

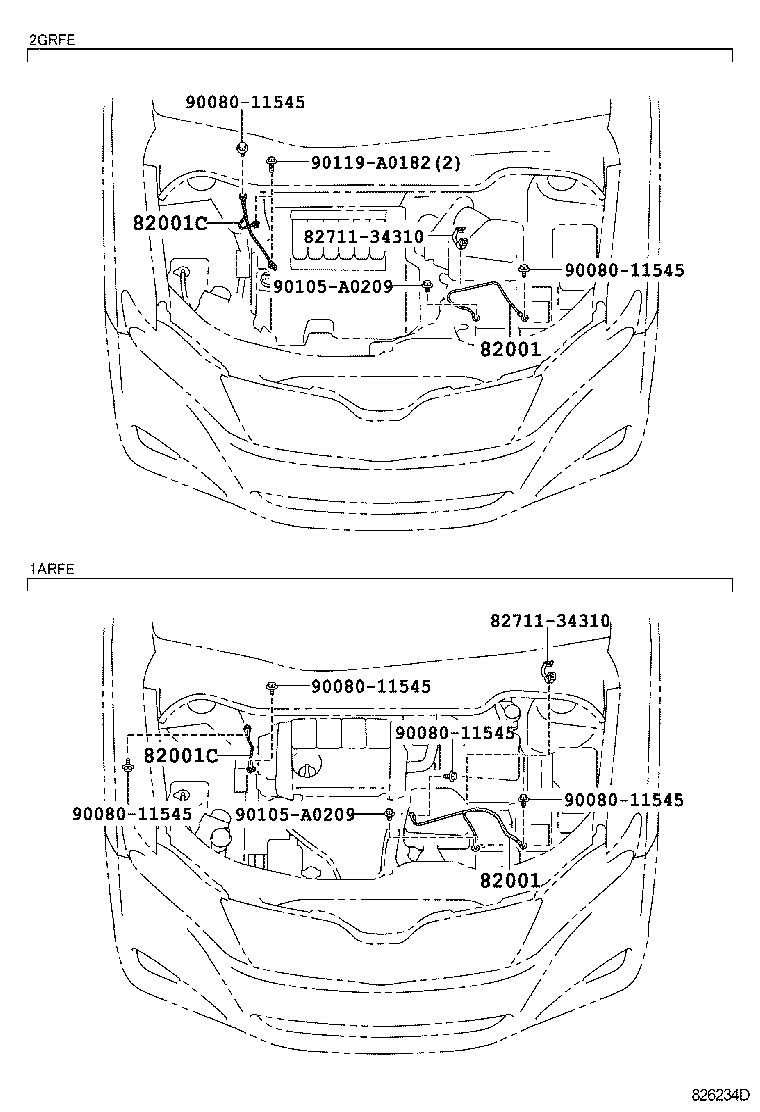

82001C Cable, Bond, NO.2

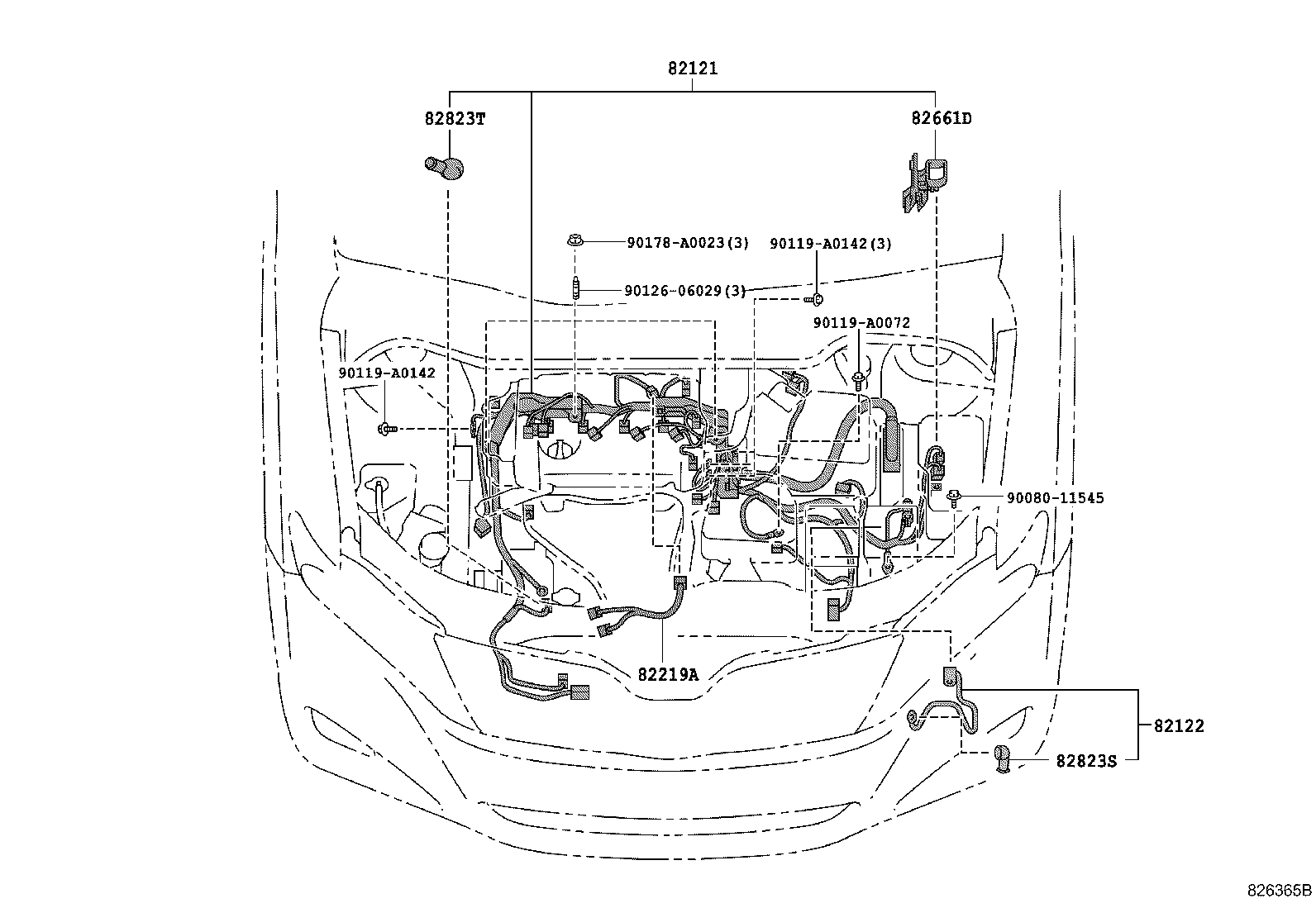

82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

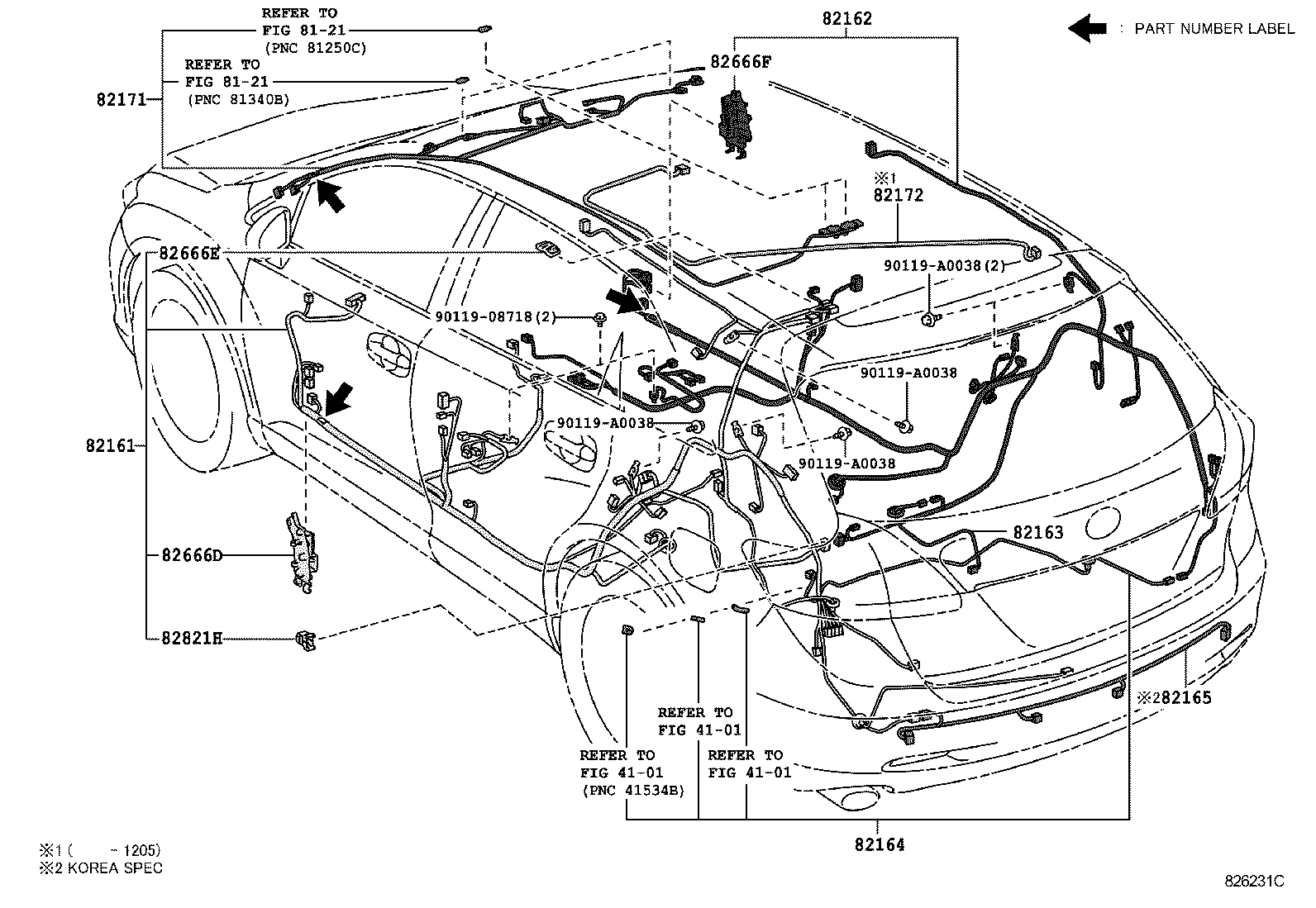

82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82166 Wire, Console Box
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82184 Wire, Back Door, NO.1

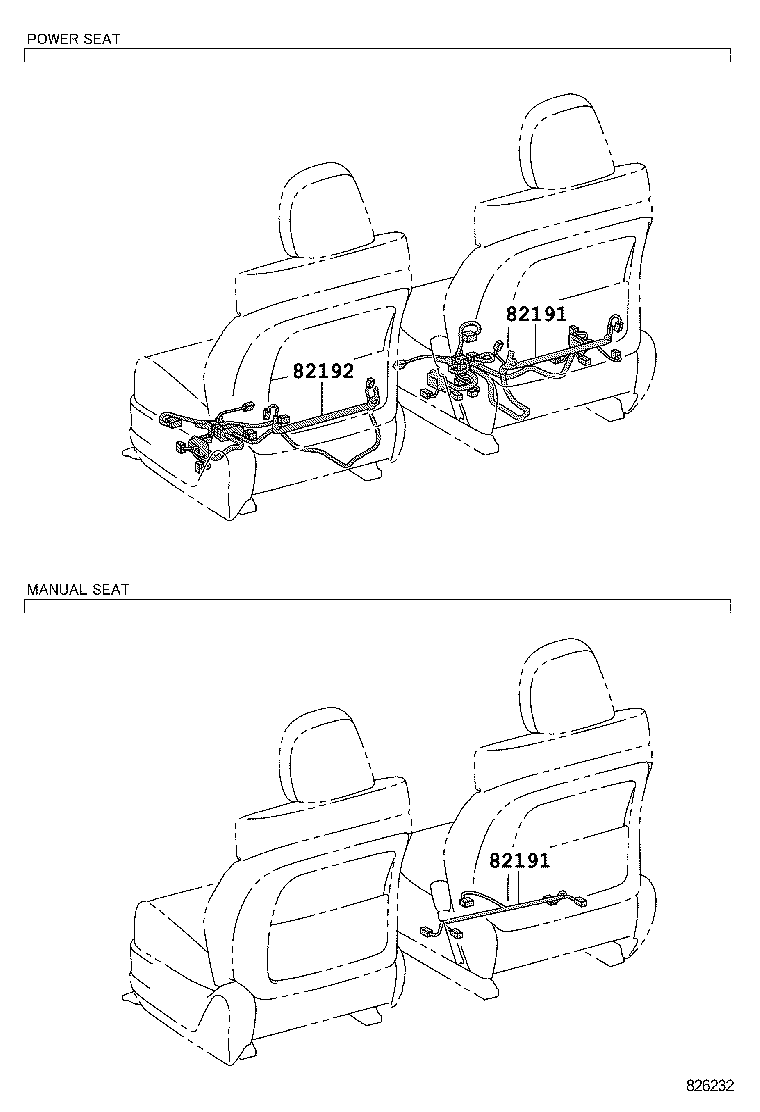

82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82217A Wire, Front Window Defogger
82219A Wire, Sensor
82661D Cover, Relay Block, Side NO.1
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815J Cover, Wiring Harness Protector, NO.7
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
