Toyota Venza

2008-11 → 2016-12 · chassis AGV1#,GGV1# · catalogue 286430 · United States

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

9 part groups · 2 illustrations

Illustrations

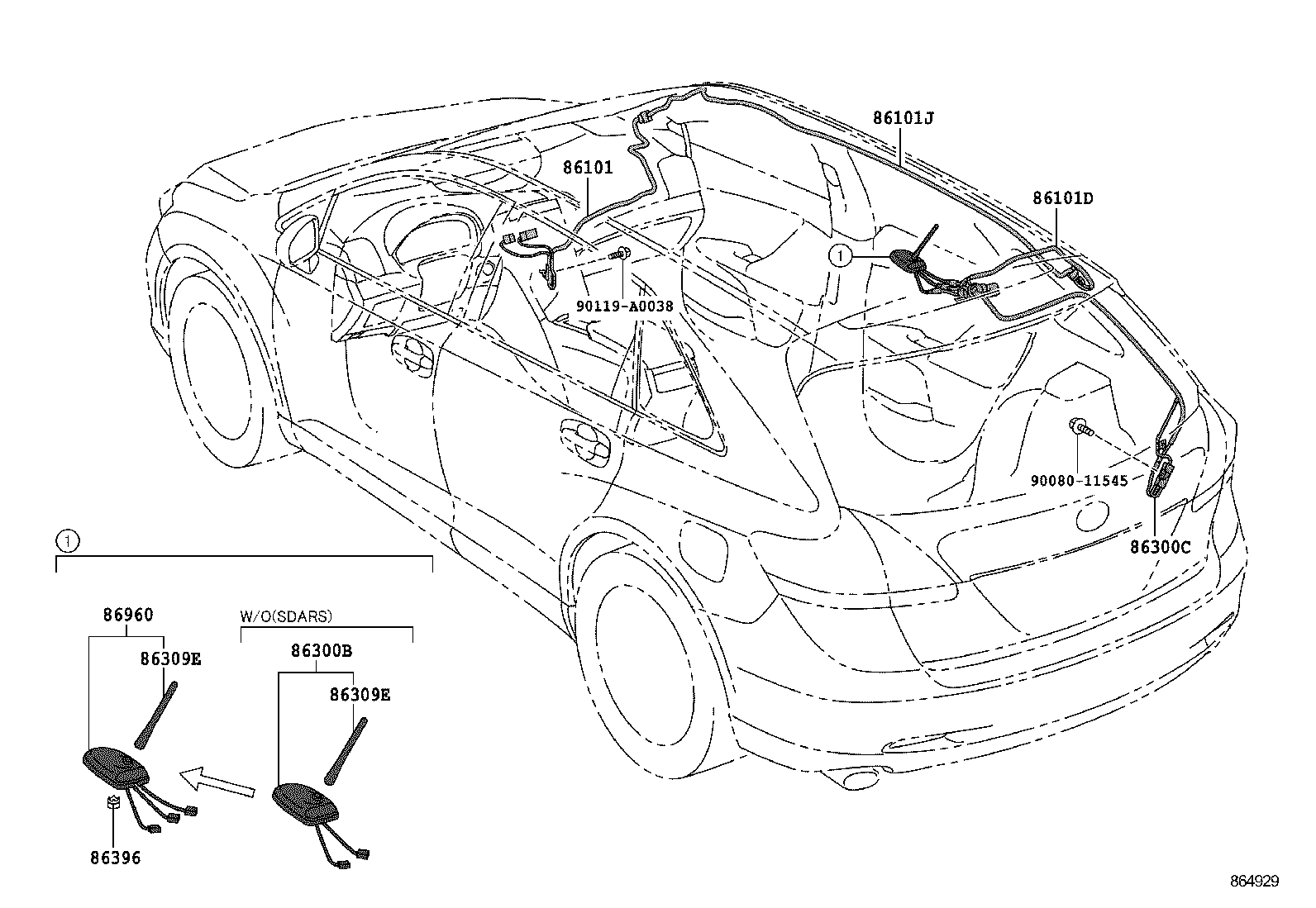

Figure 863679A 863679A 2008-11 → 2012-05 Figure 864929 864929 2012-05 → —

Part groups

PNCDescription
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86101Q Cord Sub-assy, Antenna, NO.4
86300B Antenna Assy, Amplifier, NO.1
86300C Antenna Assy, Amplifier, NO.2
86309E Pole Sub-assy, Roof Antenna
86396 Nut, Antenna
86960 Antenna Assy, Satellite Radio
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
