Toyota Venza

2008-11 → 2016-12 · chassis AGV1#,GGV1# · catalogue 286430 · United States

Supported model Data version 2016-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Horn

4 part groups · 3 illustrations

Illustrations

Figure 863668A

863668A 2008-11 → 2012-05

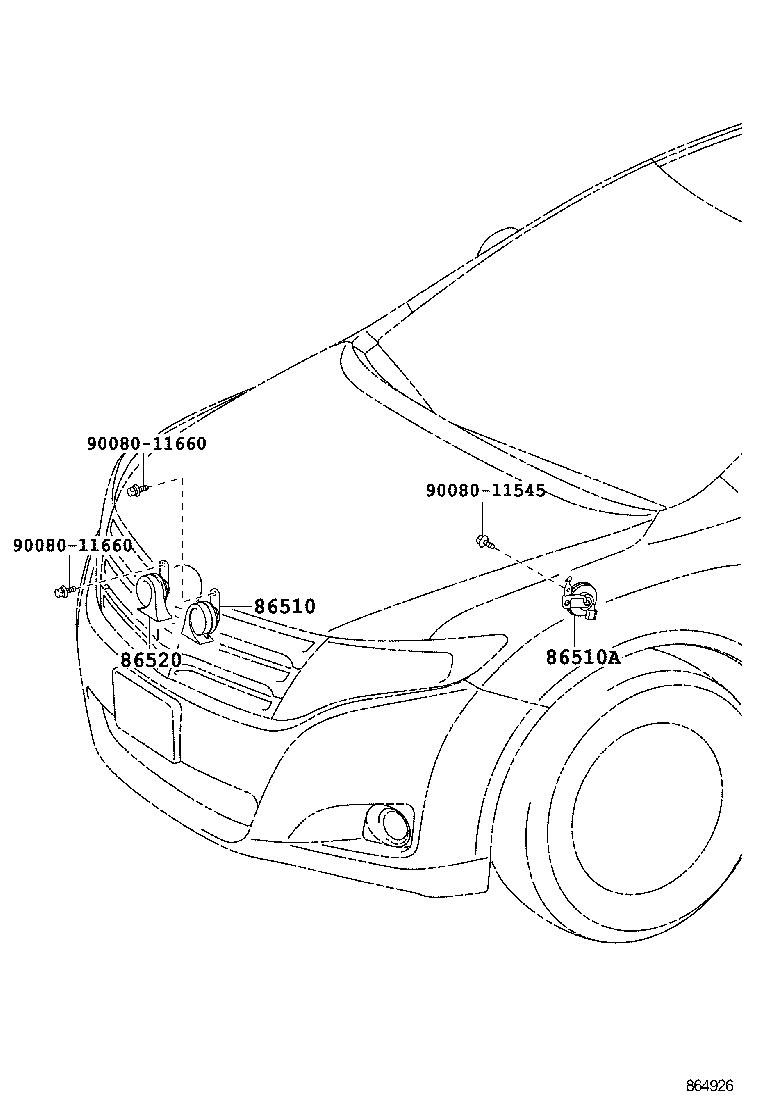

864926 2012-05 → —

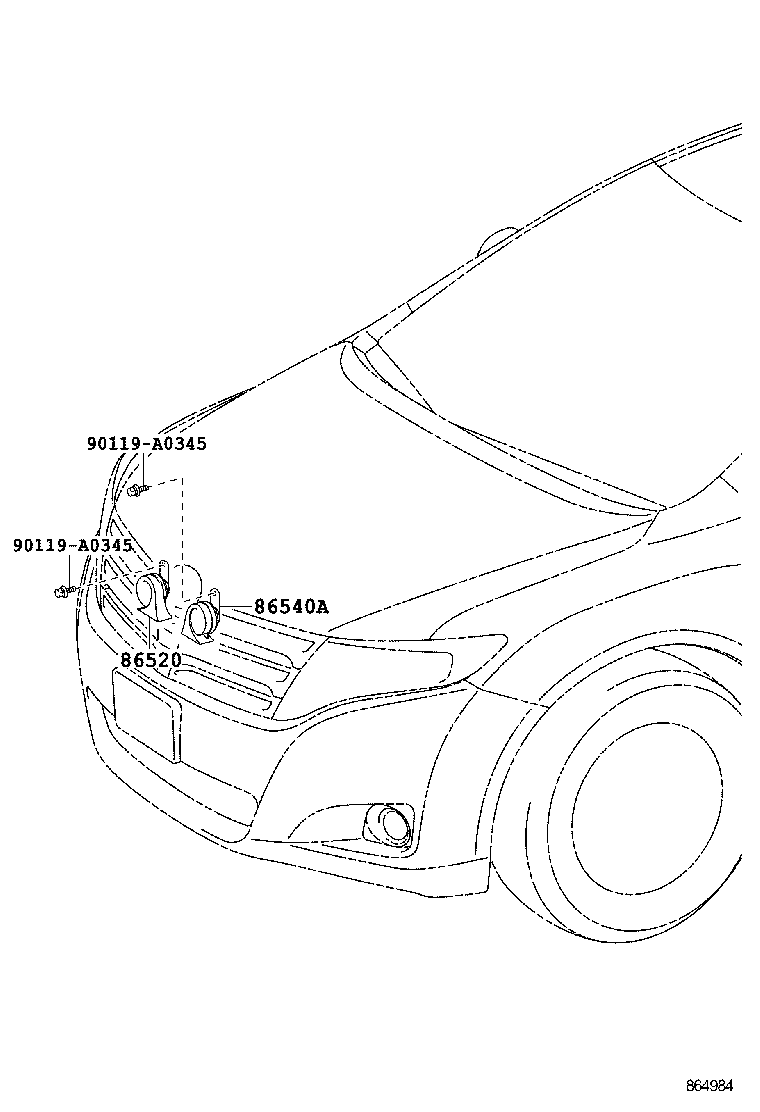

864984 2012-05 → —

Part groups

PNC	Description
86510	Horn Assy, High Pitched
86510A	Horn Assy, Security
86520	Horn Assy, Low Pitched
86540A	Horn Assy, Super Low Pitched

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
