Toyota Venza
2008-11 → 2016-12 · chassis AGV1#,GGV1# · catalogue 286430 · United States
Supported model
Data version 2016-12
Heating & Air Conditioning - Control & Air Duct
19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

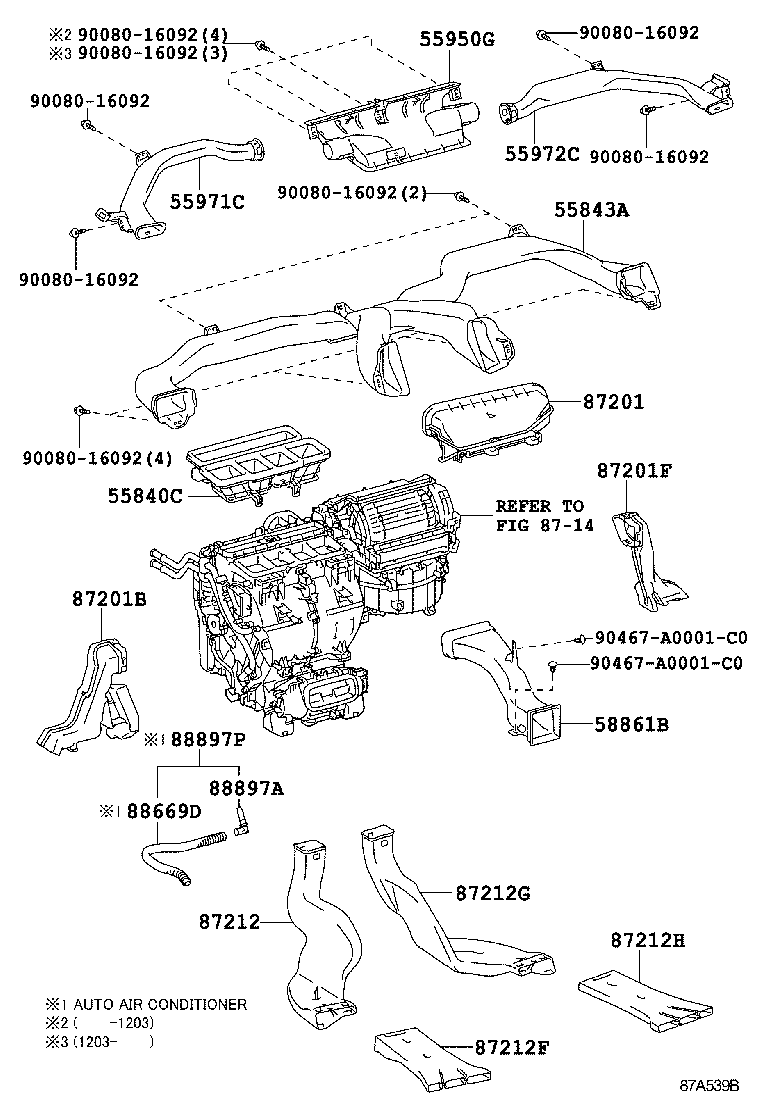

| 55840C | Duct Assy, Heater TO Register, NO.6 |
| 55843A | Duct, Heater TO Register, NO.1 |
| 55900 | Control Assy, Air Conditioner |
| 55950G | Nozzle Assy, Defroster |
| 55971C | Duct, Side Defroster Nozzle, NO.1 |
| 55972C | Duct, Side Defroster Nozzle, NO.2 |
| 58861B | Duct, Console Box, NO.1 |
| 87201 | Duct Sub-assy, Air, NO.1 |
| 87201B | Duct Sub-assy, Air, NO.2 |
| 87201F | Duct Sub-assy, Air, NO.3 |
| 87212 | Duct, Air, Rear NO.1 |
| 87212F | Duct, Air, Rear NO.2 |
| 87212G | Duct, Air, Rear NO.3 |
| 87212H | Duct, Air, Rear NO.4 |

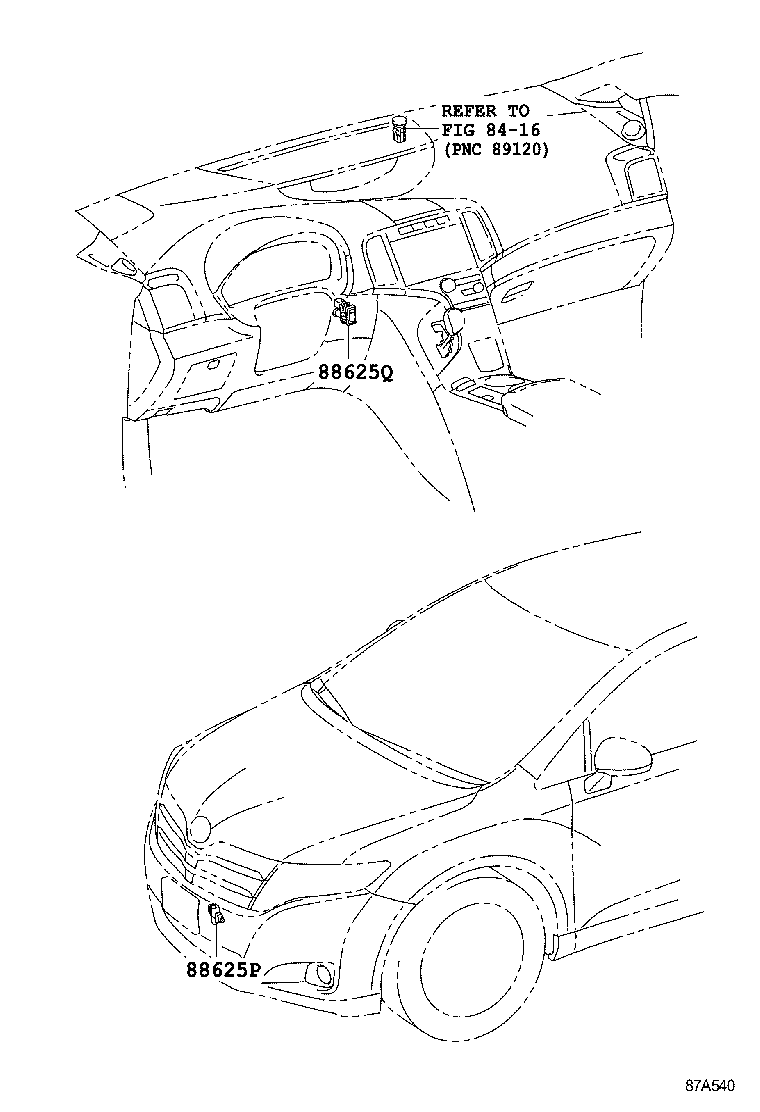

| 88625P | Thermistor, Cooler (AMBIENT TEMP. SENSOR) |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88669D | Hose, Air |
| 88897A | Pipe, Aspirator |
| 88897P | Aspirator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
