Toyota Venza

2008-11 → 2016-12 · chassis AGV1#,GGV1# · catalogue 286430 · United States

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

10 part groups · 5 illustrations

Illustrations

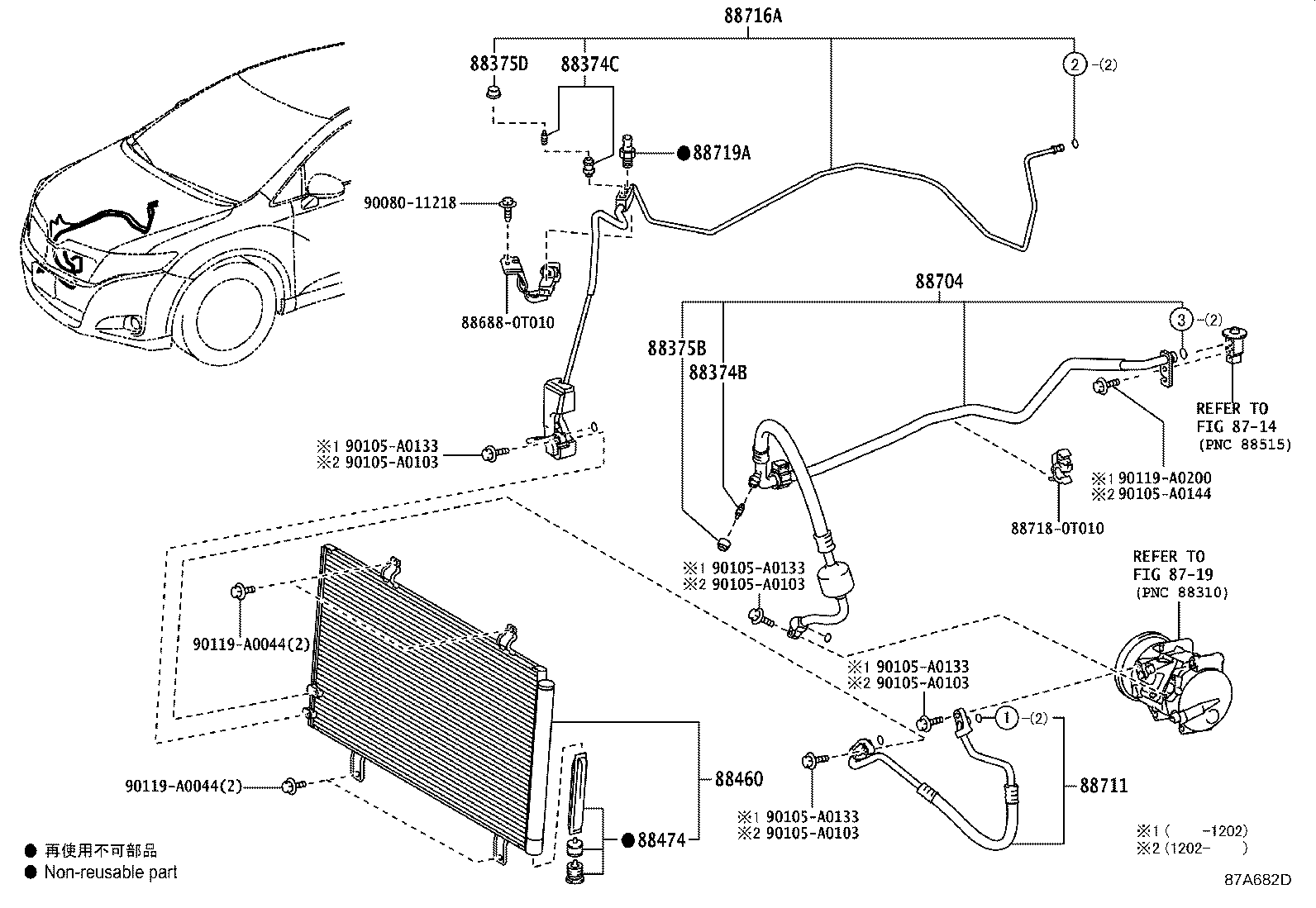

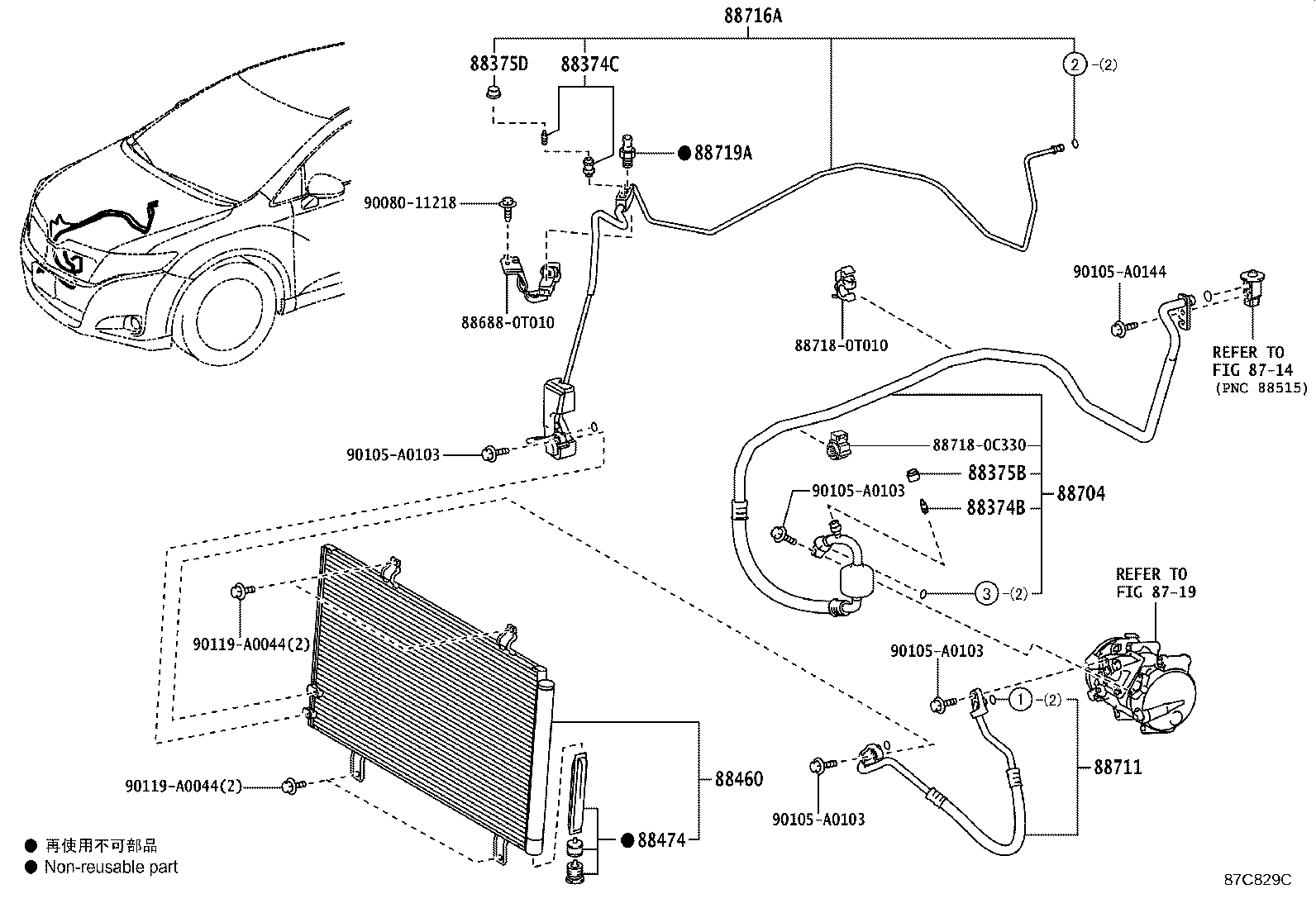

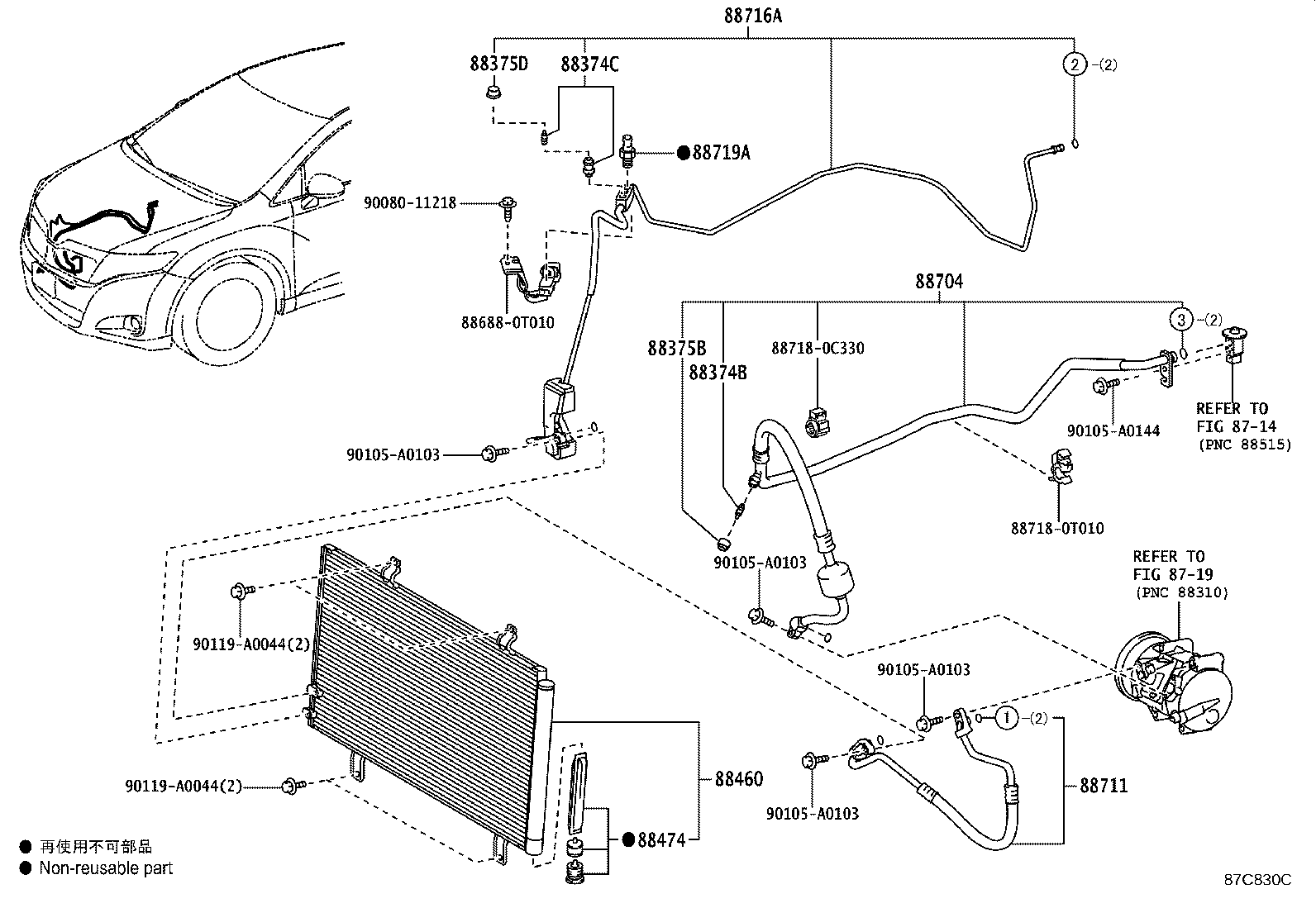

Figure 87A542F 87A542F 2008-11 → 2012-05 Figure 87C829C 87C829C 2012-05 → — Figure 87A682D 87A682D 2009-01 → 2012-05 Figure 87C830C 87C830C 2012-05 → — Figure 878910A 878910A 2008-11 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88704 Hose Sub-assy, Suction
88711 Hose, Cooler Refrigerant Discharge, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
