Toyota Camry HV (JPP)
2006-03 → 2011-08 · chassis AHV40 · catalogue 287410 · United States
Supported model
Data version 2011-10

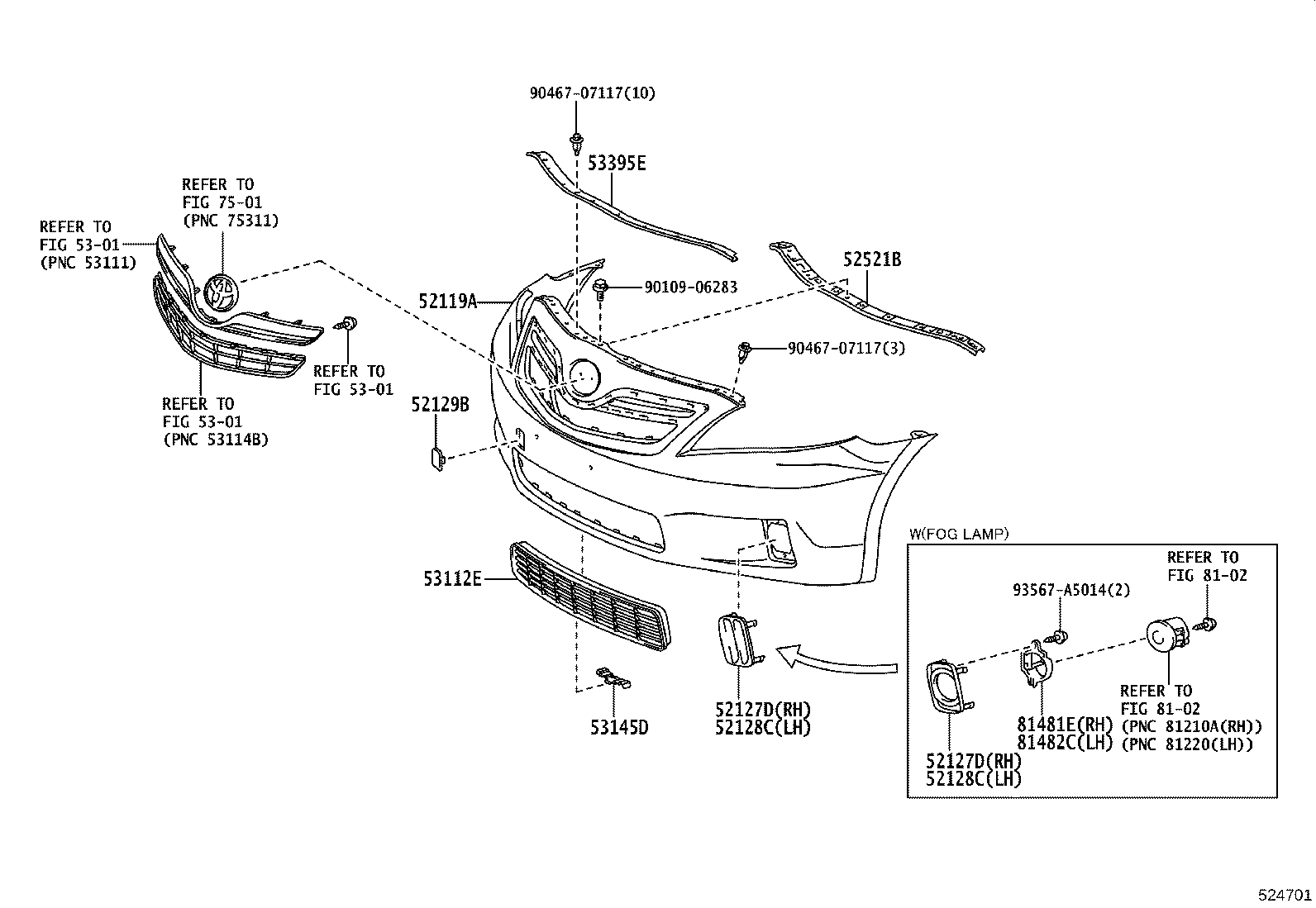

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52119A — Cover, Front Bumper | ||||
| 52119-33943 note |
Cover, Front Bumper
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 52119-33967 note |
Cover, Front Bumper
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 52127D — Cover, Front Bumper Hole, RH | ||||
| 52127-33050 |
Cover, Front Bumper Hole, RH
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 52030-33020 note |
Cover, Front Bumper Hole, RH
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 52127-33100 |
Cover, Front Bumper Hole, RH
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 52128C — Cover, Front Bumper Hole, LH | ||||
| 52128-33060 |
Cover, Front Bumper Hole, LH
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 52040-33020 note |
Cover, Front Bumper Hole, LH
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 52128-33100 |
Cover, Front Bumper Hole, LH
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 52129B — Cover, Front Bumper, Lower | ||||
| 52129-33020-A0 note |
Cover, Front Bumper, Lower
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 52129-33020-B0 note |
Cover, Front Bumper, Lower
2006-03 → 2007-07
ended
|
AHV40 JPP | — | |
| 52129-33020-B1 note |
Cover, Front Bumper, Lower
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 52129-33020-B2 note |
Cover, Front Bumper, Lower
2007-07 → 2009-01
ended
|
AHV40 JPP | — | |
| 52129-33020-C0 note |
Cover, Front Bumper, Lower
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 52129-33020-D0 note |
Cover, Front Bumper, Lower
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 52129-33020-E0 note |
Cover, Front Bumper, Lower
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 52129-33020-G0 note |
Cover, Front Bumper, Lower
2006-03 → 2007-10
ended
|
AHV40 JPP | — | |
| 52129-33020-H0 note |
Cover, Front Bumper, Lower
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 52129-33020-J0 note |
Cover, Front Bumper, Lower
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 52129-33020-J1 note |
Cover, Front Bumper, Lower
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 52129-33903 |
Cover, Front Bumper, Lower
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 52521B — Retainer, Front Bumper, Upper | ||||
| 52521-33070 |
Retainer, Front Bumper, Upper
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 52521-33080 |
Retainer, Front Bumper, Upper
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 53112E — Grille, Radiator, Lower NO.1 | ||||
| 53112-33030 note |
Grille, Radiator, Lower NO.1
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 53112-33050 note |
Grille, Radiator, Lower NO.1
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 53145D — Clip, Radiator Grille | ||||
| 53145-33010 |
Clip, Radiator Grille
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 53395E — Seal, Hood TO Front End Panel | ||||
| 53395-33010 |
Seal, Hood TO Front End Panel
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 53395-33010 |
Seal, Hood TO Front End Panel
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 81481E — Cover, Fog Lamp, RH | ||||
| 81481-33010 note |
Cover, Fog Lamp, RH
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 81482C — Cover, Fog Lamp, LH | ||||
| 81482-33010 note |
Cover, Fog Lamp, LH
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
