Toyota Camry HV (JPP)
2006-03 → 2011-08 · chassis AHV40 · catalogue 287410 · United States
Supported model
Data version 2011-10

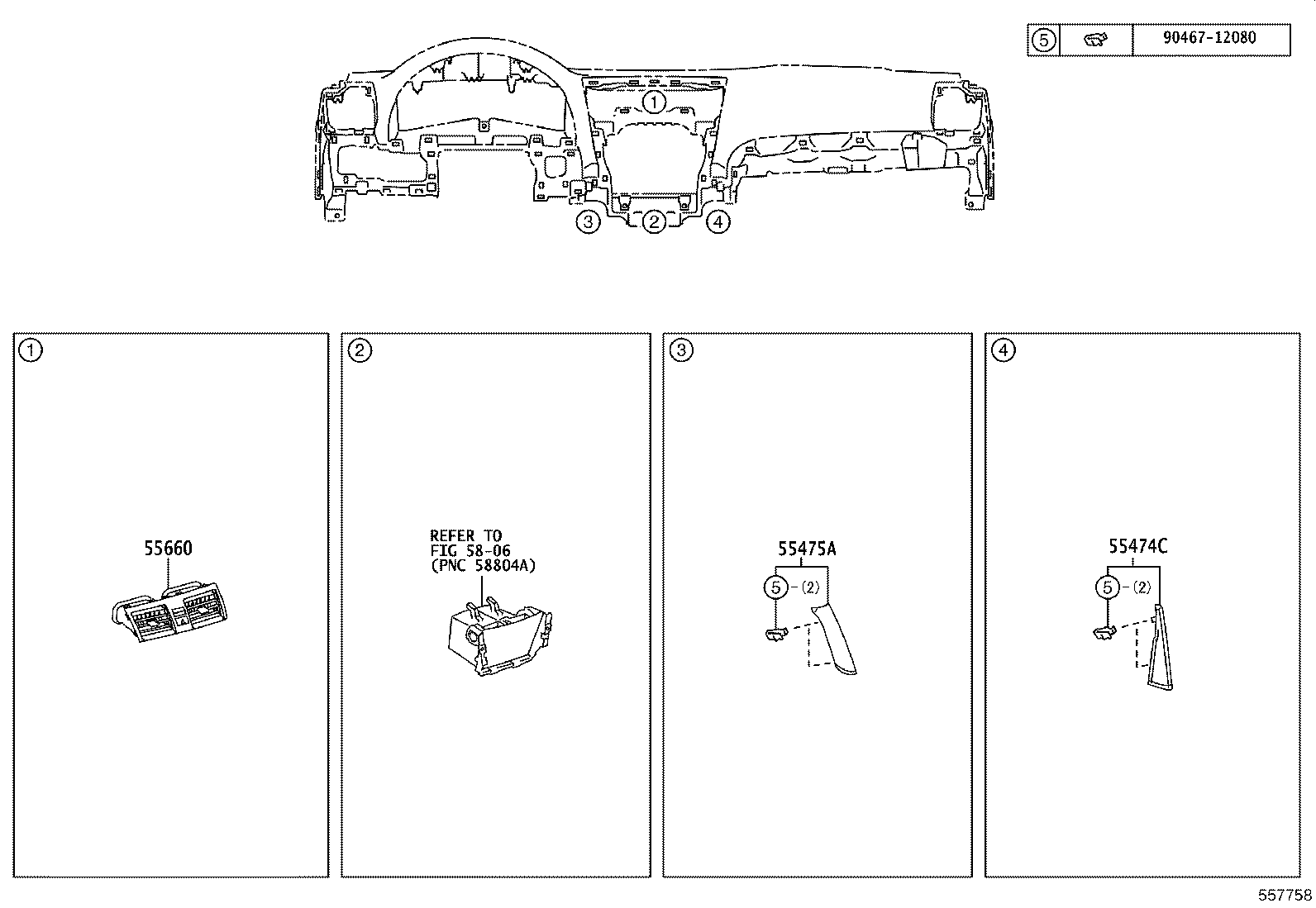

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55474C — Garnish, Instrument Cluster Finish Panel, NO.1 | ||||
| 55474-33050-B2 note |
Garnish, Instrument Cluster Finish Panel, NO.1
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 55474-33050-E1 note |
Garnish, Instrument Cluster Finish Panel, NO.1
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 55474-33050-B2 note |
Garnish, Instrument Cluster Finish Panel, NO.1
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 55474-33050-E1 note |
Garnish, Instrument Cluster Finish Panel, NO.1
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 55475A — Garnish, Instrument Cluster Finish Panel, NO.2 | ||||
| 55475-33030-B2 note |
Garnish, Instrument Cluster Finish Panel, NO.2
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 55475-33030-E1 note |
Garnish, Instrument Cluster Finish Panel, NO.2
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 55475-33030-B2 note |
Garnish, Instrument Cluster Finish Panel, NO.2
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 55475-33030-E1 note |
Garnish, Instrument Cluster Finish Panel, NO.2
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 55660 — Register Assy, Instrument Panel, NO.2 | ||||
| 55660-33190-B1 note |
Register Assy, Instrument Panel, NO.2
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 55660-33190-E0 note |
Register Assy, Instrument Panel, NO.2
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 55660-33190-B1 note |
Register Assy, Instrument Panel, NO.2
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 55660-33190-E0 note |
Register Assy, Instrument Panel, NO.2
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
