Toyota Camry HV (JPP)
2006-03 → 2011-08 · chassis AHV40 · catalogue 287410 · United States
Supported model
Data version 2011-10

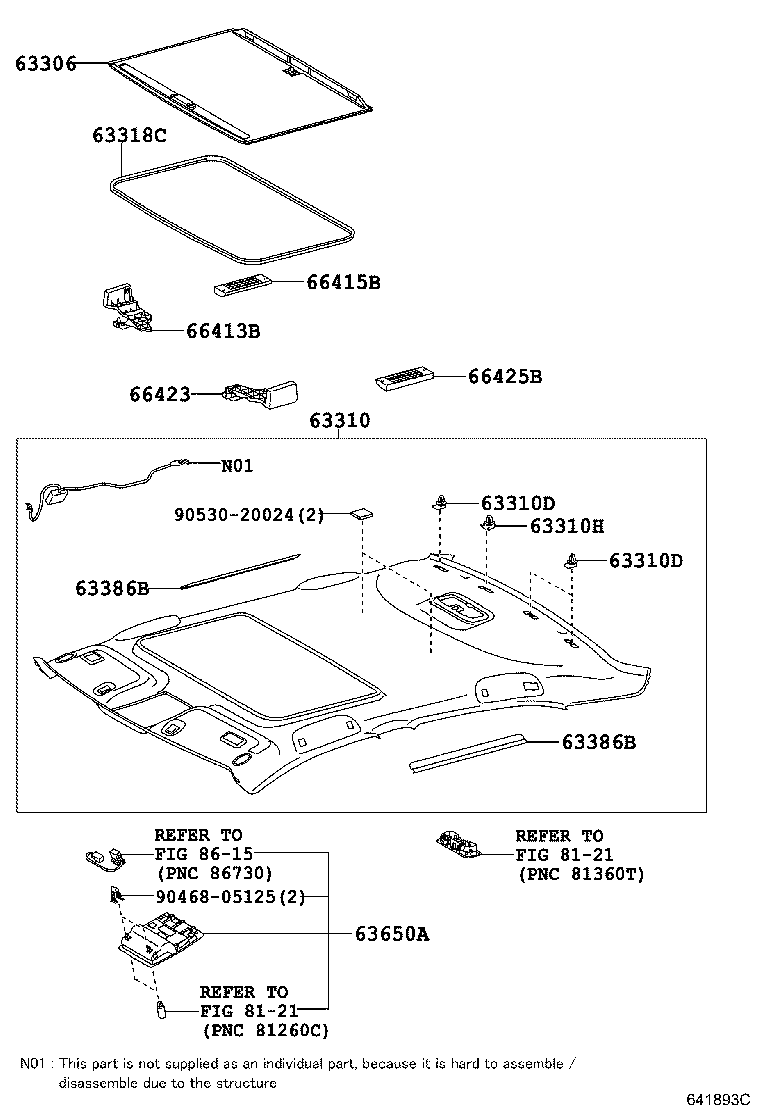

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63306 — Trim Sub-assy, Sunshade | ||||
| 63306-33090-B0 note |
Trim Sub-assy, Sunshade
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 63306-33090-E0 note |
Trim Sub-assy, Sunshade
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 63306-33090-B0 note |
Trim Sub-assy, Sunshade
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 63306-33090-E0 note |
Trim Sub-assy, Sunshade
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 63310 — Headlining Assy, Roof | ||||
| 63310-33480-B0 note |
Headlining Assy, Roof
2006-03 → 2006-05
ended
|
AHV40 JPP | — | |
| 63310-33480-E0 note |
Headlining Assy, Roof
2006-03 → 2006-05
ended
|
AHV40 JPP | — | |
| 63310-33481-B0 note |
Headlining Assy, Roof
2006-05 → 2009-01
ended
|
AHV40 JPP | — | |
| 63310-33481-E0 note |
Headlining Assy, Roof
2006-05 → 2009-01
ended
|
AHV40 JPP | — | |
| 63310-33510-B0 note |
Headlining Assy, Roof
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 63310-33510-E0 note |
Headlining Assy, Roof
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 63310-33570-B0 note |
Headlining Assy, Roof
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 63310-33570-E0 note |
Headlining Assy, Roof
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 63310-33620-B0 note |
Headlining Assy, Roof
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 63310-33620-E0 note |
Headlining Assy, Roof
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 63310D — Clip, Roof Headlining | ||||
| 90467-09126 |
Clip, Roof Headlining
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 90467-09126 |
Clip, Roof Headlining
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 63310H — Clip(FOR ROOF HEADLINING) | ||||
| 90467-10181 |
Clip(FOR ROOF HEADLINING)
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 90467-10181 |
Clip(FOR ROOF HEADLINING)
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 63318C — Moulding, Sun Roof Opening Trim | ||||
| 63318-33050-B0 note |
Moulding, Sun Roof Opening Trim
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 63318-33050-E0 note |
Moulding, Sun Roof Opening Trim
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 63318-33050-B0 note |
Moulding, Sun Roof Opening Trim
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 63318-33050-E0 note |
Moulding, Sun Roof Opening Trim
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 63386B — Reinforcement, Roof Headlining Trim | ||||
| 63386-33010 |
Reinforcement, Roof Headlining Trim
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 63386-33010 |
Reinforcement, Roof Headlining Trim
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 63650A — Box Assy, Roof Console | ||||
| 63650-33260-B0 note |
Box Assy, Roof Console
2006-03 → 2007-12
ended
|
AHV40 JPP | — | |
| 63650-33260-E0 note |
Box Assy, Roof Console
2006-03 → 2007-12
ended
|
AHV40 JPP | — | |
| 63650-33261-B0 note |
Box Assy, Roof Console
2008-01 → 2009-01
ended
|
AHV40 JPP | — | |
| 63650-33261-E0 note |
Box Assy, Roof Console
2008-01 → 2009-01
ended
|
AHV40 JPP | — | |
| 63650-33310-B0 note |
Box Assy, Roof Console
2006-03 → 2007-12
ended
|
AHV40 JPP | — | |
| 63650-33310-E0 note |
Box Assy, Roof Console
2006-03 → 2007-12
ended
|
AHV40 JPP | — | |
| 63650-33311-B0 note |
Box Assy, Roof Console
2008-01 → 2009-01
ended
|
AHV40 JPP | — | |
| 63650-33311-E0 note |
Box Assy, Roof Console
2008-01 → 2009-01
ended
|
AHV40 JPP | — | |
| 63650-33090-B0 note |
Box Assy, Roof Console
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 63650-33090-E0 note |
Box Assy, Roof Console
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 63650-33110-B0 note |
Box Assy, Roof Console
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 63650-33110-E0 note |
Box Assy, Roof Console
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 63650-33120-B0 note |
Box Assy, Roof Console
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 63650-33120-E0 note |
Box Assy, Roof Console
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 63650-33140-B0 note |
Box Assy, Roof Console
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 63650-33140-E0 note |
Box Assy, Roof Console
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 66413B — Spacer, Side Rail, Front RH | ||||
| 66413-33050 note |
Spacer, Side Rail, Front RH
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 66413-33050 note |
Spacer, Side Rail, Front RH
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 66415B — Spacer, Side Rail, Rear NO.2 RH | ||||
| 66415-33030 |
Spacer, Side Rail, Rear NO.2 RH
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 66415-33040 note |
Spacer, Side Rail, Rear NO.2 RH
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 66415-33030 |
Spacer, Side Rail, Rear NO.2 RH
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 66415-33040 note |
Spacer, Side Rail, Rear NO.2 RH
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 66423 — Spacer, Side Rail, Front LH | ||||
| 66423-33050 note |
Spacer, Side Rail, Front LH
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 66423-33050 note |
Spacer, Side Rail, Front LH
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 66425B — Spacer, Side Rail, Rear NO.2 LH | ||||
| 66415-33040 note |
Spacer, Side Rail, Rear NO.2 LH
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 66425-33030 |
Spacer, Side Rail, Rear NO.2 LH
2006-03 → 2009-01
ended
|
AHV40 JPP | — | |
| 66415-33040 note |
Spacer, Side Rail, Rear NO.2 LH
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
| 66425-33030 |
Spacer, Side Rail, Rear NO.2 LH
2009-01 → 2011-08
ended
|
AHV40 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
