Toyota Camry HV (JPP)

2006-03 → 2011-08 · chassis AHV40 · catalogue 287410 · United States

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

16 part groups · 3 illustrations

Illustrations

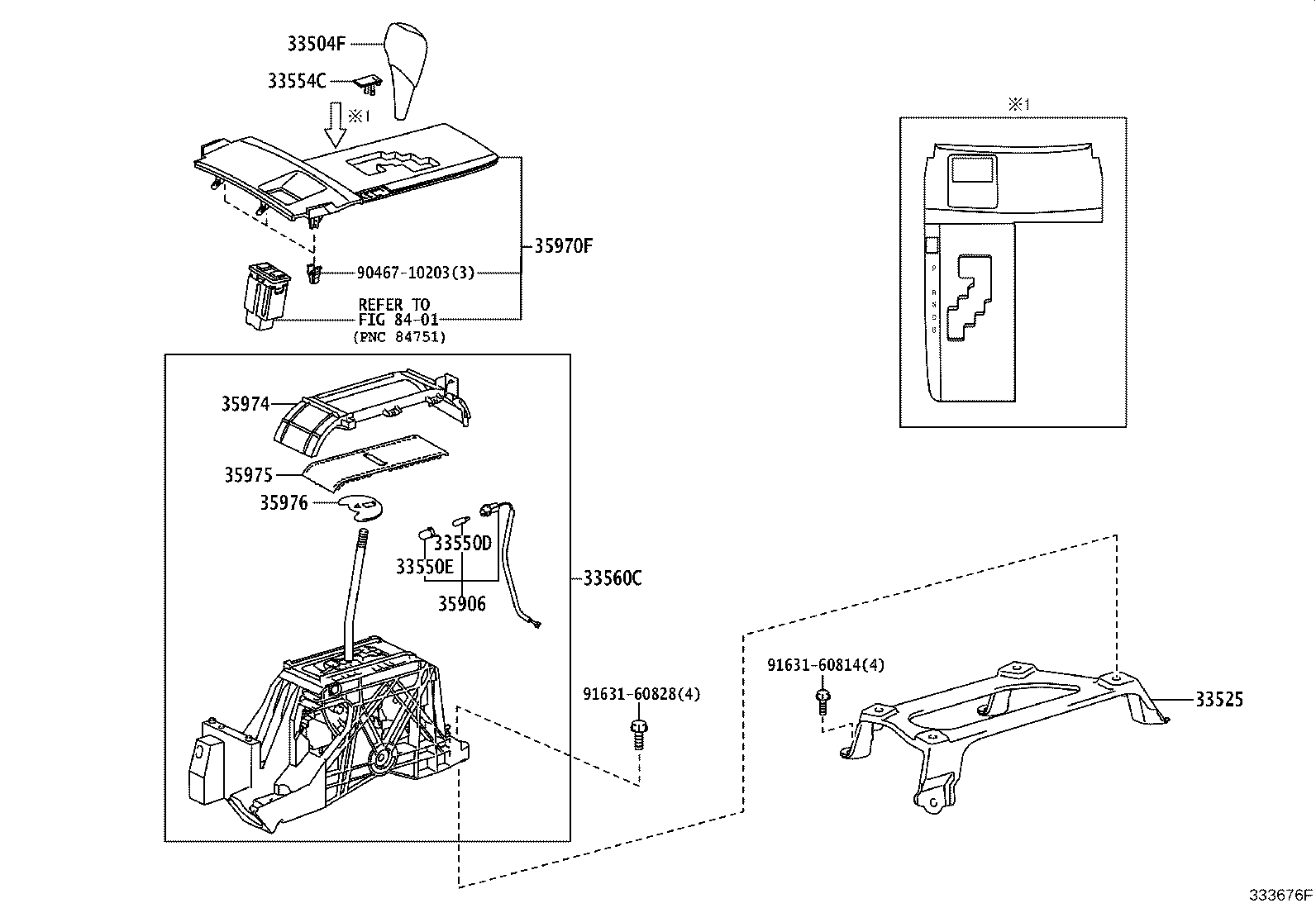

Figure 332934H 332934H 2006-03 → 2008-01 Figure 333676F 333676F 2008-01 → — Figure 332935A 332935A 2006-03 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33525 Support, Shift Lever
33550D Bulb, Position Indicator Lamp
33550E Cap, Position Indicator Lamp
33554C Cover, Shift Lock Release Button
33560C Lever Assy, Shift, Lower
33723Q Nut (FOR CONNECTING ROD SWIVEL)
33820B Cable Assy, Transmission Control
33823 Bracket, Transmission Control Cable, NO.1
33826A Bracket, Transmission Control Cable, NO.2
33826B Bracket, Transmission Control Cable, NO.3
35906 Wire Sub-assy, Indicator Lamp
35970F Housing Assy, Position Indicator
35974 Housing, Position Indicator, Lower
35975 Cover, Slide (FOR POSITION INDICATOR)
35976 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
