Toyota Camry HV (JPP)
2006-03 → 2011-08 · chassis AHV40 · catalogue 287410 · United States
Supported model
Data version 2011-10

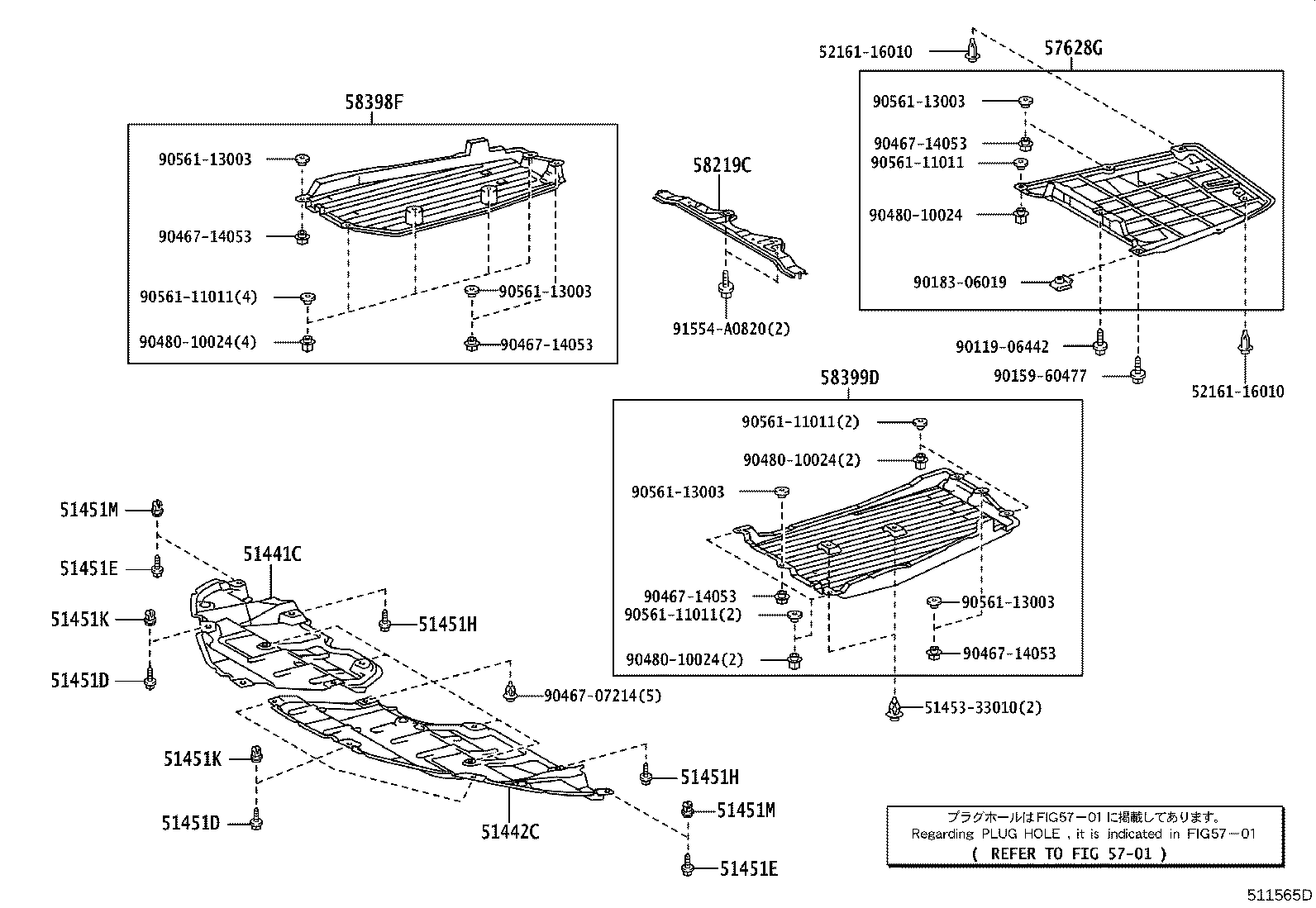

Suspension Crossmember & Under Cover
31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51035 | Plate Sub-assy, Frame Side Rail, RH |
| 51036 | Plate Sub-assy, Frame Side Rail, LH |
| 51100G | Frame Assy, Front |
| 51206A | Member Sub-assy, Rear Suspension |
| 51227B | Damper, Front Suspension Member Dynamic |
| 51441C | Cover, Engine Under, RH |
| 51442C | Cover, Engine Under, LH |
| 51451D | Screw, NO.1 |
| 51451E | Screw, NO.2 |
| 51451H | Screw, NO.3 |
| 51451K | Grommet, Screw, NO.1 |
| 51451M | Grommet, Screw, NO.2 |
| 51967B | Hook, Transport, Rear RH |
| 51968B | Hook, Transport, Rear LH |
| 52211J | Cushion, Front Suspension Member Body Mounting, Front |
| 52213A | Stopper, Front Suspension Member Body Mounting, Front |
| 52215 | Cushion, Front Suspension Member Body Mounting, Rear |
| 52216B | Stopper, Front Suspension Member Body Mounting, Rear |
| 52217E | Cushion, Front Suspension Member Body Mounting, Rear LH |
| 52257 | Brace, Front Suspension Member, Rear RH |
| 52258A | Brace, Front Suspension Member, Rear LH |
| 52271 | Cushion, Rear Suspension Member |
| 52271D | Cushion, Rear Suspension Member Body Mounting, Front |
| 52273 | Stopper, Rear Suspension Member, Lower |
| 52273A | Stopper, Rear Suspension Member, Lower RH |
| 52274A | Stopper, Rear Suspension Member, Lower LH |
| 52275A | Cushion, Rear Suspension Member Body Mounting, Rear |
| 57628G | Cover, Rear Floor Side Member, LH |
| 58219C | Plate, Center Floor Rear End |
| 58398F | Cover, Floor Under, NO.1 |
| 58399D | Cover, Floor Under, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
