Toyota Camry HV (JPP)

2006-03 → 2011-08 · chassis AHV40 · catalogue 287410 · United States

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

53 part groups · 11 illustrations

Illustrations

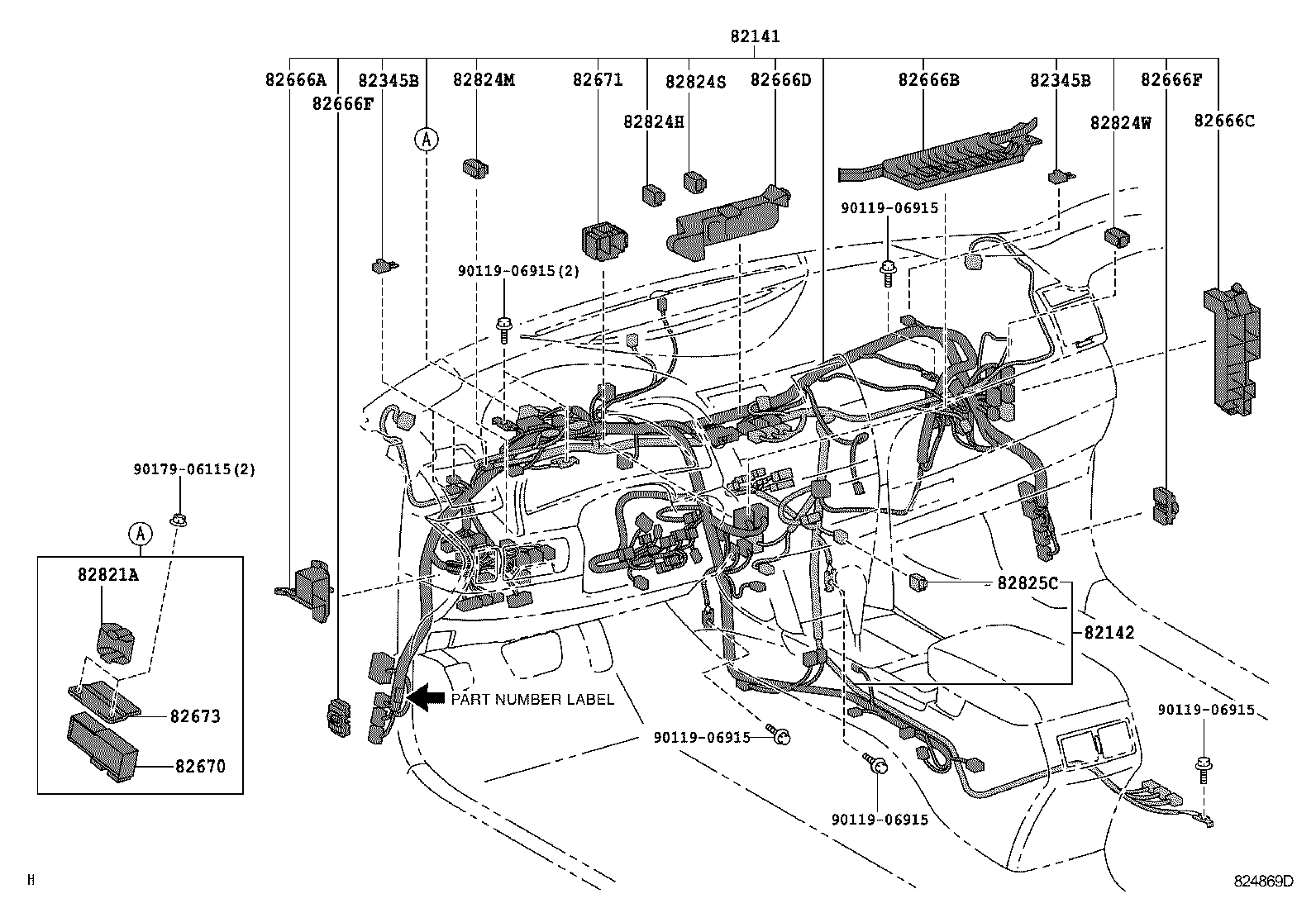

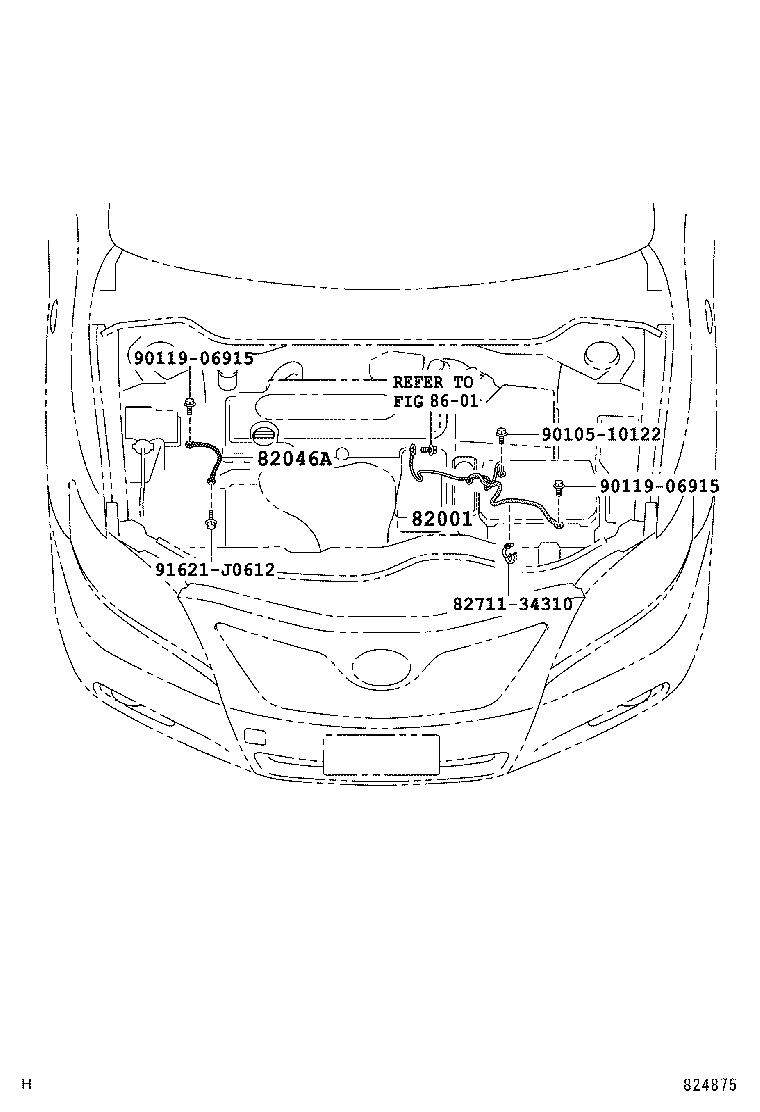

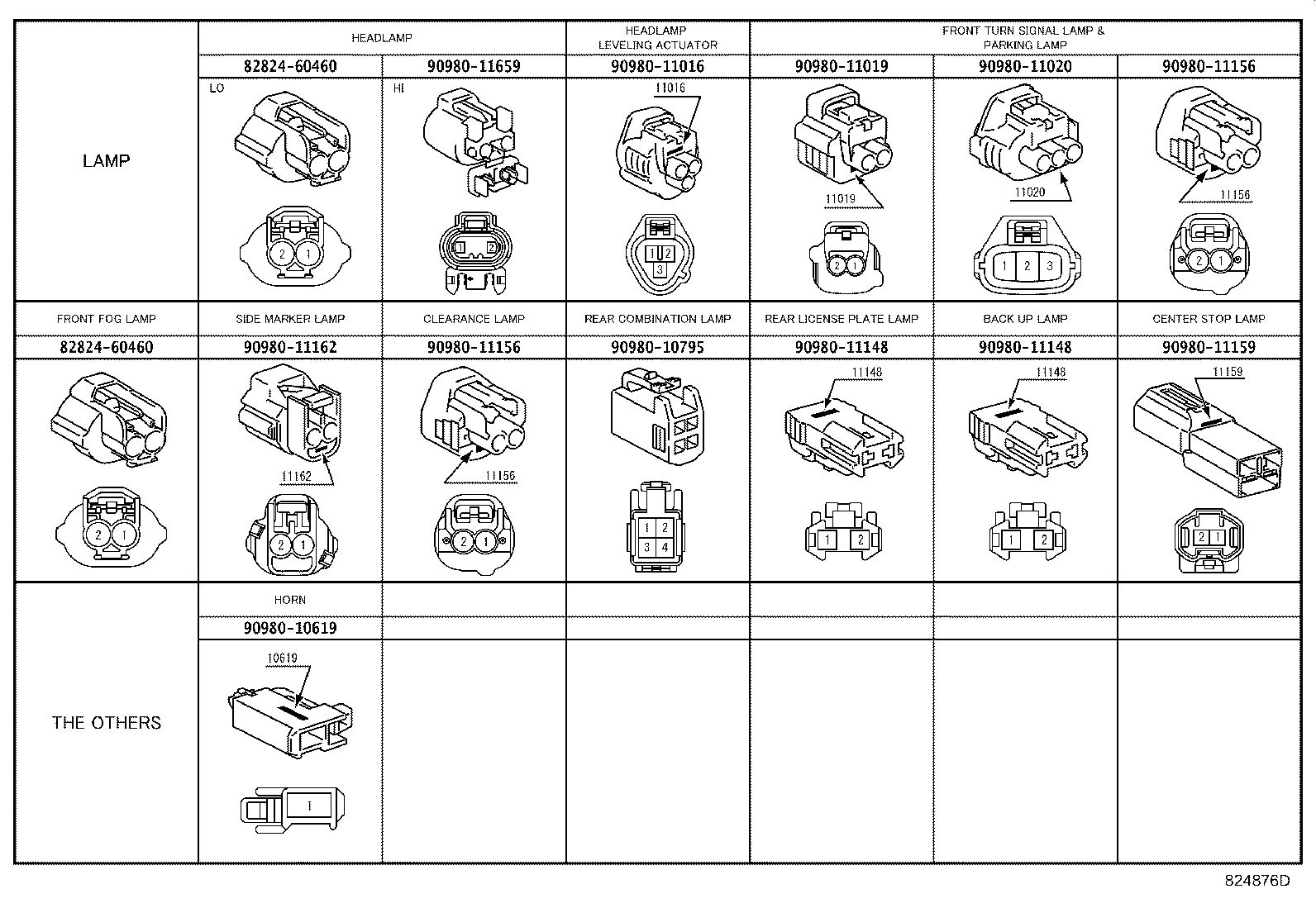

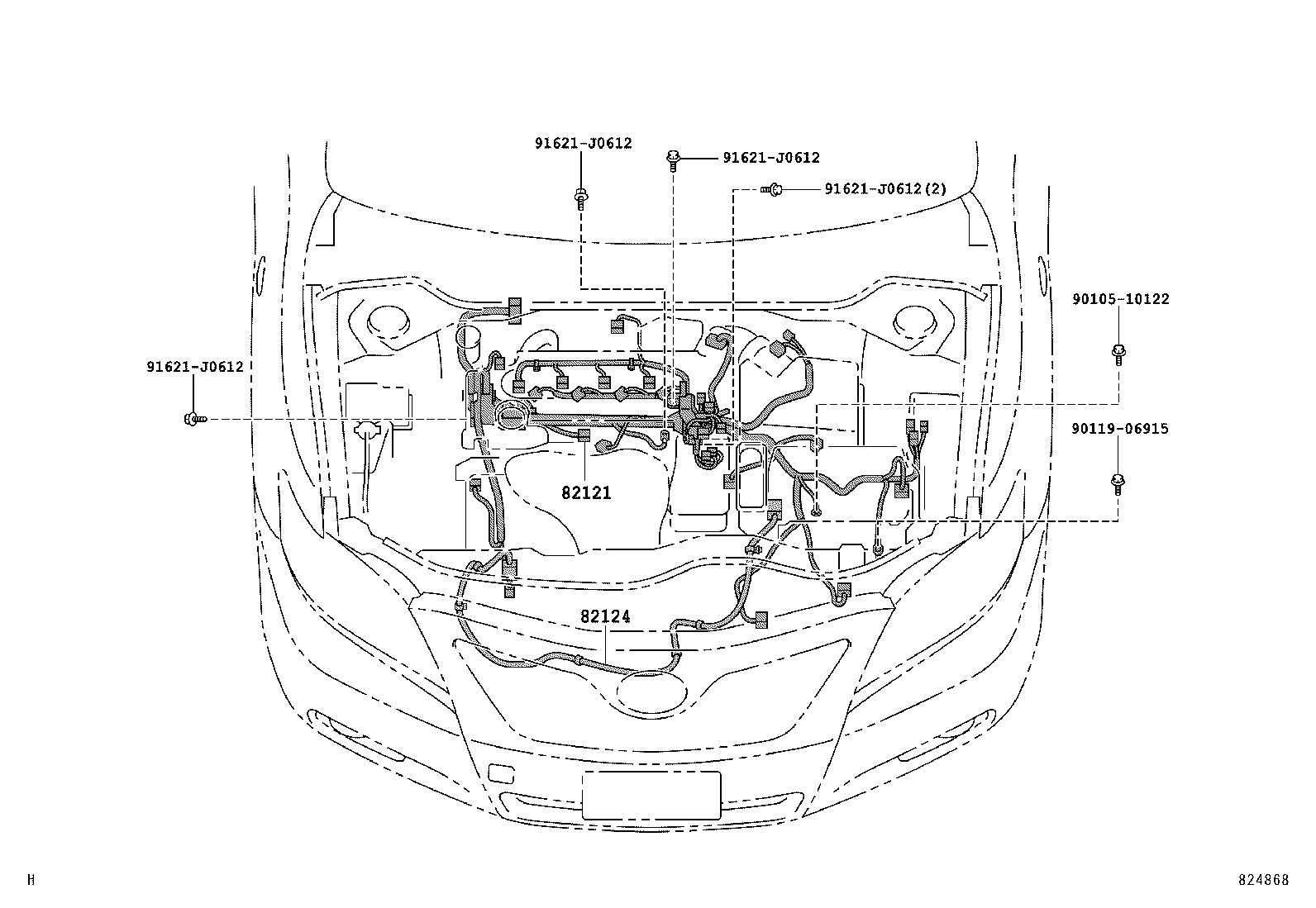

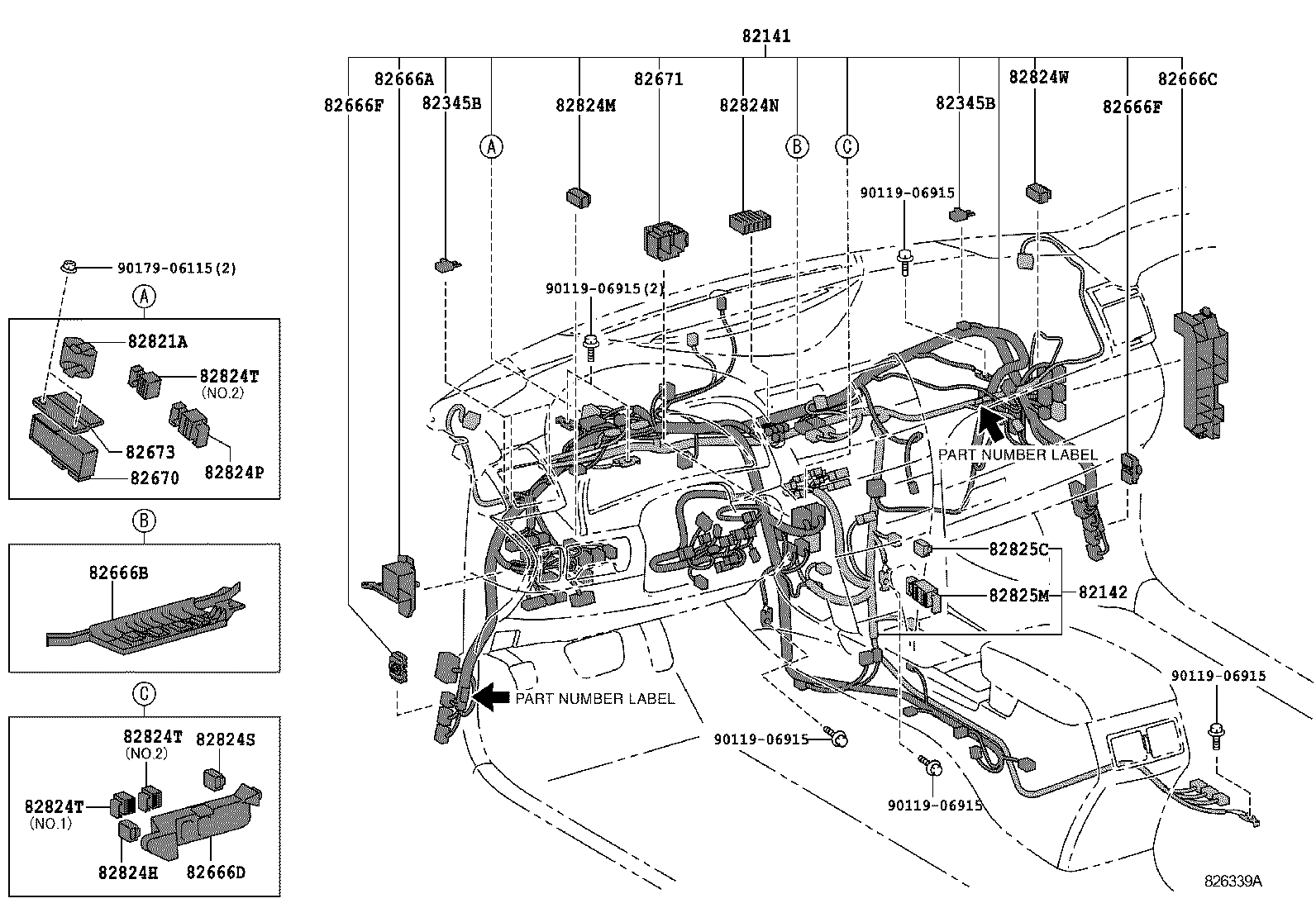

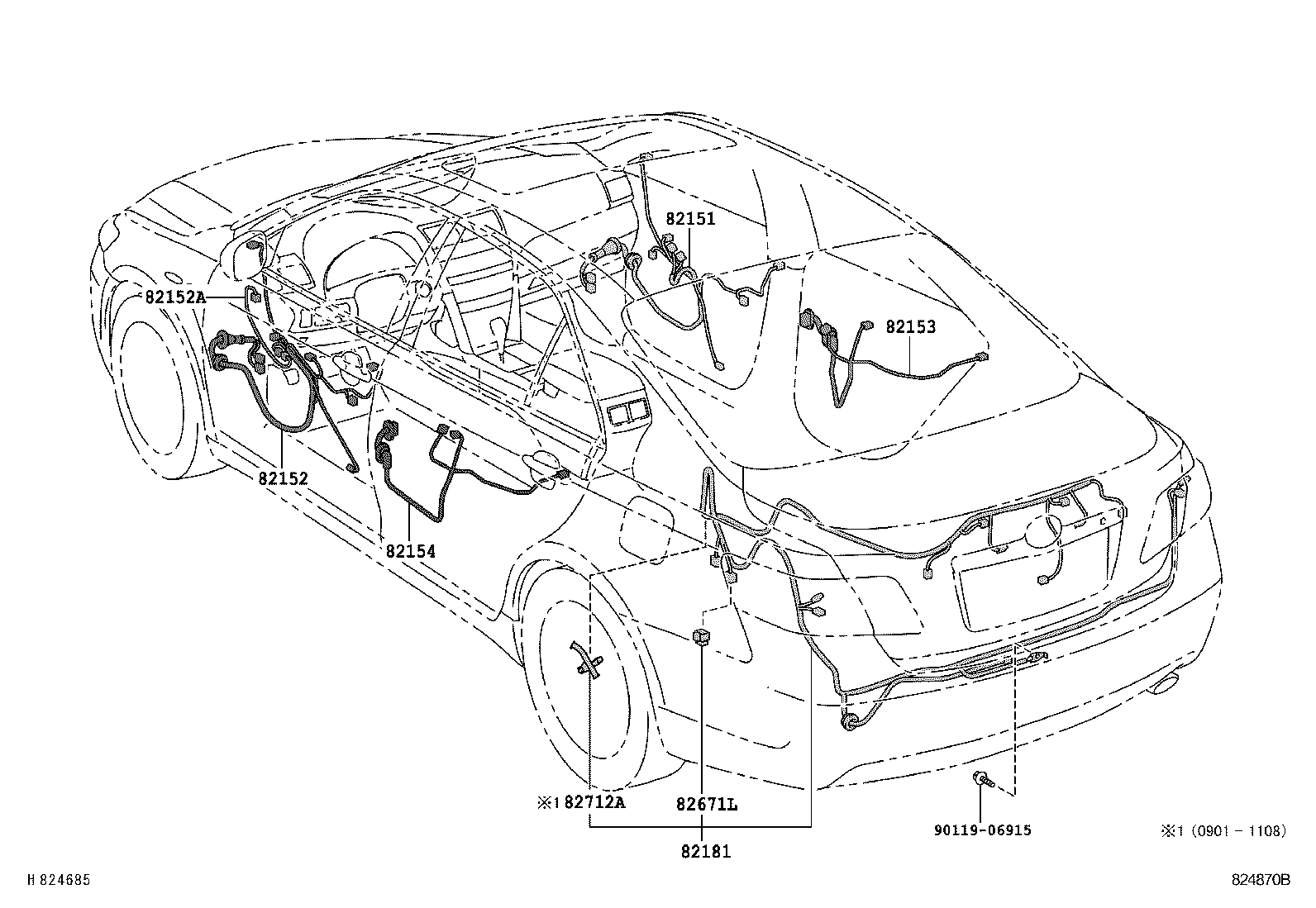

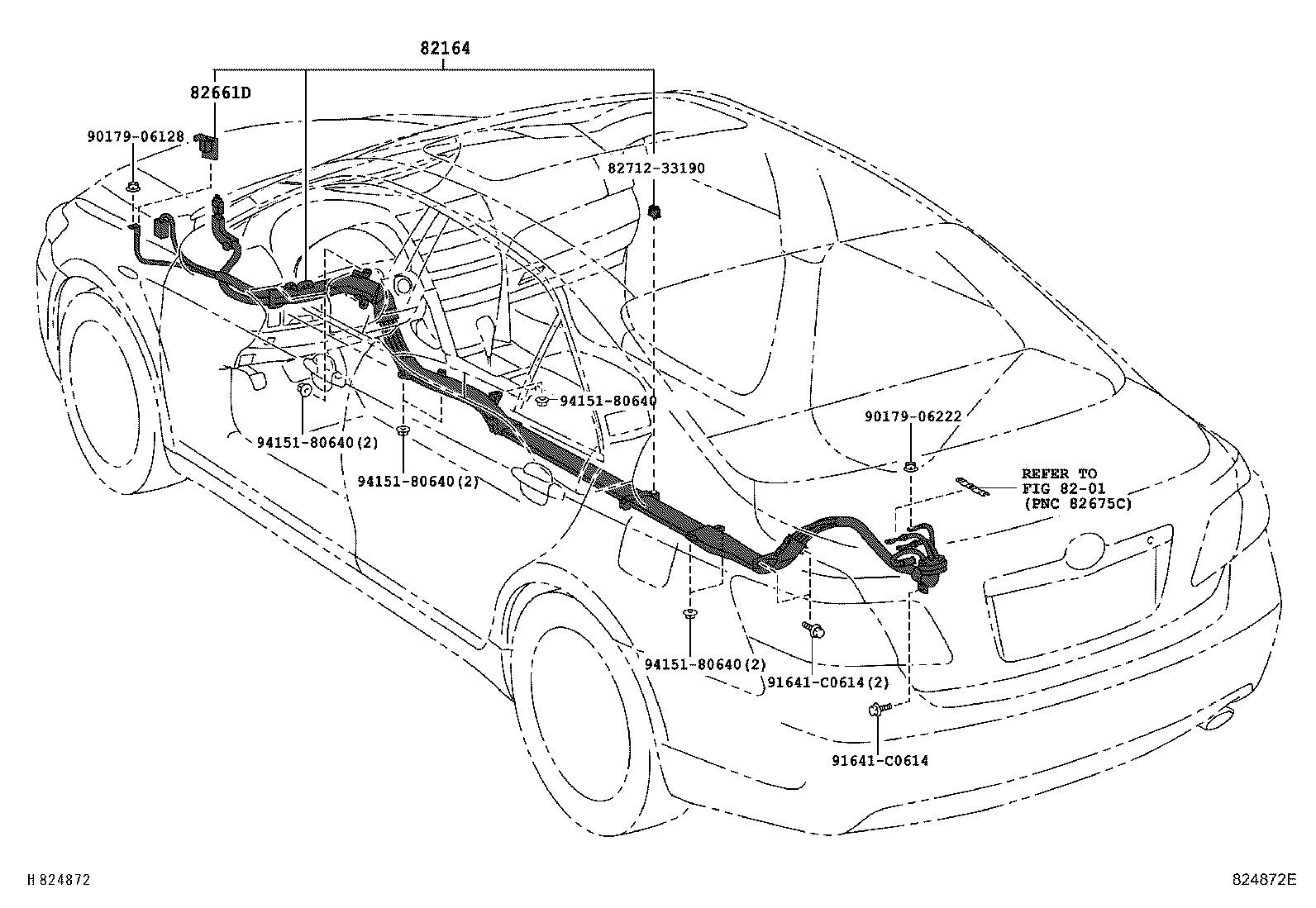

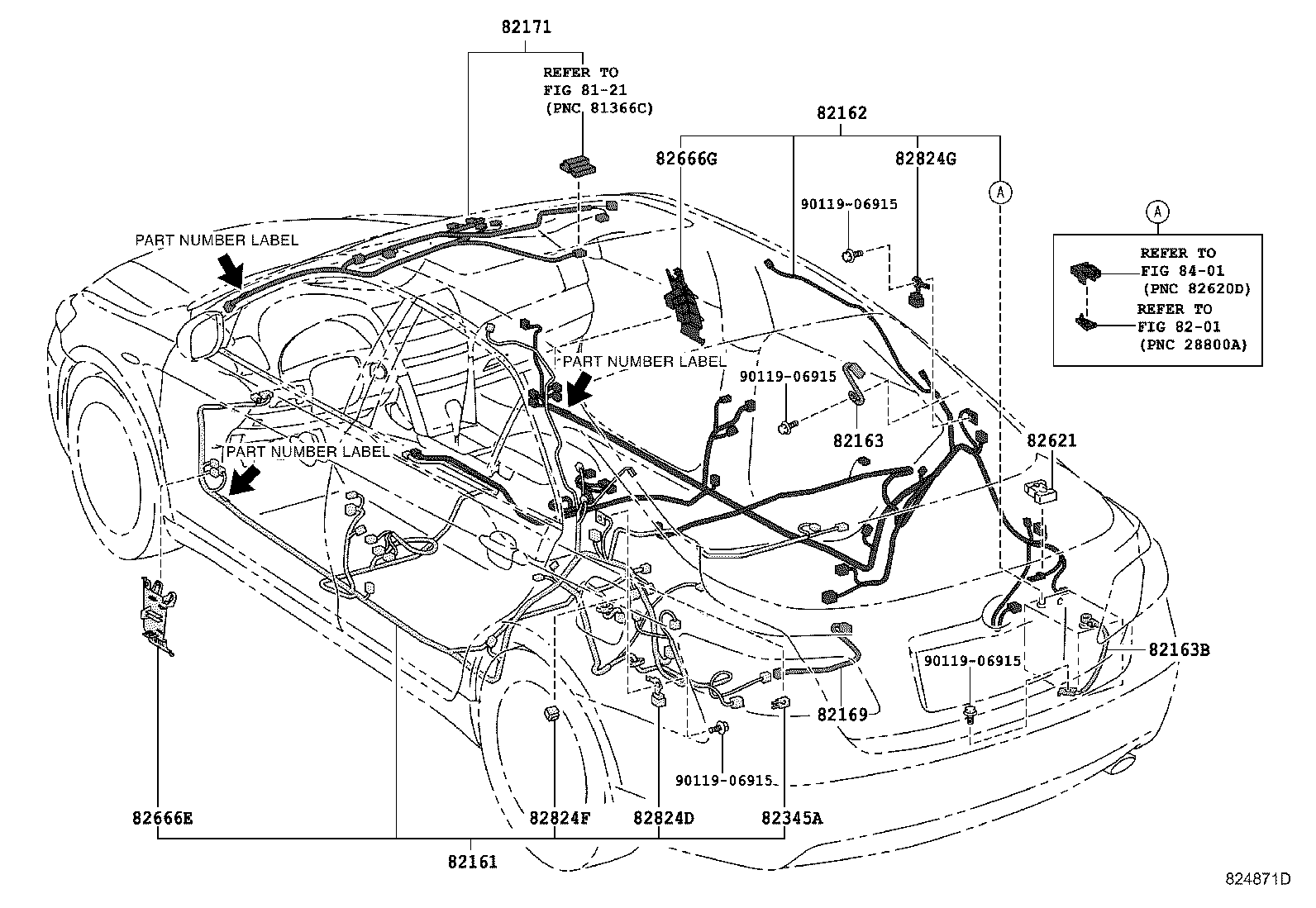

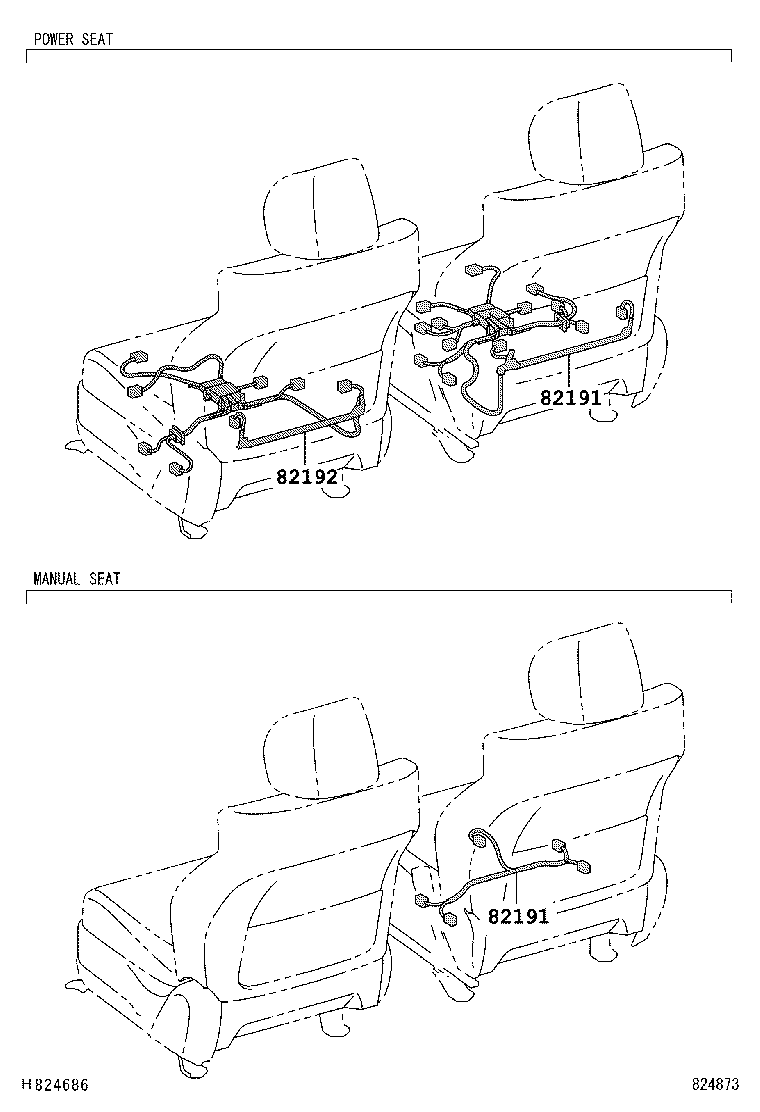

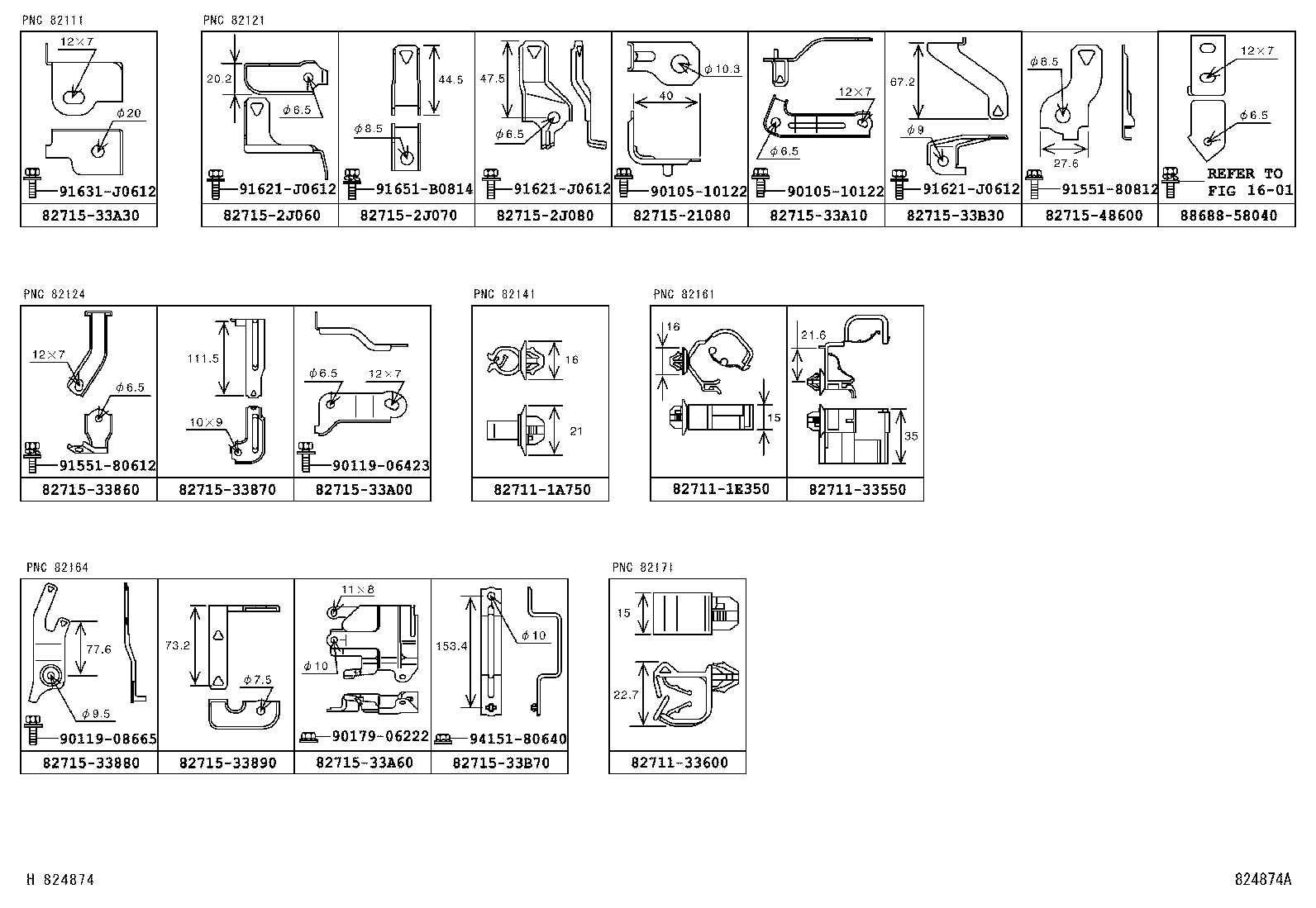

Figure 824867C 824867C 2006-03 → — Figure 824868 824868 2006-03 → — Figure 824869D 824869D 2006-03 → 2009-01 Figure 826339A 826339A 2009-01 → — Figure 824870B 824870B 2006-03 → — Figure 824871D 824871D 2006-03 → — Figure 824872E 824872E 2006-03 → — Figure 824873 824873 2006-03 → — Figure 824874A 824874A 2006-03 → — Figure 824875 824875 2006-03 → — Figure 824876D 824876D 2006-03 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82046A Wire Sub-assy, Body Ground, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82124 Wire, Engine, NO.4
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82163B Wire, Floor NO.5
82164 Wire, Frame
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82345A Diode
82345B Diode
82621 Cover, Fusible Link
82661D Cover, Relay Block, Side NO.1
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82670 Block Assy, Junction, NO.1
82671 Block, Junction
82671L Block, Junction, NO.4
82673 Bracket, Junction Block
82712A Support, Wiring Harness
82821A Cover, Connector
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824H Connector, Wiring Harness
82824M Connector, Wiring Harness
82824N Connector, Wiring Harness
82824P Connector, Wiring Harness
82824S Connector, Wiring Harness
82824T Connector, Wiring Harness
82824W Connector, Wiring Harness
82825C Connector, Wiring Harness
82825M Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
