Toyota Camry HV (JPP)

2006-03 → 2011-08 · chassis AHV40 · catalogue 287410 · United States

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

18 part groups · 3 illustrations

Illustrations

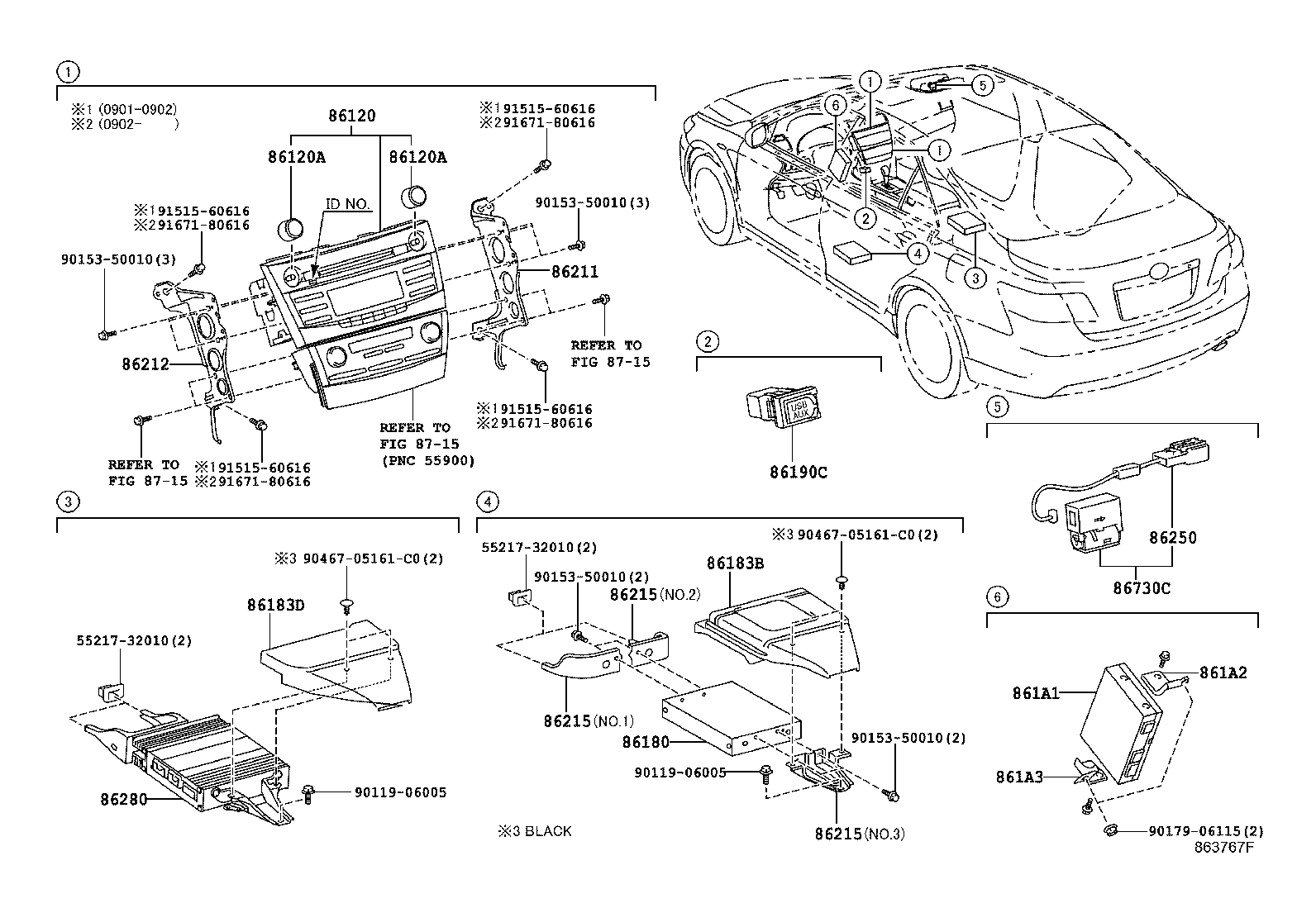

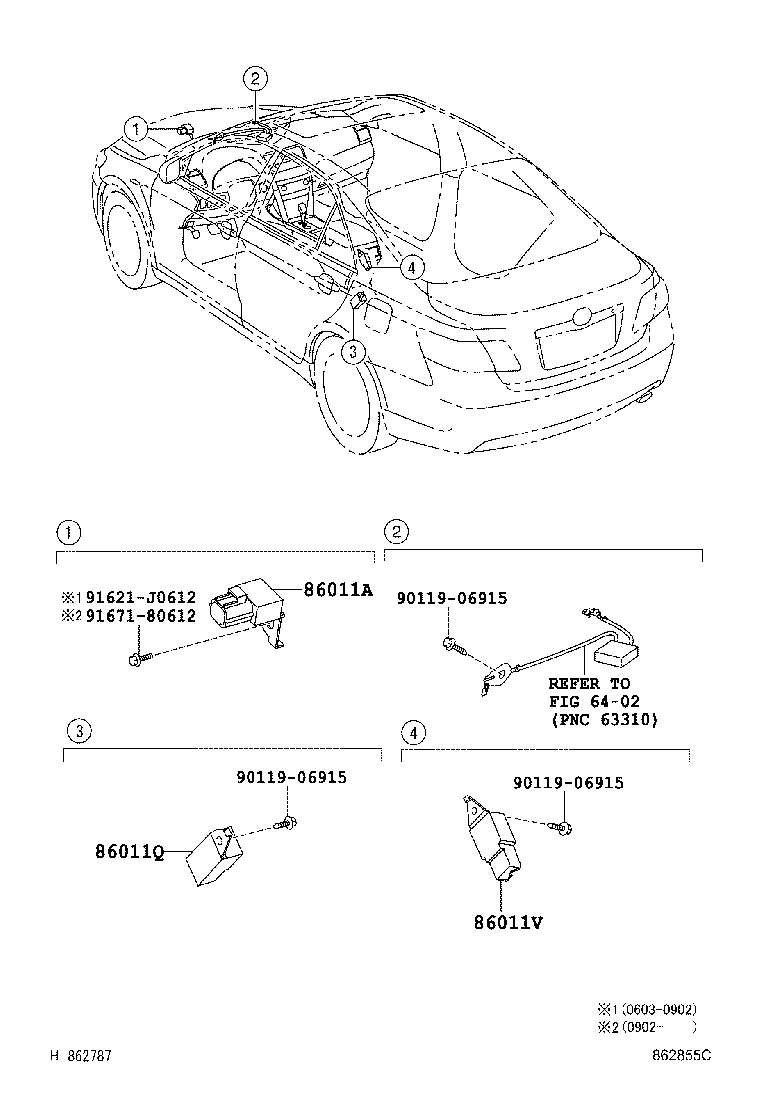

Figure 862854E 862854E 2006-03 → 2009-01 Figure 863767F 863767F 2009-01 → — Figure 862855C 862855C 2006-03 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011Q Condenser, Radio Setting
86011V Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86180 Tuner Assy, Stereo Component
86183B Cover, Audio Rack
86183D Cover, Audio Amplifier
86190C Adapter Assy, Stereo Jack, NO.1
861A1 Computer, Multi-media Interface
861A2 Bracket, Multi-media Interface, NO.1
861A3 Bracket, Multi-media Interface, NO.2
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86215 Bracket, Radio, NO.5
86250 Microphone Assy, Amplifier
86280 Amplifier Assy, Stereo Component
86730C Microphone Assy, Telephone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
