Toyota Camry HV (NAP)
2006-10 → 2011-09 · chassis AHV40 · catalogue 288410 · United States
Supported model
Data version 2011-10

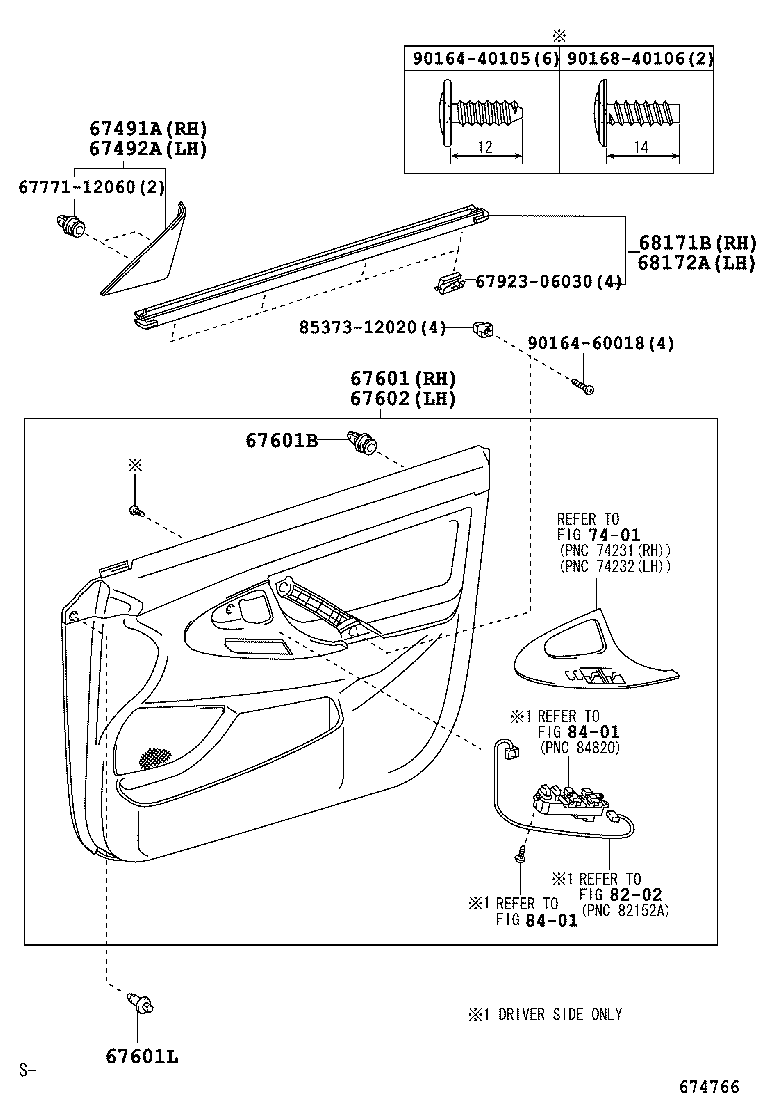

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 67491A — Garnish, Front Door Lower Frame Bracket, RH | ||||
| 67491-06040 |
Garnish, Front Door Lower Frame Bracket, RH
2006-10 → 2009-03
ended
|
AHV40 NAP | — | |
| 67491-06040 |
Garnish, Front Door Lower Frame Bracket, RH
2009-03 → —
|
AHV40 NAP | — | |
| 67492A — Garnish, Front Door Lower Frame Bracket, LH | ||||
| 67492-06040 |
Garnish, Front Door Lower Frame Bracket, LH
2006-10 → 2009-03
ended
|
AHV40 NAP | — | |
| 67492-06040 |
Garnish, Front Door Lower Frame Bracket, LH
2009-03 → —
|
AHV40 NAP | — | |
| 67601 — Board Sub-assy, Front Door Trim, RH | ||||
| 67610-06520-B3 note |
Board Sub-assy, Front Door Trim, RH
2006-10 → 2006-12
ended
|
AHV40 NAP | — | |
| 67610-06520-E3 note |
Board Sub-assy, Front Door Trim, RH
2006-10 → 2006-12
ended
|
AHV40 NAP | — | |
| 67610-06521-B3 note |
Board Sub-assy, Front Door Trim, RH
2007-01 → 2009-03
ended
|
AHV40 NAP | — | |
| 67610-06521-E3 note |
Board Sub-assy, Front Door Trim, RH
2007-01 → 2009-03
ended
|
AHV40 NAP | — | |
| 67610-06B20-B1 note |
Board Sub-assy, Front Door Trim, RH
2006-10 → 2006-12
ended
|
AHV40 NAP | — | |
| 67610-06B20-E1 note |
Board Sub-assy, Front Door Trim, RH
2006-10 → 2006-12
ended
|
AHV40 NAP | — | |
| 67610-06B21-B1 note |
Board Sub-assy, Front Door Trim, RH
2007-01 → 2009-03
ended
|
AHV40 NAP | — | |
| 67610-06B21-E1 note |
Board Sub-assy, Front Door Trim, RH
2007-01 → 2009-03
ended
|
AHV40 NAP | — | |
| 67610-06C80-B0 note |
Board Sub-assy, Front Door Trim, RH
2009-03 → 2011-09
ended
|
AHV40 NAP | — | |
| 67610-06C80-E0 note |
Board Sub-assy, Front Door Trim, RH
2009-03 → 2011-09
ended
|
AHV40 NAP | — | |
| 67610-06D20-B0 note |
Board Sub-assy, Front Door Trim, RH
2009-03 → 2011-09
ended
|
AHV40 NAP | — | |
| 67610-06D20-E0 note |
Board Sub-assy, Front Door Trim, RH
2009-03 → 2011-09
ended
|
AHV40 NAP | — | |
| 67610-06D90-B0 note |
Board Sub-assy, Front Door Trim, RH
2009-03 → 2011-09
ended
|
AHV40 NAP | — | |
| 67610-06D90-E0 note |
Board Sub-assy, Front Door Trim, RH
2009-03 → 2011-09
ended
|
AHV40 NAP | — | |
| 67601B — Clip(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-A0005 note |
Clip(FOR FRONT DOOR TRIM BOARD)
2006-10 → 2009-03
ended
|
AHV40 NAP | — | |
| 90467-A0005 |
Clip(FOR FRONT DOOR TRIM BOARD)
2006-10 → 2009-03
ended
|
AHV40 NAP | — | |
| 90467-A0005 |
Clip(FOR FRONT DOOR TRIM BOARD)
2009-03 → —
|
AHV40 NAP | — | |
| 67601L — Clip(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-A0016-B2 note |
Clip(FOR FRONT DOOR TRIM BOARD)
2006-10 → 2009-03
ended
|
AHV40 NAP | — | |
| 90467-A0016-B2 note |
Clip(FOR FRONT DOOR TRIM BOARD)
2009-03 → 2011-09
ended
|
AHV40 NAP | — | |
| 67602 — Board Sub-assy, Front Door Trim, LH | ||||
| 67620-06431-B3 note |
Board Sub-assy, Front Door Trim, LH
2006-10 → 2009-03
ended
|
AHV40 NAP | — | |
| 67620-06431-E3 note |
Board Sub-assy, Front Door Trim, LH
2006-10 → 2009-03
ended
|
AHV40 NAP | — | |
| 67620-06A31-B1 note |
Board Sub-assy, Front Door Trim, LH
2006-10 → 2006-12
ended
|
AHV40 NAP | — | |
| 67620-06A31-B1 note |
Board Sub-assy, Front Door Trim, LH
2007-01 → 2009-03
ended
|
AHV40 NAP | — | |
| 67620-06A31-E1 note |
Board Sub-assy, Front Door Trim, LH
2006-10 → 2006-12
ended
|
AHV40 NAP | — | |
| 67620-06A31-E1 note |
Board Sub-assy, Front Door Trim, LH
2007-01 → 2009-03
ended
|
AHV40 NAP | — | |
| 67620-06B30-B0 note |
Board Sub-assy, Front Door Trim, LH
2009-03 → 2011-09
ended
|
AHV40 NAP | — | |
| 67620-06B30-E0 note |
Board Sub-assy, Front Door Trim, LH
2009-03 → 2011-09
ended
|
AHV40 NAP | — | |
| 67620-06B70-B0 note |
Board Sub-assy, Front Door Trim, LH
2009-03 → 2011-09
ended
|
AHV40 NAP | — | |
| 67620-06B70-E0 note |
Board Sub-assy, Front Door Trim, LH
2009-03 → 2011-09
ended
|
AHV40 NAP | — | |
| 67620-06C40-B0 note |
Board Sub-assy, Front Door Trim, LH
2009-03 → 2011-09
ended
|
AHV40 NAP | — | |
| 67620-06C40-E0 note |
Board Sub-assy, Front Door Trim, LH
2009-03 → 2011-09
ended
|
AHV40 NAP | — | |
| 68171B — Weatherstrip, Front Door Glass, Inner RH | ||||
| 68171-06030 |
Weatherstrip, Front Door Glass, Inner RH
2006-10 → 2009-03
ended
|
AHV40 NAP | — | |
| 68171-06030 |
Weatherstrip, Front Door Glass, Inner RH
2009-03 → —
|
AHV40 NAP | — | |
| 68172A — Weatherstrip, Front Door Glass, Inner LH | ||||
| 68172-06030 |
Weatherstrip, Front Door Glass, Inner LH
2006-10 → 2009-03
ended
|
AHV40 NAP | — | |
| 68172-06030 |
Weatherstrip, Front Door Glass, Inner LH
2009-03 → —
|
AHV40 NAP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
