Toyota Camry HV (NAP)
2006-10 → 2011-09 · chassis AHV40 · catalogue 288410 · United States
Supported model
Data version 2011-10
Transaxle Assy(HEV OR BEV OR FCEV)

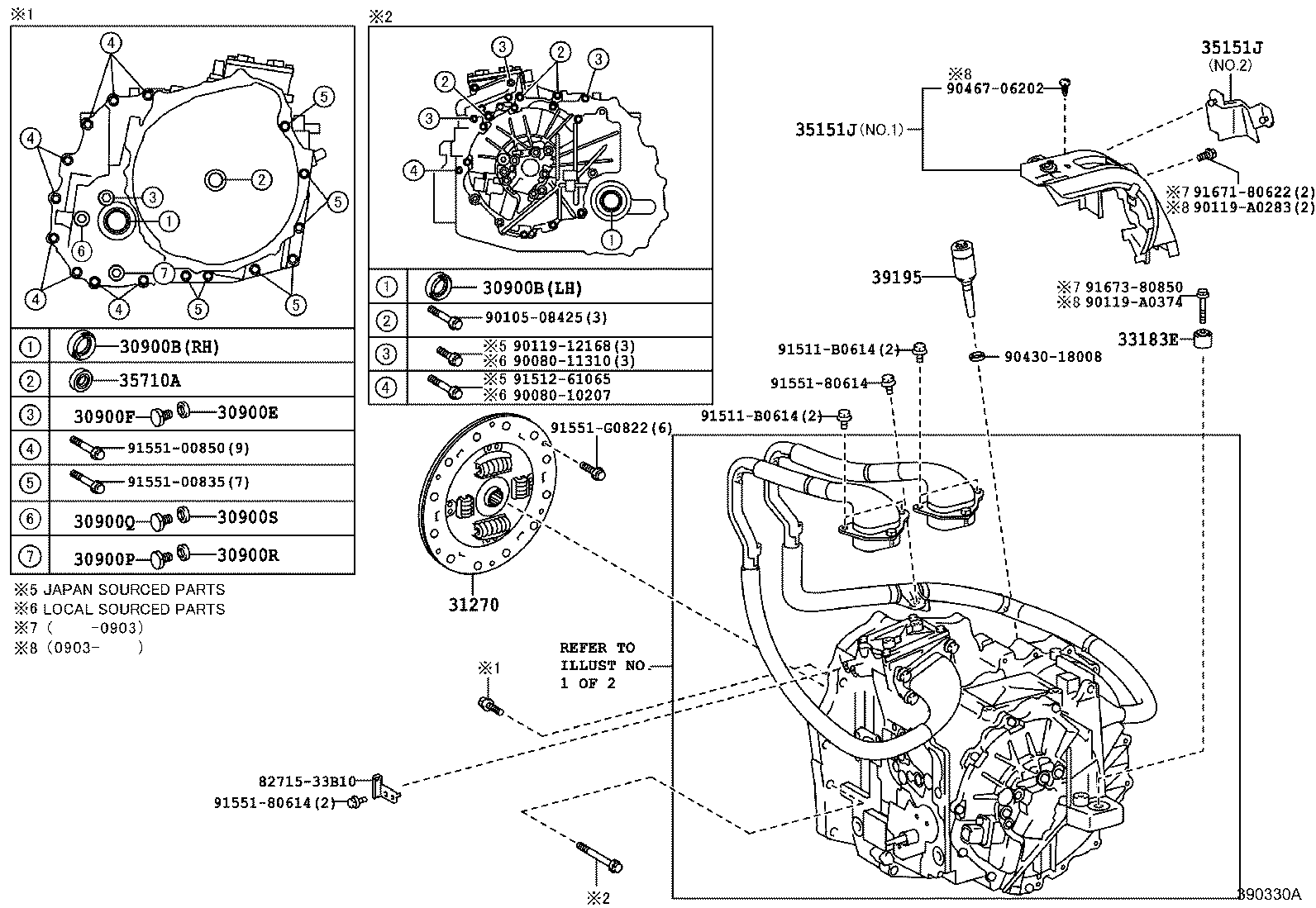

48 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 30900 | Transaxle Assy, Hybrid Vehicle |
| 30900B | Seal, Type T Oil(FOR HYBRID VEHICLE TRANSAXLE ASSY) |
| 30900E | Gasket(FOR TRANSAXLE HOUSING & CASE) |
| 30900F | Plug, W/Head Straight Screw, NO.2(FOR TRANSAXLE HSG & CASE) |
| 30900G | Gasket, NO.2(FOR TRANSAXLE HOUSING & CASE) |
| 30900N | Plug, Breather(FOR TRANSAXLE) |
| 30900P | Plug, Drain(HEV) |
| 30900Q | Plug, Filler(HEV) |
| 30900R | Gasket, Drain Plug(HEV) |
| 30900S | Gasket, Filler Plug(HEV) |
| 31270 | Damper Assy, Transmission Input |
| 33183E | Damper, Dynamic |
| 33449F | Magnet, Transmission NO.1 |
| 35151J | Cover, Automatic Transmission Case |
| 35152A | Cover, Automatic Transmission Case, NO.2 |
| 35308D | Cover Sub-assy, Transmission Oil Pump |
| 35308E | Bolt, W/Washer (FOR TRANSMISSION OIL PUMP COVER) |
| 35308F | Ring, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER) |
| 35308G | Ring, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER) |
| 35308H | Plug (FOR TRANSMISSION OIL PUMP COVER) |
| 35351B | Rotor, Transaxle Oil Pump Drive |
| 35352A | Rotor, Transmission Oil Pump Driven |
| 35371 | Shaft, Oil Pump Drive |
| 35395D | Strainer, Transmission Oil |
| 35395E | Ring, O(FOR TRANSAXLE OIL STRAINER) |
| 35409C | Spring Sub-assy, Manual Detent |
| 35505K | Lever Sub-assy, Parking Lock, NO.1 |
| 35556J | Shaft, Parking Lock Pawl |
| 35556K | Spring, Retainer |
| 35556M | Spring, Torsion |
| 35557B | Pawl, Parking Lock |
| 35561A | Seal, Type T Oil(FOR PARKING LOCK SHAFT) |
| 35572B | Lever, Transmission, Outer |
| 35596B | Plate, Pawl Stopper |
| 35598A | Sleeve, Parking Lock |
| 35705B | Shim(FOR COUNTER DRIVEN GEAR) |
| 35710 | Shaft Assy, Input |
| 35710A | Seal, Type T Oil(FOR INPUT SHAFT) |
| 35719C | Gear, Planetary Sun |
| 35719D | Ring, Snap(FOR PLANETARY SUN GEAR) |
| 35753A | Receiver, Planetary Oil |
| 35760A | Gear Assy, Rear Planetary NO.1 |
| 35786C | Race, Thrust Bearing, NO.1 |
| 39195 | Damper, HV Transaxle Mass |
| 41310G | Gear Kit, Differential & Counter Driven |
| G1020 | Cover Assy, Motor Water Jacket, NO.1 |
| G1020A | Cover Assy, Motor Water Jacket, NO.2 |
| G2100A | Shim(FOR DIFFERENTIAL CASE RH) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
