Toyota Camry HV (NAP)

2006-10 → 2011-09 · chassis AHV40 · catalogue 288410 · United States

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

22 part groups · 3 illustrations

Illustrations

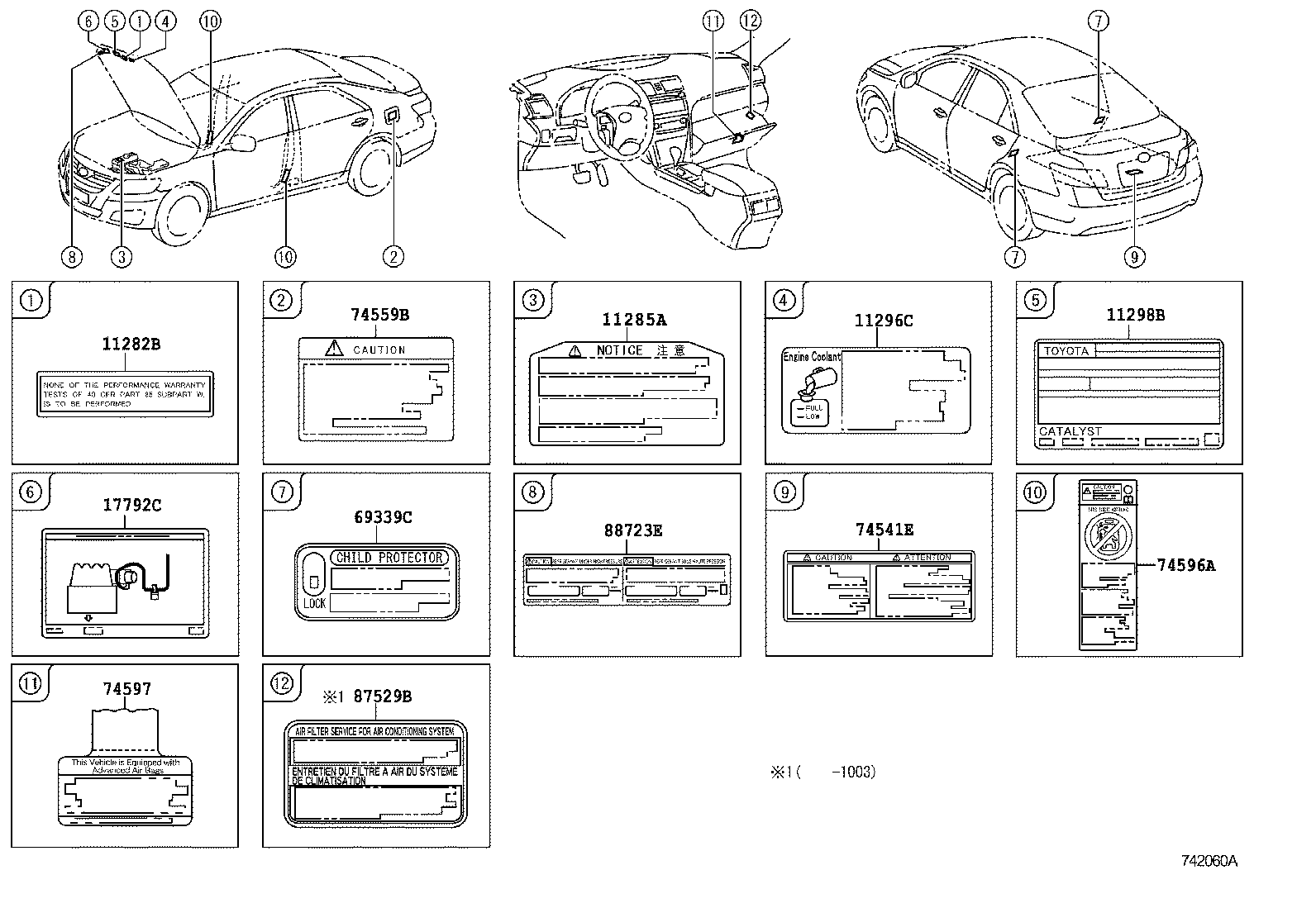

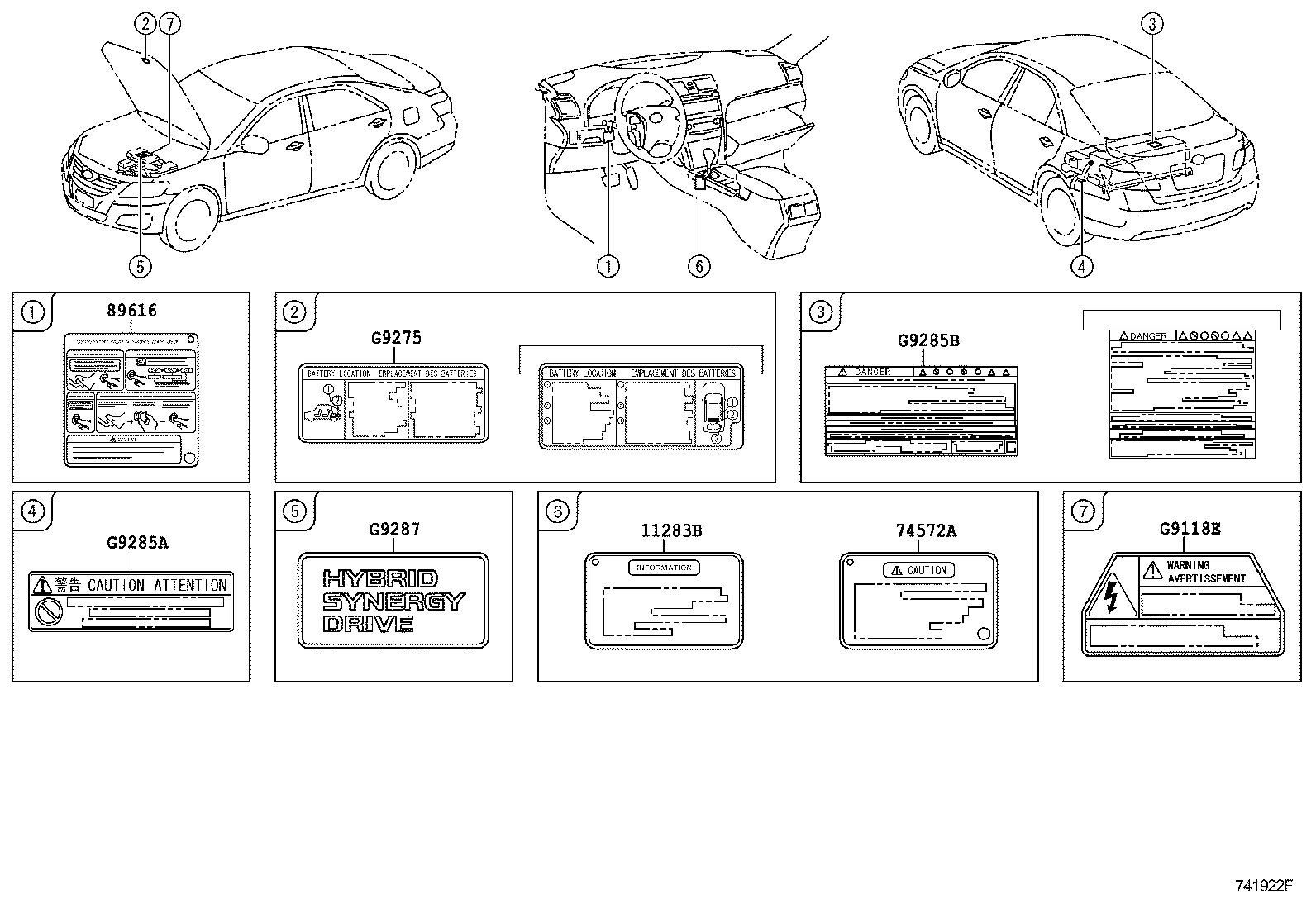

Figure 746132 746132 2006-10 → — Figure 742060A 742060A 2006-10 → — Figure 741922F 741922F 2006-10 → —

Part groups

PNCDescription
11282B Label, Loaded Testing Caution
11283B Label, Leak Detection Pump Information
11285A Label, Coolant System Notice
11293D Label, Engine Caution
11296C Label, Engine Service Information
11298B Label, Emission Control Information
16793E Label, Cooling Fan Caution
17792C Label, Engine Vacuum Hose Information
69339C Label, Child Protector Information
74541E Plate, Compact Spare Tire Caution
74559B Label, Fuel Information
74572A Label, Fuel Inlet Operational Information
74596A Label, Side Airbag Caution
74597 Label, Driver & Passenger Airbag Caution
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
89616 Label, Push Start Information
G9118E Label, Electric Vehicle Unit Controller Caution, NO.1
G9275 Label, Battery Caution, NO.1
G9285A Label, HV Battery Caution, NO.1
G9285B Label, HV Battery Caution, NO.2
G9287 Plate, Inverter Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
