Toyota Camry

2011-09 → 2016-06 · chassis ASV50L-S***** · catalogue 28A410 · United States

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

12 part groups · 2 illustrations

Illustrations

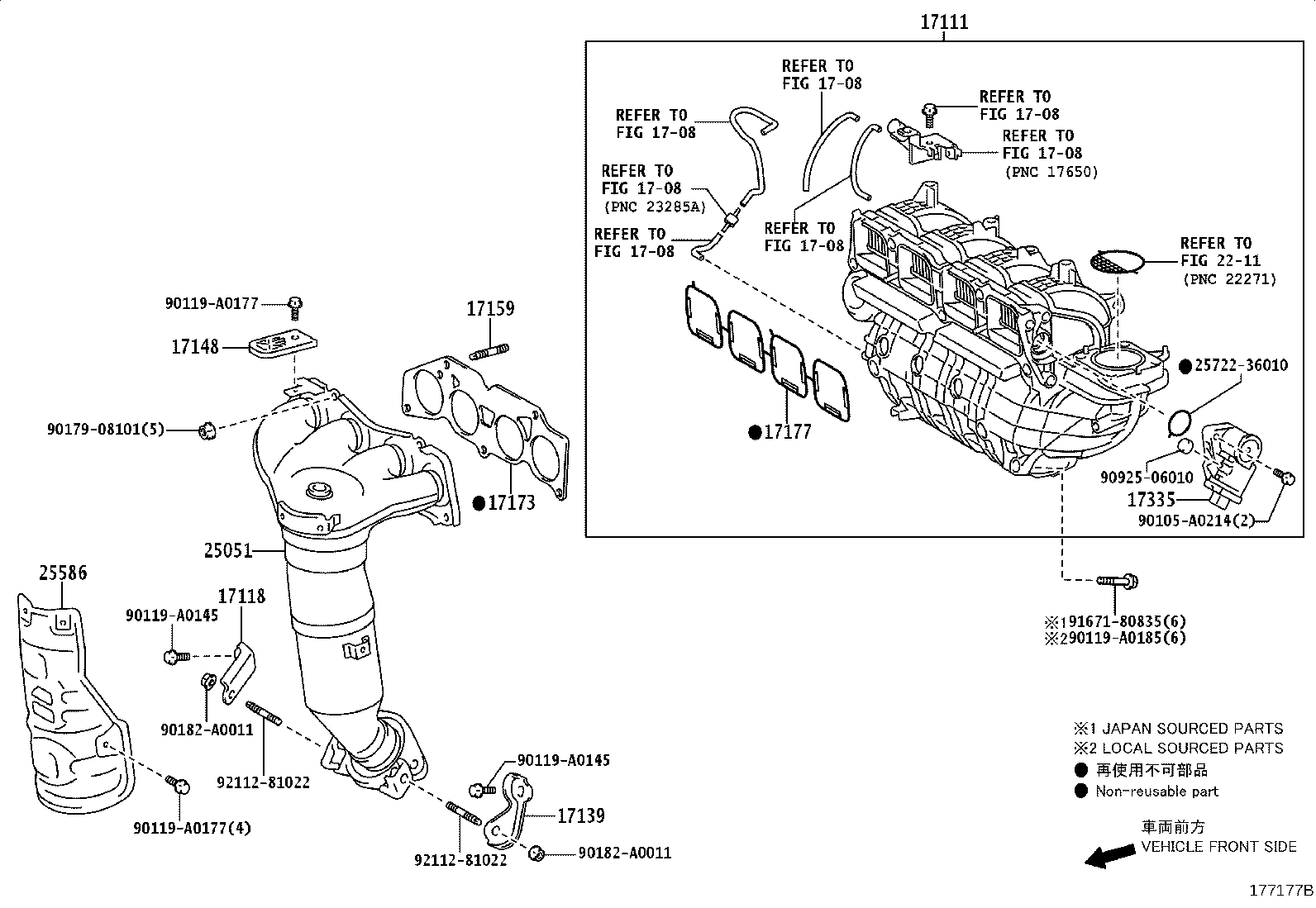

Figure 177174B 177174B 2011-09 → — Figure 177177B 177177B 2011-09 → —

Part groups

PNCDescription
17111 Manifold, Intake
17118 Stay, Manifold
17139 Stay, Manifold, NO.2
17148 Plate, Exhaust Manifold(FOR EGR INLET)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17335 Actuator, Intake Air Control Valve
25051 Converter Sub-assy, Exhaust Manifold
25586 Insulator, Manifold Converter, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
