Toyota Camry

2011-09 → 2016-06 · chassis ASV50L-S***** · catalogue 28A410 · United States

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

16 part groups · 6 illustrations

Illustrations

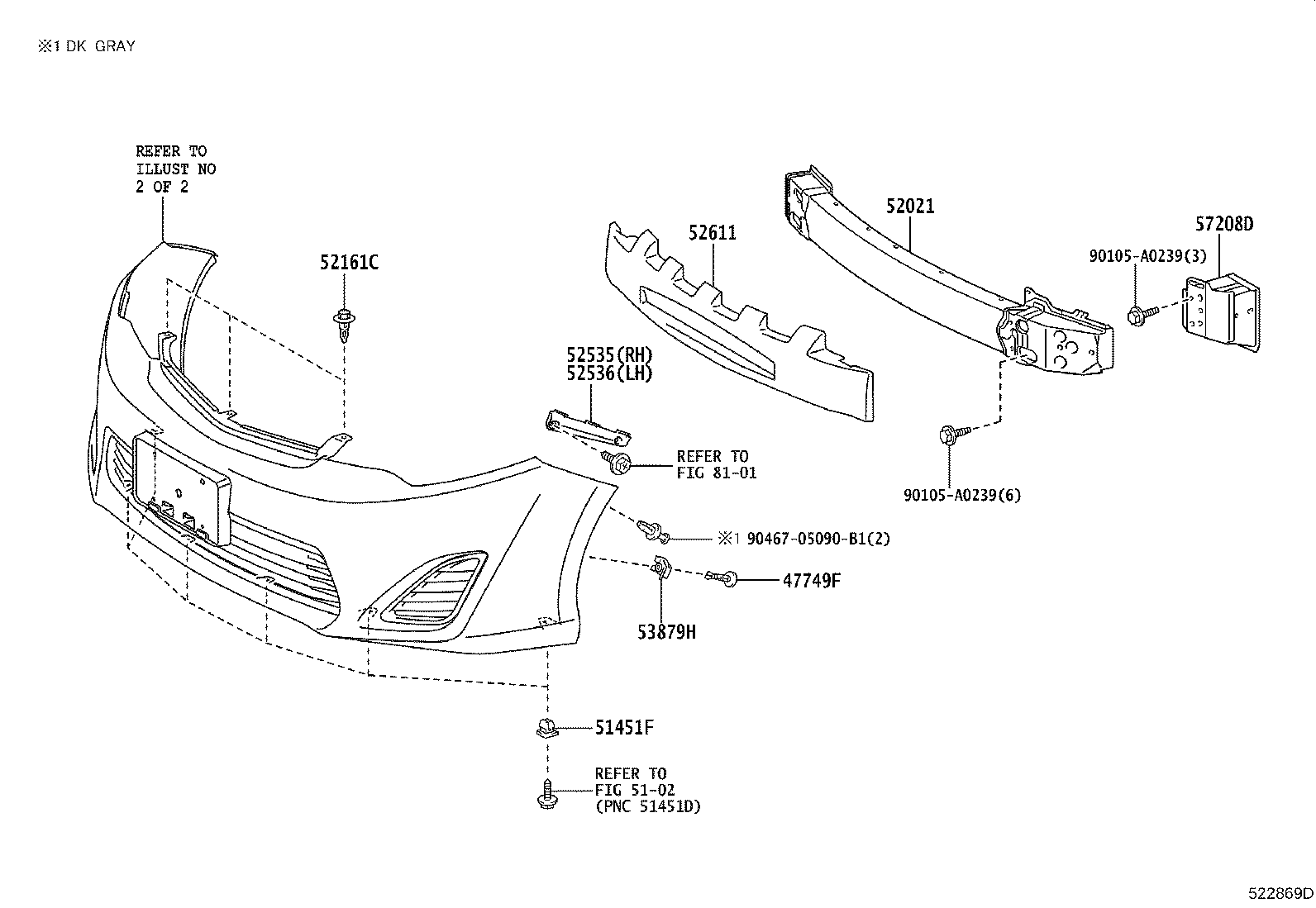

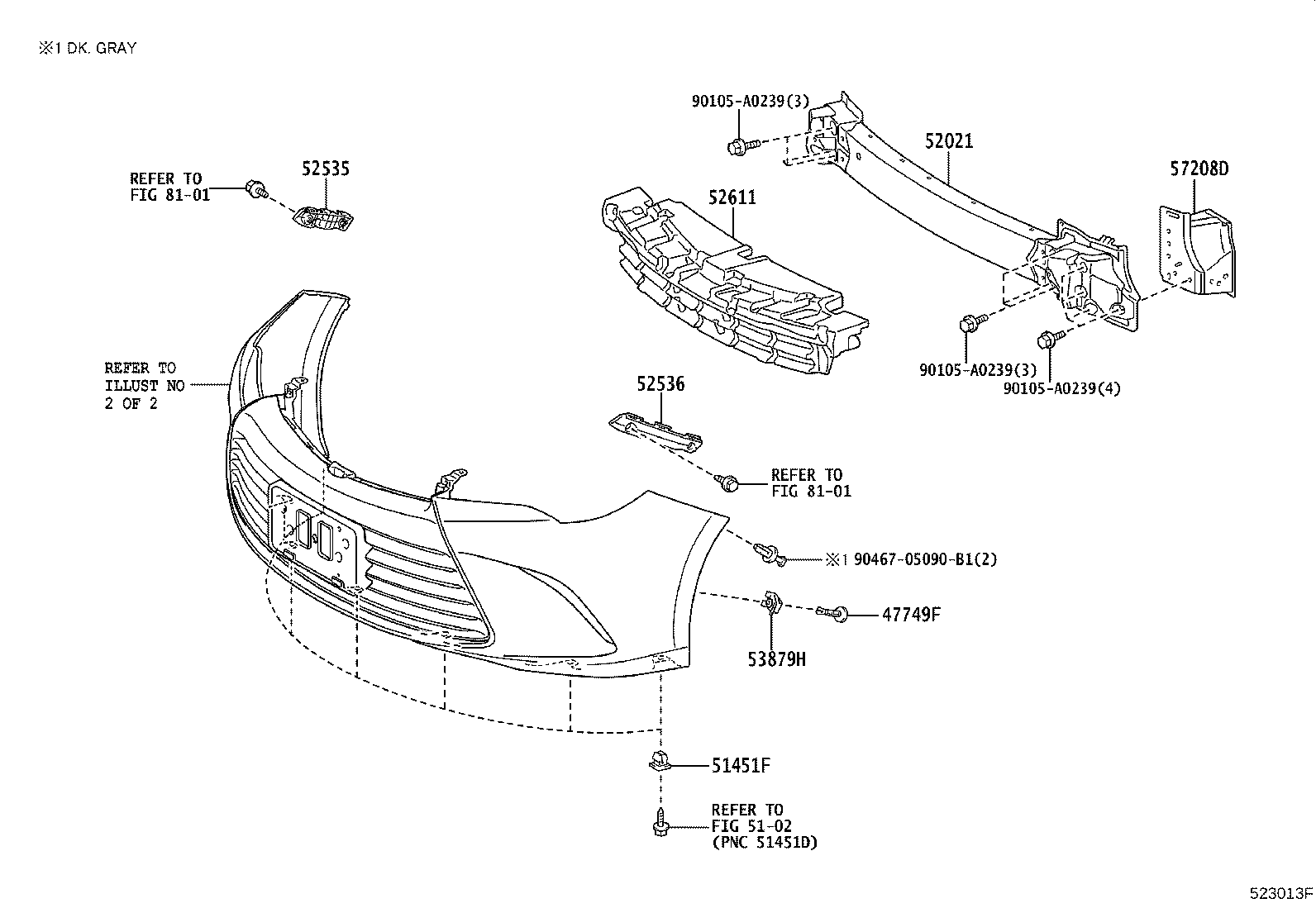

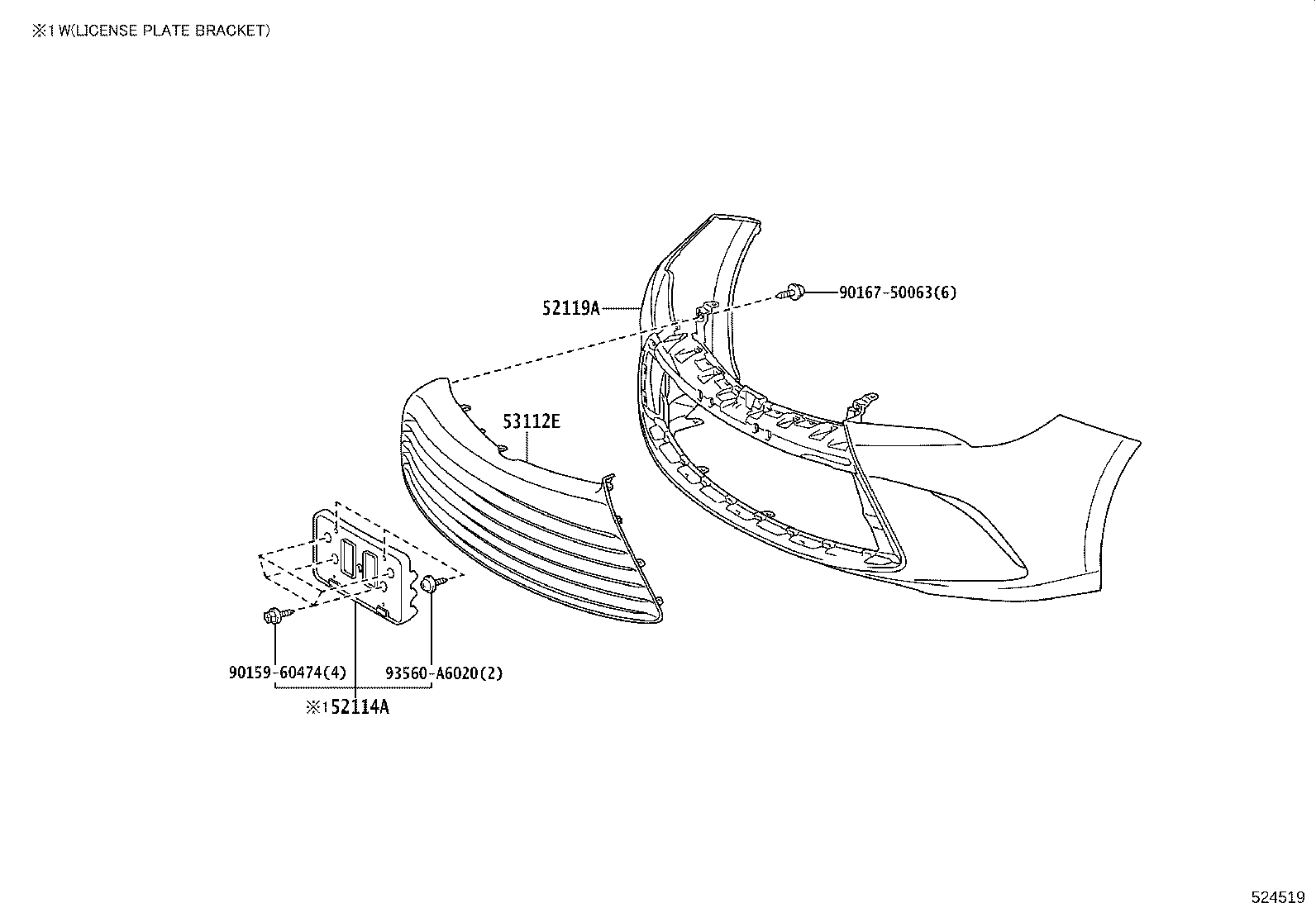

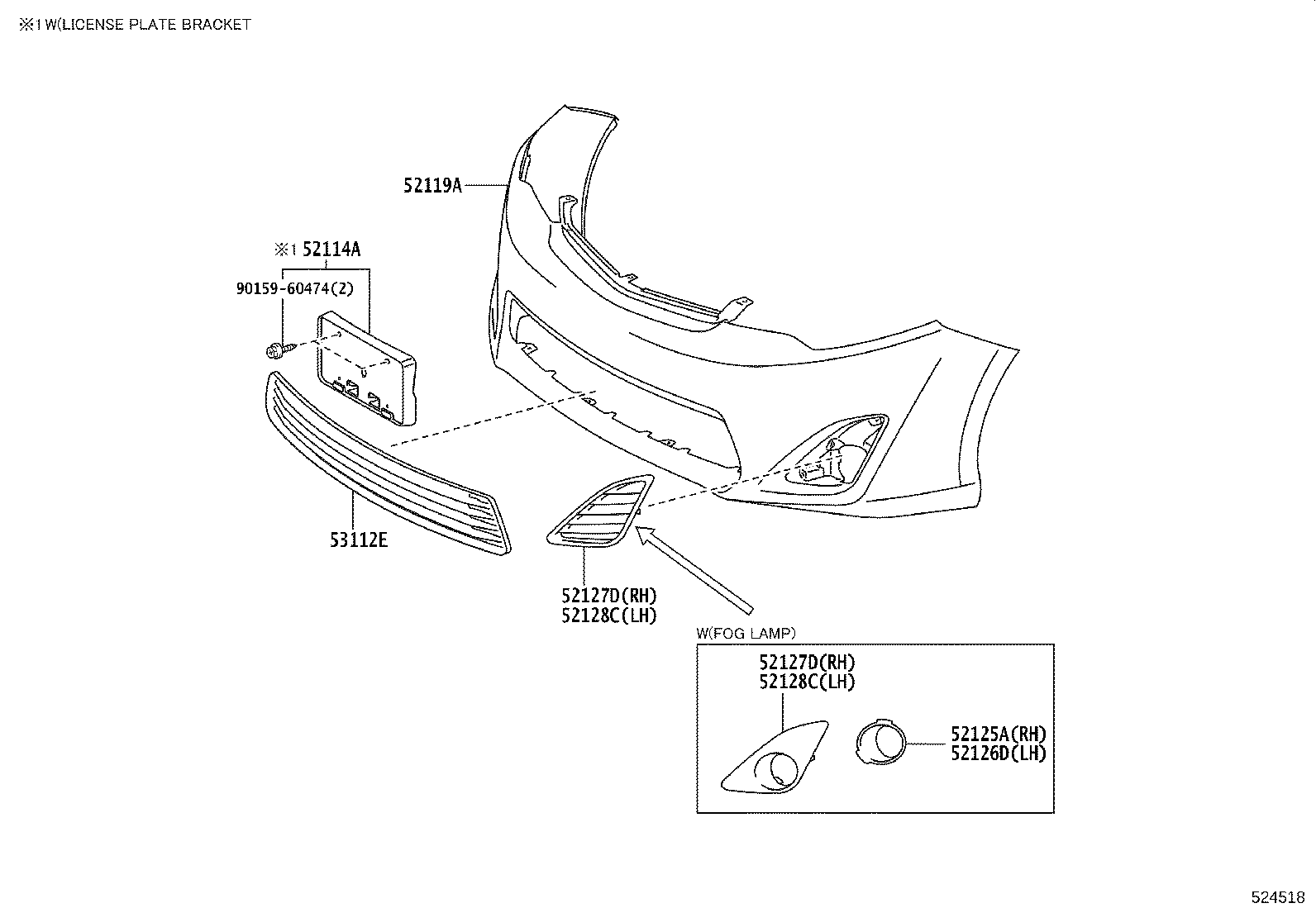

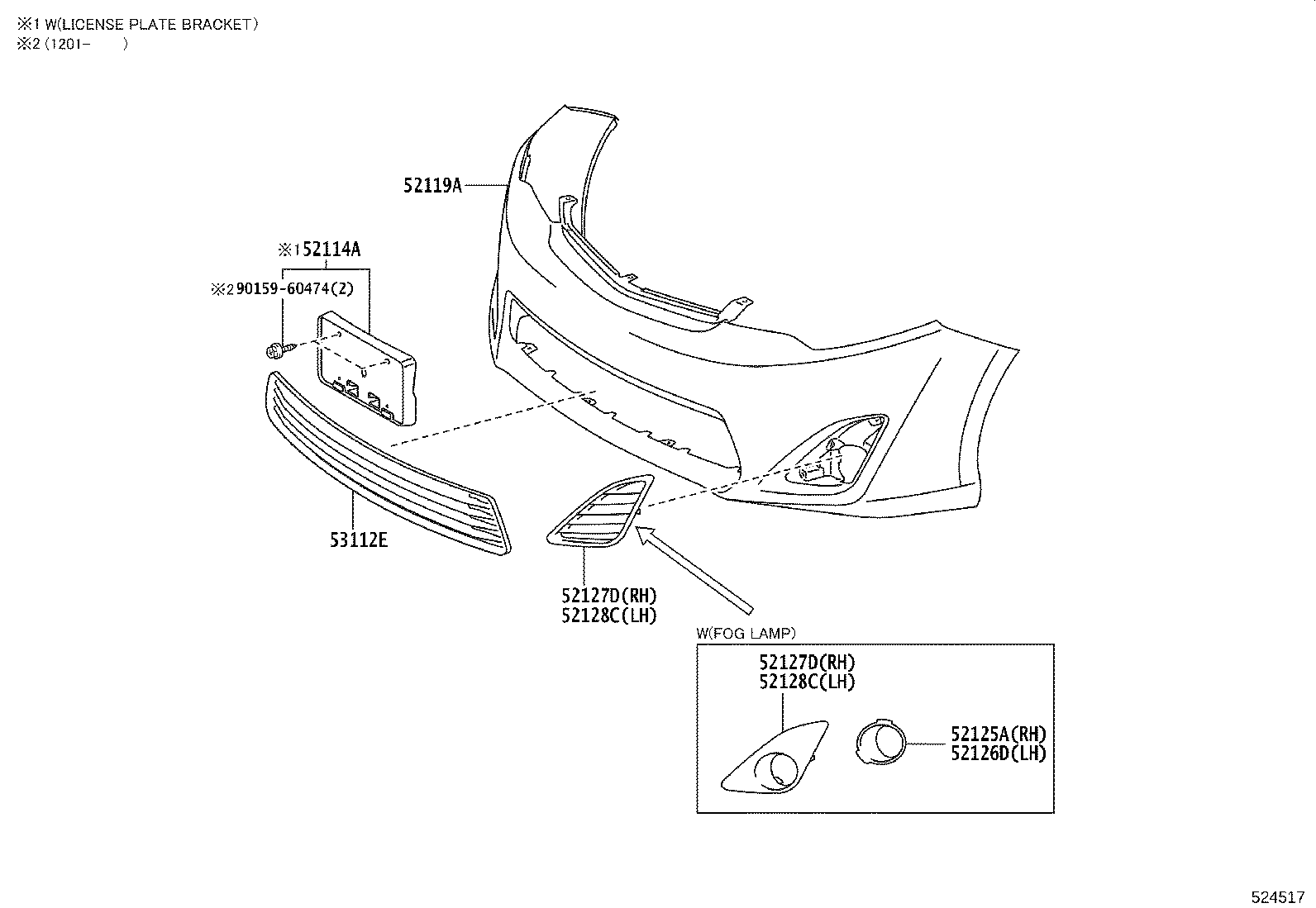

Figure 522447E 522447E 2011-09 → 2013-12 Figure 524517 524517 2011-09 → 2013-12 Figure 522869D 522869D 2013-12 → 2014-09 Figure 524518 524518 2013-12 → 2014-09 Figure 523013F 523013F 2014-09 → — Figure 524519 524519 2014-09 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
51451F Grommet, NO.1
52021 Reinforcement Sub-assy, Front Bumper
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52125A Bracket, Fog Lamp Mounting, RH
52126D Bracket, Fog Lamp Mounting, LH
52127D Cover, Front Bumper Hole, RH
52128C Cover, Front Bumper Hole, LH
52161C Piece, Front Bumper
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
53112E Grille, Radiator, Lower NO.1
53879H Retainer, Front Fender Liner
57208D Spacer Sub-assy, Front Bumper Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
