Toyota Camry

2011-09 → 2016-06 · chassis ASV50L-S***** · catalogue 28A410 · United States

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

12 part groups · 2 illustrations

Illustrations

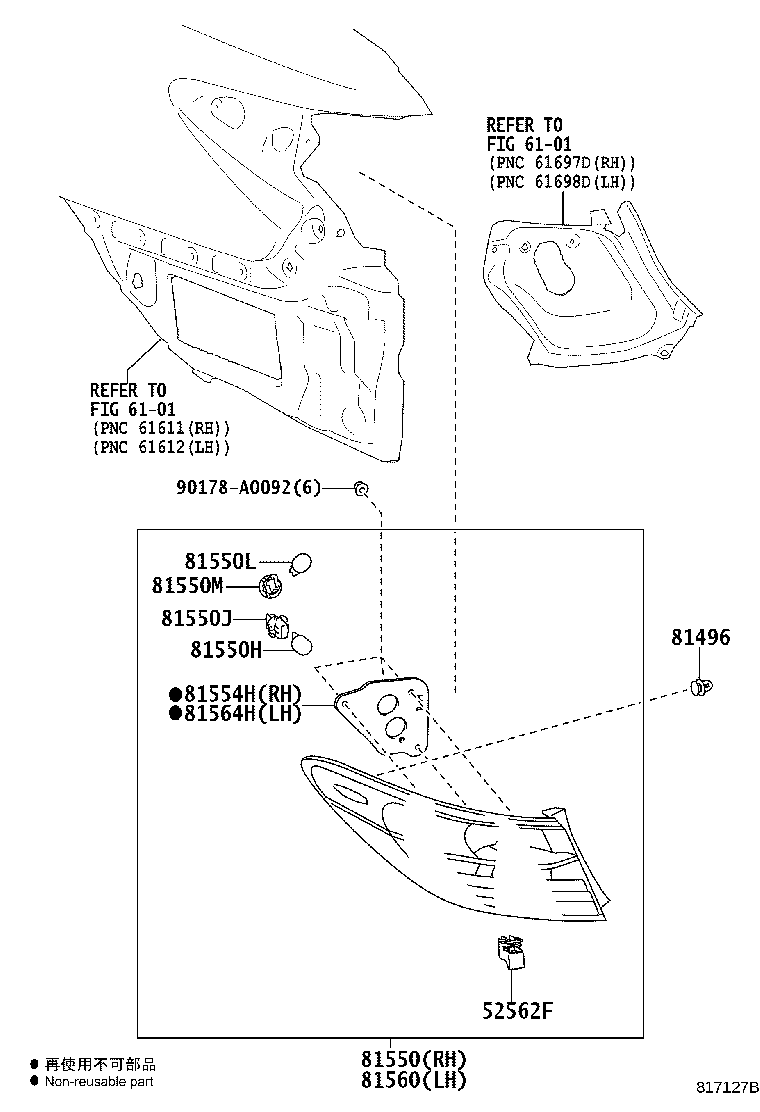

Figure 815782A 815782A 2011-09 → 2014-09 Figure 817127B 817127B 2014-09 → —

Part groups

PNCDescription
52562F Retainer, Rear Bumper, Upper Side
81496 Guide, Rear Combination Lamp
81550 Lamp Assy, Rear Combination, RH
81550H Bulb, Tail & Stop Lamp
81550J Socket, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550M Socket, Rear Turn Signal Lamp
81550S Bulb, Rear Side Marker Lamp
81550V Socket, Rear Side Marker Lamp
81554H Packing, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81564H Packing, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
