Toyota Camry

2011-09 → 2016-06 · chassis ASV50L-S***** · catalogue 28A410 · United States

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

15 part groups · 3 illustrations

Illustrations

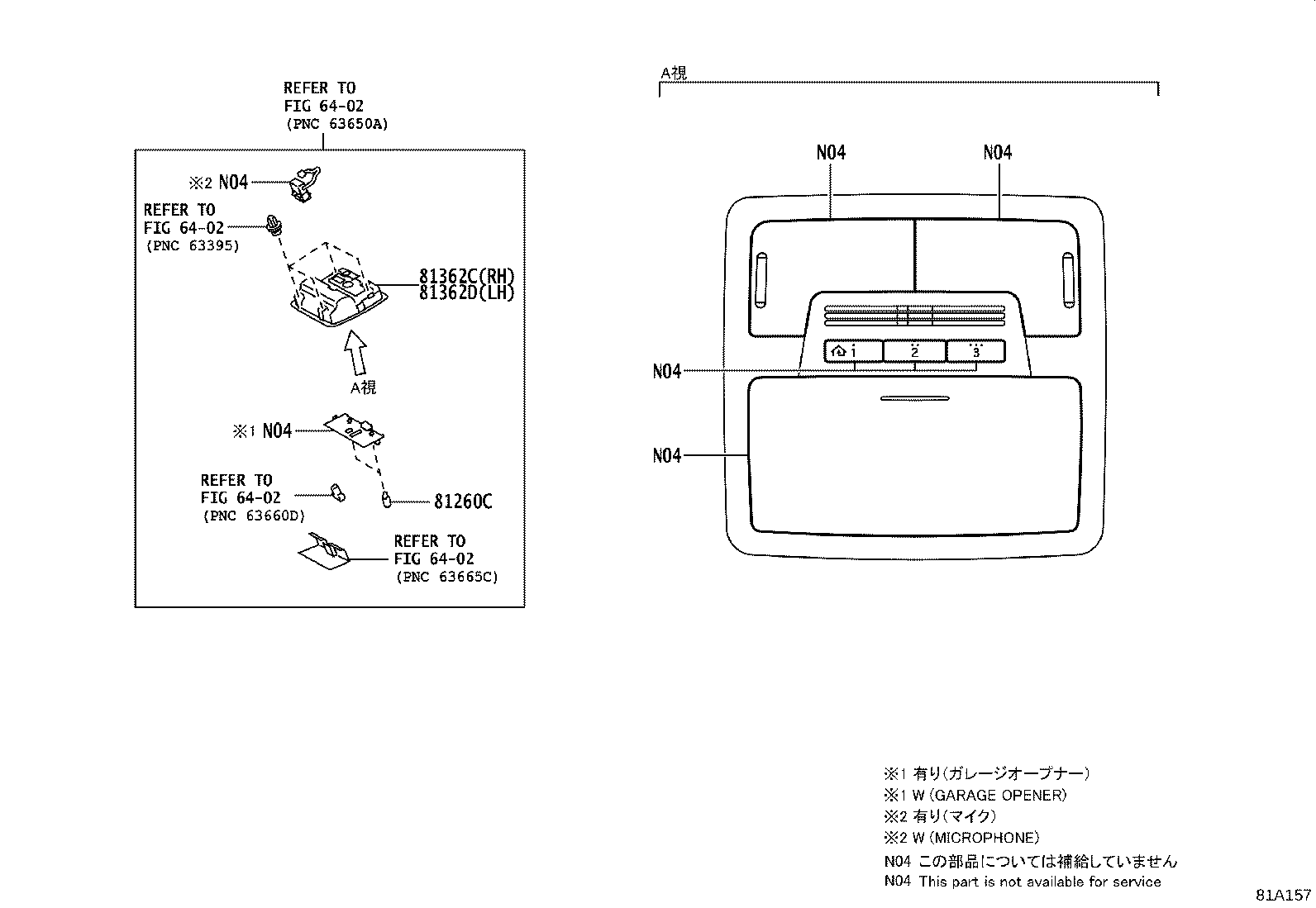

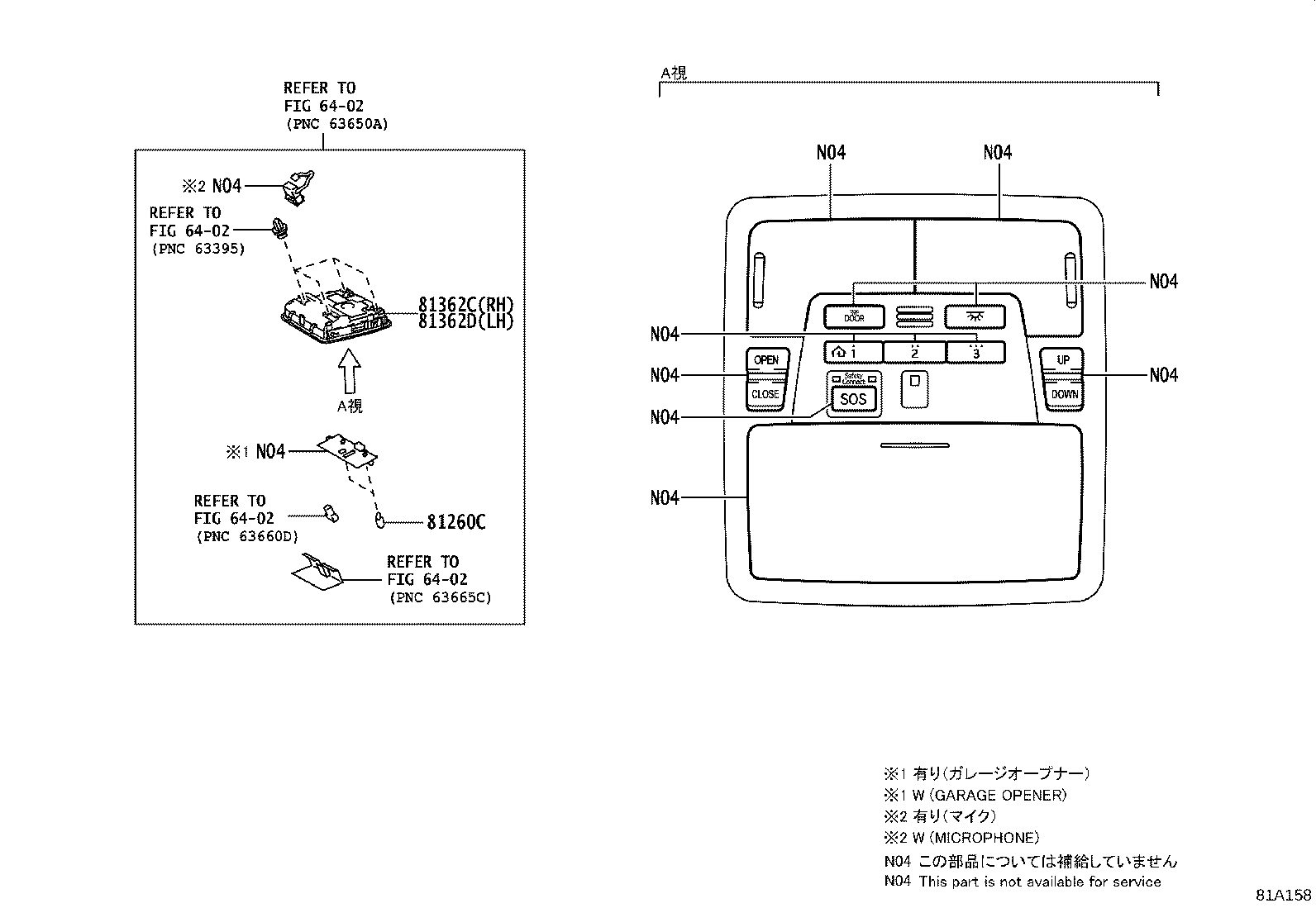

Figure 815788D 815788D 2011-09 → — Figure 81A157 81A157 2011-09 → — Figure 81A158 81A158 2011-09 → —

Part groups

PNCDescription
81230B Bulb(FOR COURTESY LAMP)
81230M Lamp Assy, Courtesy, RH
81230N Lamp Assy, Courtesy, LH
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81249 Switch, Room Lamp
81260C Bulb(FOR MAP LAMP)
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
81360T Lamp Assy, Spot
81360U Bulb, Spot Lamp
81362C Lens, Interior Illumination Lamp, RH
81362D Lens, Interior Illumination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
