Toyota Camry

2011-09 → 2016-06 · chassis ASV50L-S***** · catalogue 28A410 · United States

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

8 part groups · 3 illustrations

Illustrations

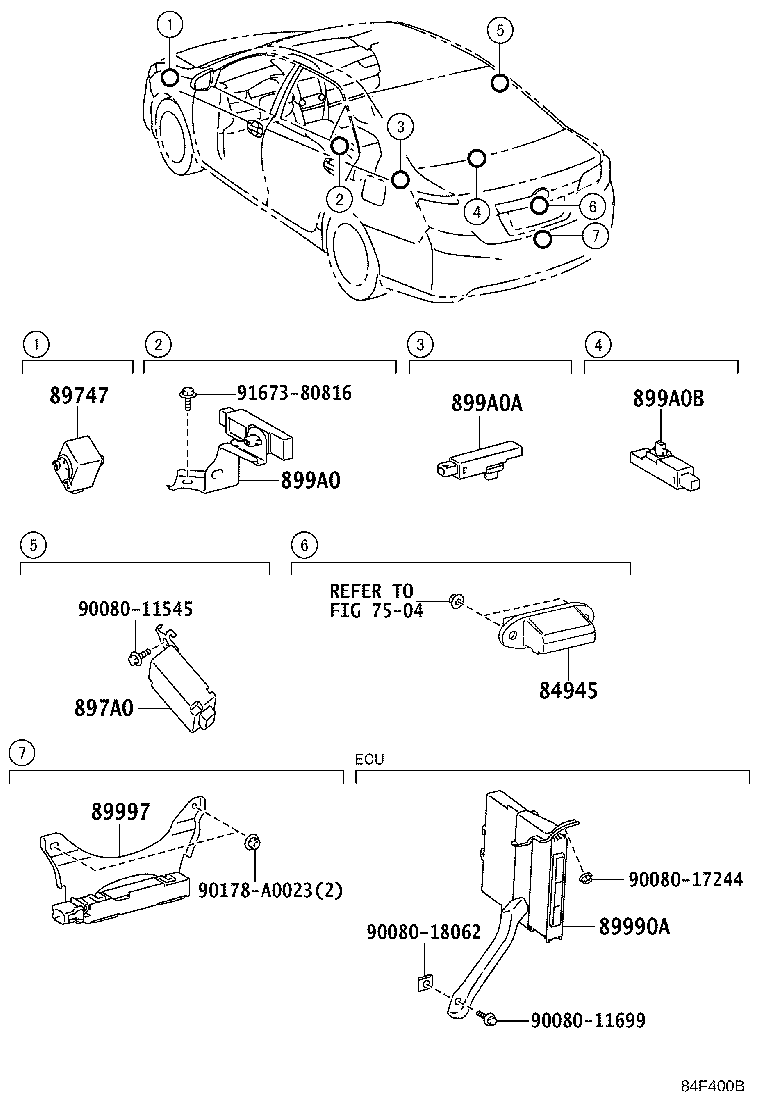

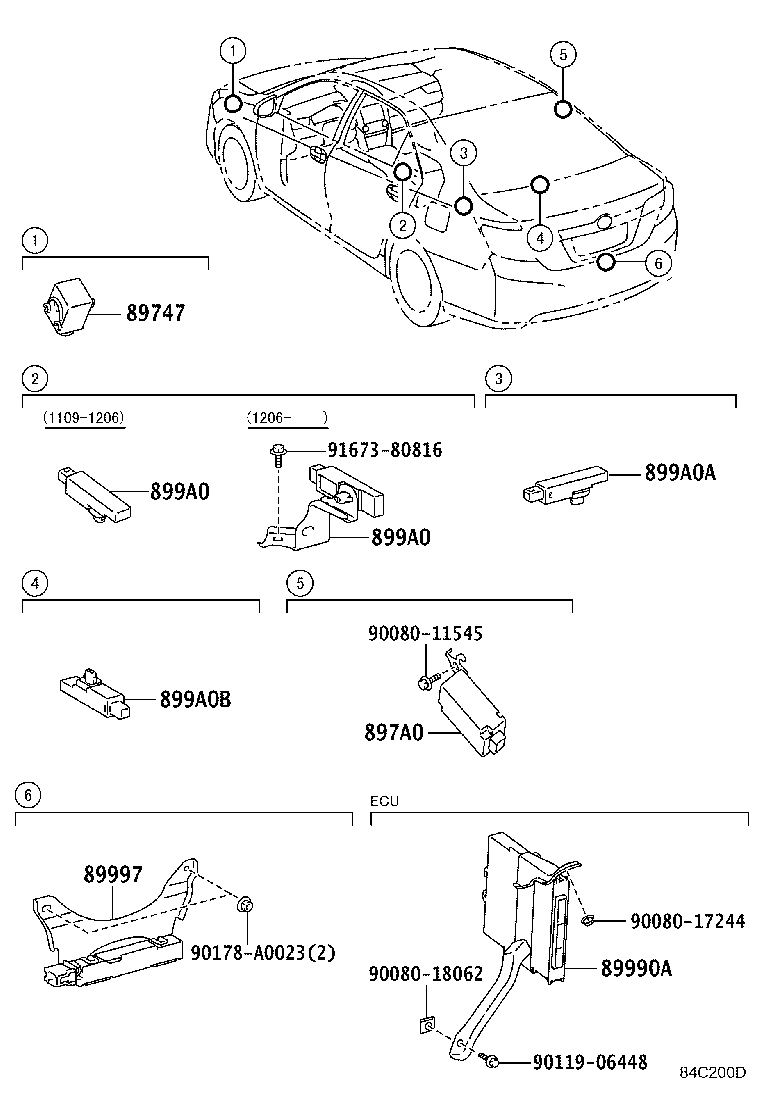

Figure 84C199 84C199 2011-09 → — Figure 84C200D 84C200D 2011-09 → 2014-09 Figure 84F400B 84F400B 2014-09 → —

Part groups

PNCDescription
84945 Switch, Luggage Electrical Key
89747 Buzzer, Wireless Door Lock
897A0 Receiver Assy,Door Control & Tire Pressure Monitoring System
89990A Computer Assy, Smart Key
89997 Antenna, Electrical Key
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0A Antenna Assy, Indoor Electrical Key, NO.2
899A0B Antenna Assy, Indoor Electrical Key, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
