Toyota Camry

2011-09 → 2016-06 · chassis ASV50L-S***** · catalogue 28A410 · United States

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

10 part groups · 2 illustrations

Illustrations

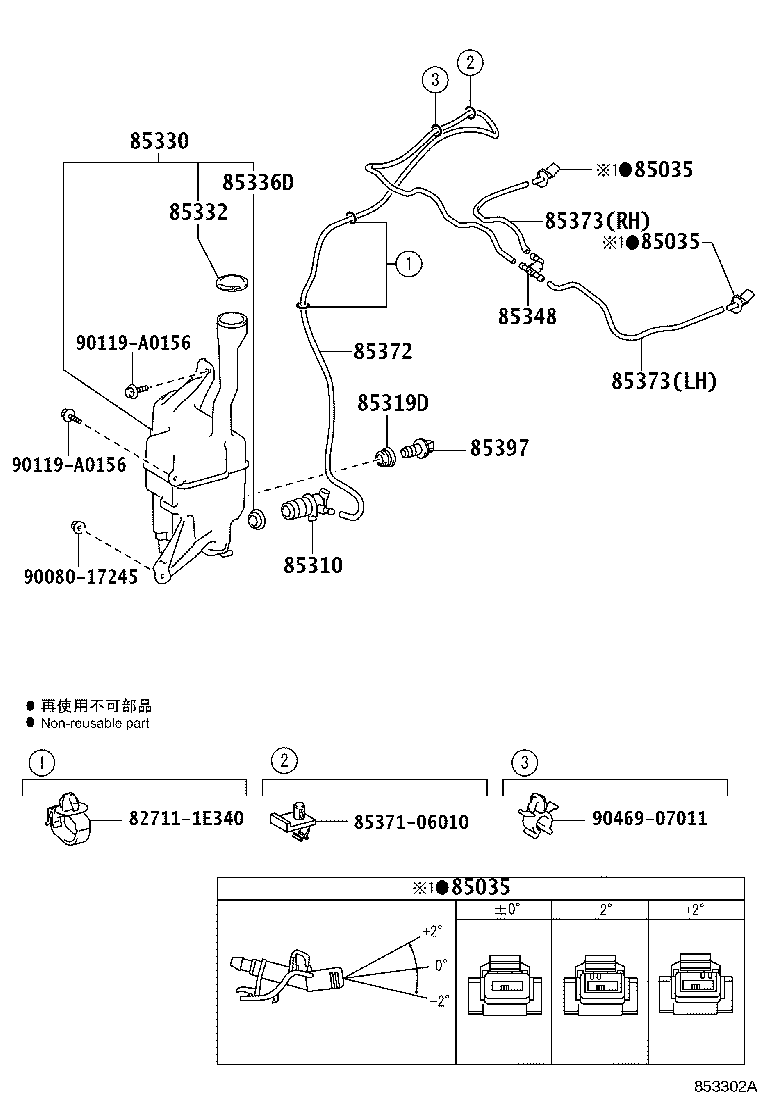

Figure 852682D 852682D 2011-09 → 2014-09 Figure 853302A 853302A 2014-09 → —

Part groups

PNCDescription
85035 Nozzle Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85319D Packing, Front Washer
85330 Jar Assy, Windshield Washer
85332 Cap, Windshield Washer Jar
85336D Packing, Windshield Washer Jar
85348 Joint, Windshield Washer Hose, NO.1
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85397 Switch Assy,Level Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
