Toyota Camry
2011-09 → 2016-06 · chassis ASV50L-S***** · catalogue 28A410 · United States
Supported model
Data version 2016-12
Navigation & Front Monitor Display

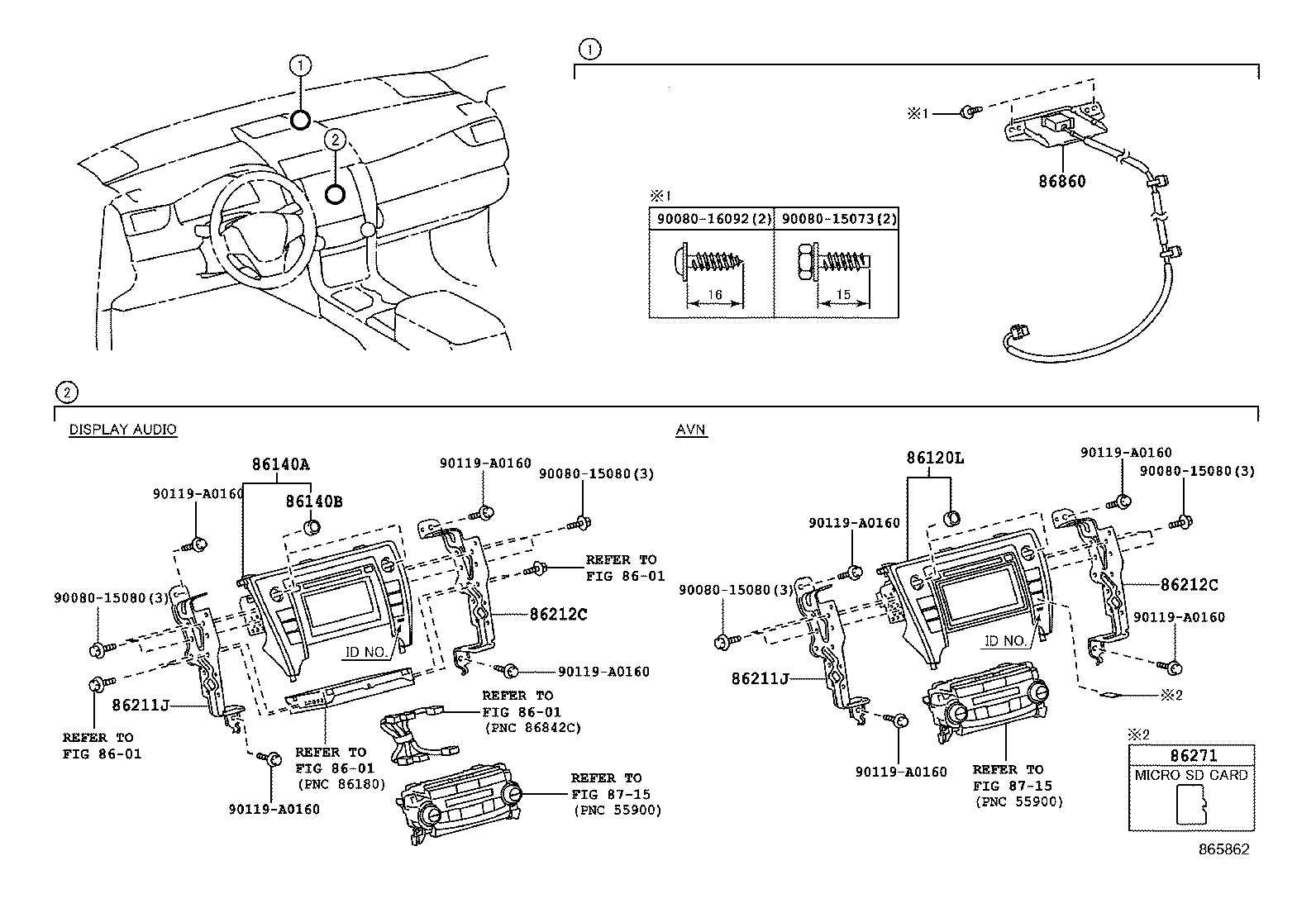

9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86120L | Receiver Assy, Navigation |
| 86120P | Knob, Navigation Receiver Switch |
| 86140A | Receiver Assy, Radio & Display |
| 86140B | Knob, Radio & Display Receiver Switch |
| 86211J | Bracket, Radio Receiver, NO.1 |
| 86212C | Bracket, Radio Receiver, NO.2 |
| 86271 | Disc, Disc Player |
| 86730A | Microphone Assy, Telephone |
| 86860 | Antenna Assy, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
