Toyota Camry

2011-09 → 2016-06 · chassis ASV50L-S***** · catalogue 28A410 · United States

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

12 part groups · 2 illustrations

Illustrations

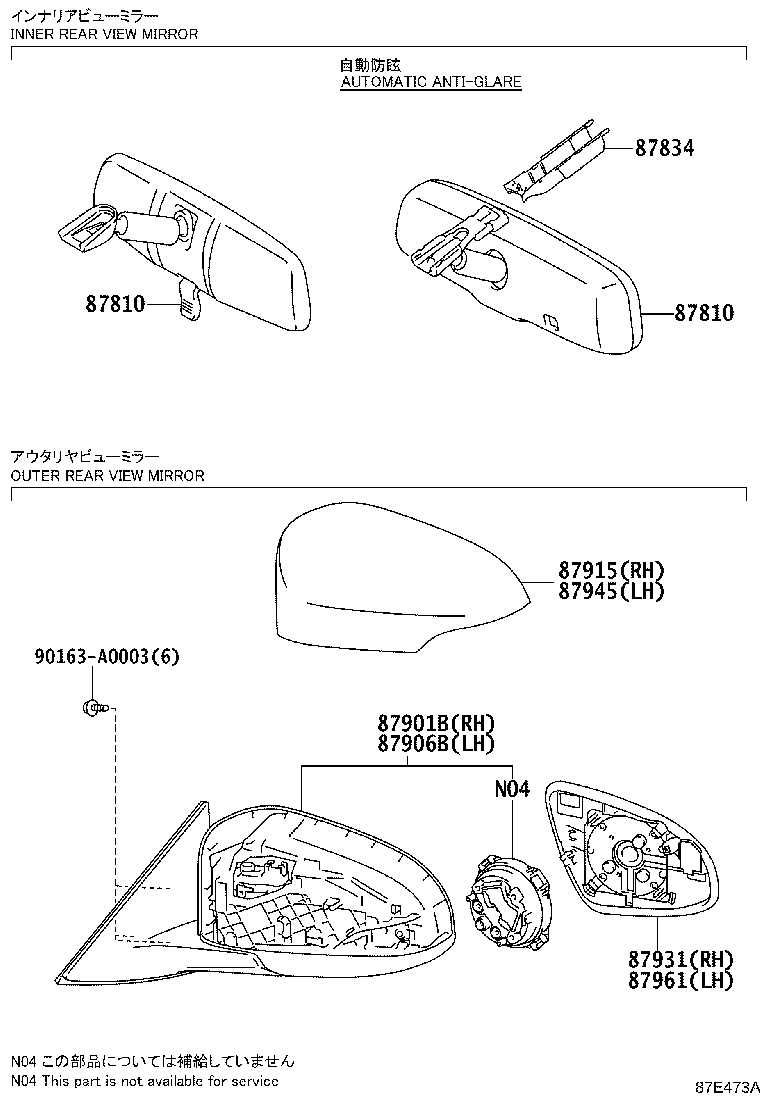

Figure 87C007B 87C007B 2011-09 → 2014-09 Figure 87E473A 87E473A 2014-09 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87834 Cover, Inner Rear View Mirror Stay Holder
87901B Mirror Sub-assy, Outer Rear View, RH
87906B Mirror Sub-assy, Outer Rear View, LH
87908B Mirror Sub-assy, RH
87909B Mirror Sub-assy, LH
87915 Cover, Outer Mirror, RH
87917B Mirror, Outer Rear View, RH
87931 Outer Mirror, RH
87945 Cover, Outer Mirror, LH
87947B Mirror, Outer Rear View, LH
87961 Mirror Outer, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
