Heating & Air Conditioning - Control & Air Duct

23 part groups · 5 illustrations

Illustrations

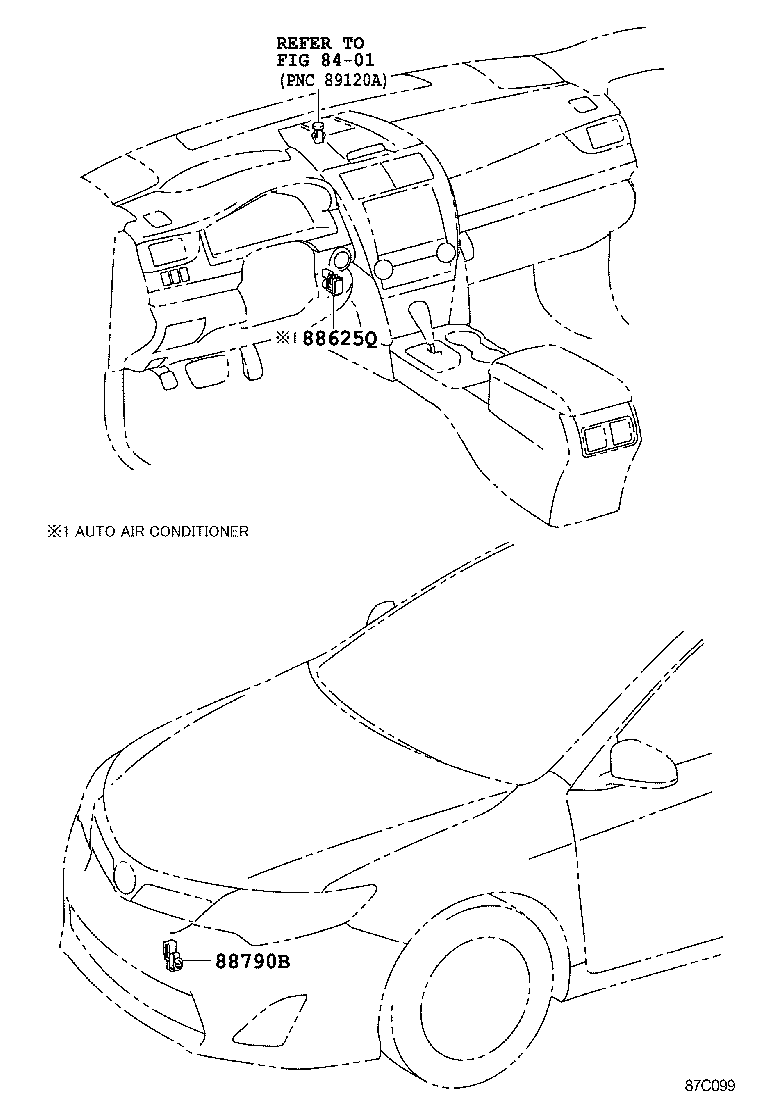

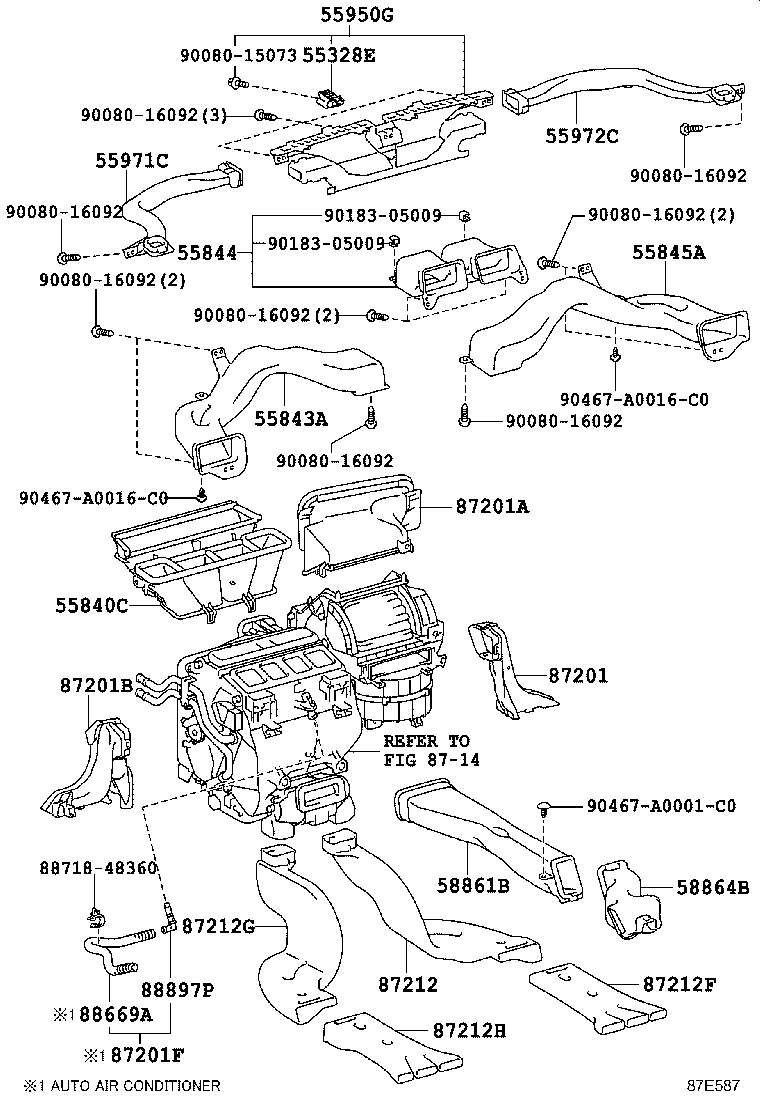

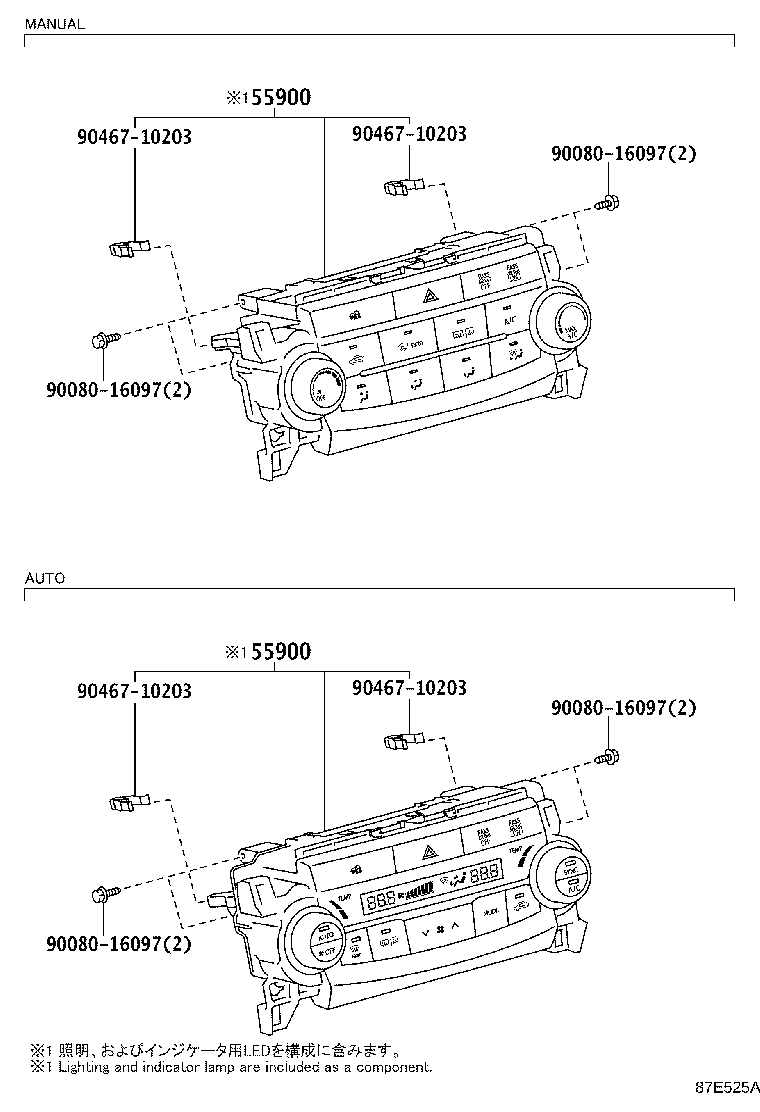

Figure 87C097A 87C097A 2011-09 → 2014-09 Figure 87E525A 87E525A 2014-09 → — Figure 87C098A 87C098A 2011-09 → 2014-09 Figure 87E587 87E587 2014-09 → — Figure 87C099 87C099 2011-09 → —

Part groups

PNCDescription
55328E Pin, Instrument Panel, NO.1
55840C Duct Assy, Heater TO Register, NO.6
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
58861B Duct, Console Box, NO.1
58864B Duct, Console Box, NO.4
87201 Duct Sub-assy, Air, NO.1
87201A Duct Sub-assy, Air
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87212 Duct, Air, Rear NO.1
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
87212H Duct, Air, Rear NO.4
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88669A Hose (FOR COOLER THERMISTOR)
88790B Thermistor Assy
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
