Toyota Mirai

2015-06 → 2020-05 · chassis JPD10 · catalogue 28B410 · United States

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

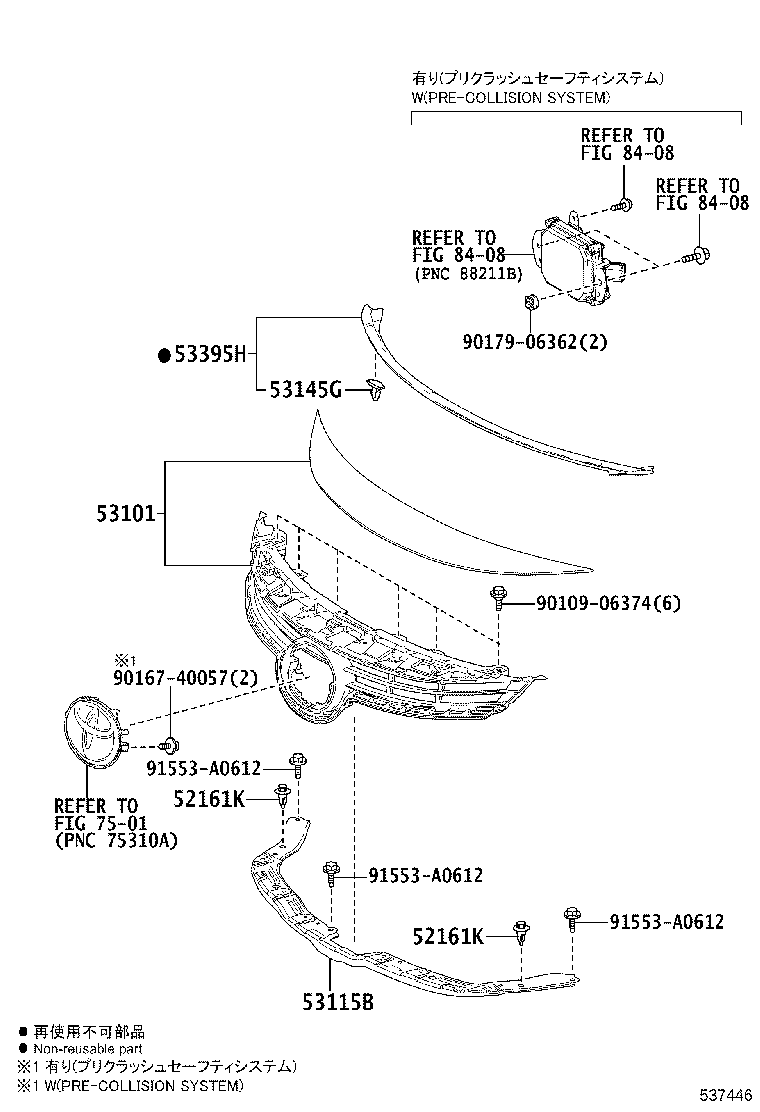

Exploded illustration 537446 7501 — not listed in this catalogue 52161K — PIECE, FRONT BUMPER (1 parts) 52161K — PIECE, FRONT BUMPER (1 parts) 53101 — GRILLE SUB-ASSY, RADIATOR (13 parts) 53115B — BRACKET, RADIATOR GRILLE (1 parts) 53145G — CLIP, RADIATOR GRILLE (1 parts) 53395H — SEAL, HOOD TO RADIATOR GRILLE (1 parts) 9010906374 — not listed in this catalogue 9016740057 — not listed in this catalogue 91553A0612 — not listed in this catalogue 91553A0612 — not listed in this catalogue 91553A0612 — not listed in this catalogue 9017906362 — not listed in this catalogue 8408 — not listed in this catalogue 8408 — not listed in this catalogue 8408 — not listed in this catalogue
537446 · 6 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
52161K — Piece, Front Bumper
52161-16010 Piece, Front Bumper
2015-06 → 2020-05 ended
JPD10 —
53101 — Grille Sub-assy, Radiator
53101-62900-A0 note Grille Sub-assy, Radiator
2015-06 → 2018-01 ended
JPD10 —
53101-62900-A1 note Grille Sub-assy, Radiator
2015-06 → 2018-11 ended
JPD10 —
53101-62900-B0 note Grille Sub-assy, Radiator
2015-06 → 2018-11 ended
JPD10 —
53101-62900-C0 note Grille Sub-assy, Radiator
2015-06 → 2018-11 ended
JPD10 —
53101-62900-D0 note Grille Sub-assy, Radiator
2015-06 → 2018-11 ended
JPD10 —
53101-62900-J0 note Grille Sub-assy, Radiator
2015-06 → 2018-11 ended
JPD10 —
53101-62900-J2 note Grille Sub-assy, Radiator
2015-06 → 2018-11 ended
JPD10 —
53101-62901-A1 note Grille Sub-assy, Radiator
2018-11 → 2020-05 ended
JPD10 —
53101-62901-B0 note Grille Sub-assy, Radiator
2018-11 → 2020-05 ended
JPD10 —
53101-62901-C0 note Grille Sub-assy, Radiator
2018-11 → 2020-05 ended
JPD10 —
53101-62901-D0 note Grille Sub-assy, Radiator
2018-11 → 2020-05 ended
JPD10 —
53101-62901-J0 note Grille Sub-assy, Radiator
2018-11 → 2020-05 ended
JPD10 —
53101-62901-J2 note Grille Sub-assy, Radiator
2018-11 → 2020-05 ended
JPD10 —
53115B — Bracket, Radiator Grille
53117-62020 Bracket, Radiator Grille
2015-06 → 2020-05 ended
JPD10 —
53145G — Clip, Radiator Grille
53145-60030 Clip, Radiator Grille
2015-06 → 2020-05 ended
JPD10 —
53395H — Seal, Hood TO Radiator Grille
53395-62010 Seal, Hood TO Radiator Grille
2015-06 → 2020-05 ended
JPD10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
