Front Bumper & Bumper Stay

23 part groups · 2 illustrations

Illustrations

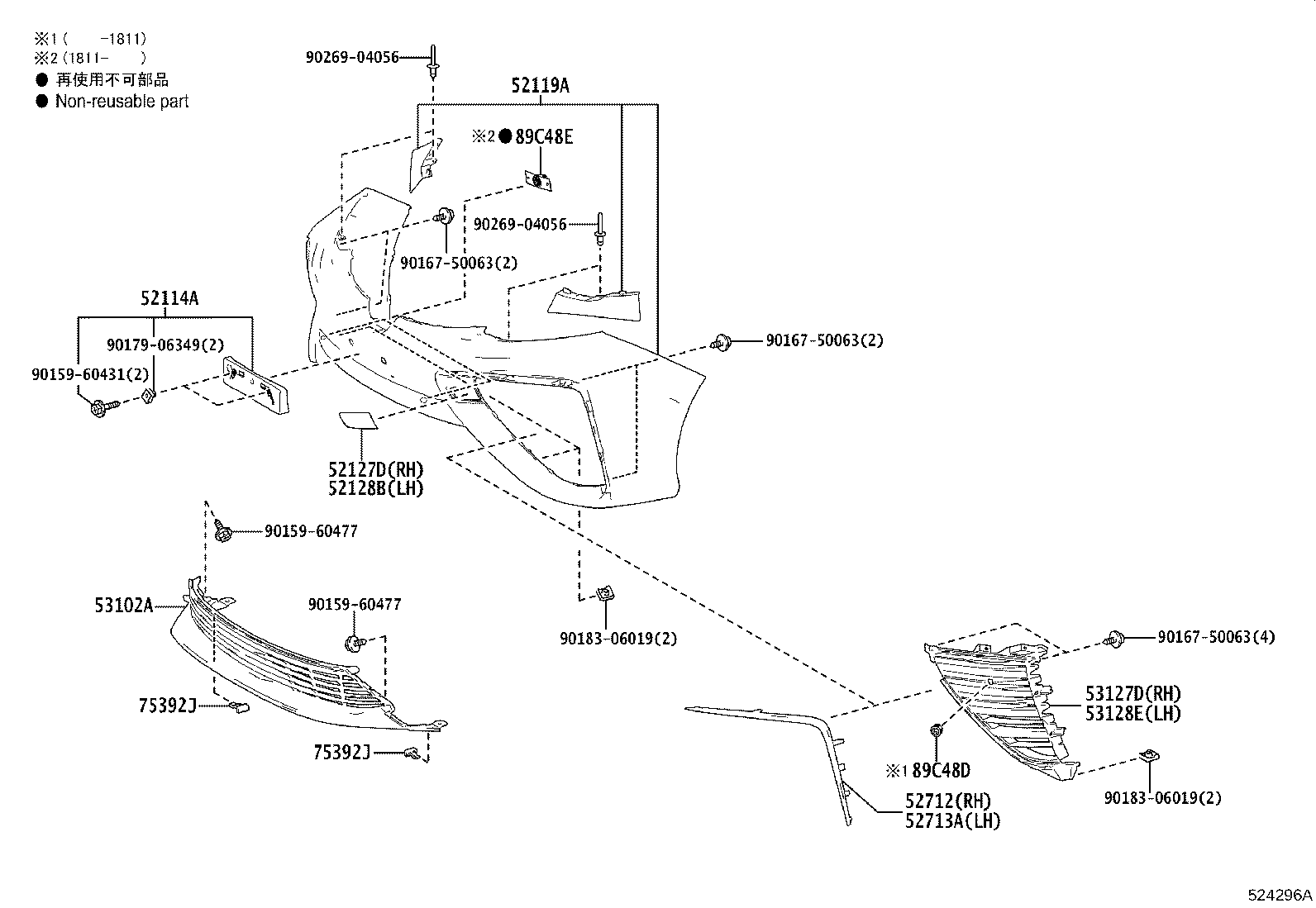

Figure 523149C 523149C 2015-06 → — Figure 524296A 524296A 2015-06 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
52021 Reinforcement Sub-assy, Front Bumper
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52119D Screw, NO.1
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52197E Bracket, Front Bumper Seal
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53102A Grille Sub-assy, Radiator, Lwr
53127D Grille, Radiator, Lower Side RH
53128E Grille, Radiator, Lower Side LH
53879H Retainer, Front Fender Liner
57013C Bracket Sub-assy, Front Side Member, RH
57014A Bracket Sub-assy, Front Side Member, LH
75392J Retainer, Outside Moulding
89C48D Retainer, Ultrasonic Sensor, Front Corner
89C48E Retainer, Ultrasonic Sensor, Front Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
