Toyota Mirai

2015-06 → 2020-05 · chassis JPD10 · catalogue 28B410 · United States

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

18 part groups · 2 illustrations

Illustrations

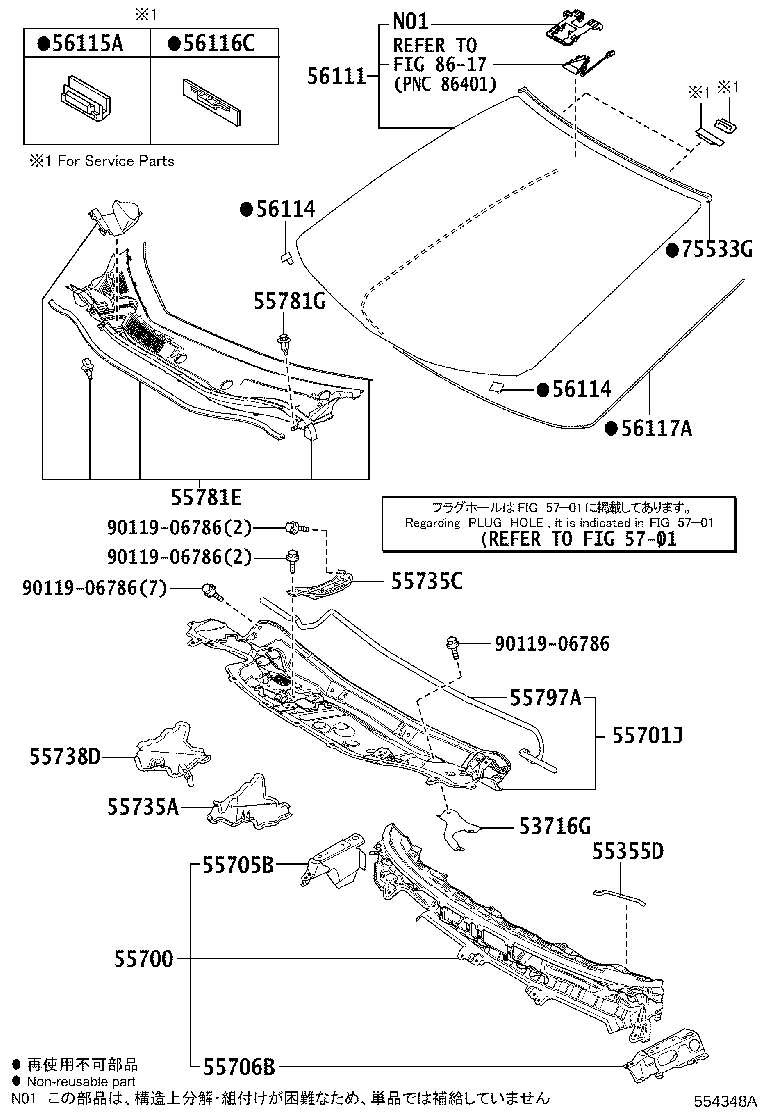

Figure 553465E 553465E 2015-06 → 2018-11 Figure 554348A 554348A 2018-11 → —

Part groups

PNCDescription
53716G Extension, Front Fender Apron, Rear LH
55355D Cushion, Instrument Panel, NO.1
55700 Panel Assy, Front
55701J Panel Sub-assy, Cowl Top, Outer
55705B Panel Sub-assy, Cowl Top Side, RH
55706B Panel Sub-assy, Cowl Top Side, LH
55735A Plate, Water Guard, LH
55735C Reinforcement, Cowl Body Mounting, RH
55738D Seal, Heater Air Duct Splash Shield, NO.2
55781E Louver Sub-assy, Cowl Top Ventilator
55781G Clip, Cowl Top Ventilator Louver
55797A Seal, Cowl Water Extract
56111 Glass, Windshield
56114 Retainer, Windshield Glass
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
75533G Moulding, Windshield, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
